3.5kva 48vdc Pure Sine Wave Inverter With 4 Of 200amps Batteries And 4 Of 300watts Panels
3.5kva 48vdc Pure Sine Wave Inverter With 4 Of 200amps Batteries And 4 Of 300watts Panels
Get an estimate on delivery to your location.
- Pay by card, bank transfer or USSD at checkout

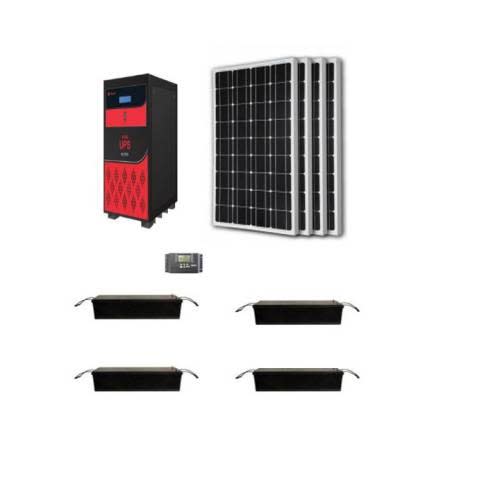

Mercury 3.5KVA Inverter, 4 of 200 amps batteries and 4 x high efficiency 300 watts Mono Solar Panels with Solar Charge Controller. This is a complete that will allow you to power your home with or without NEPA, day and night. The Pure Sine Wave with functionality is a generation ahead of the entire category. That’s because our breakthrough chip embedded sine wave’ technology delivers the same current as you get from your mains. The distinguishing features of this Mercury 3.5KVA inverter Pure Sine Wave are:
Sine Wave Output suitable for PC
Battery State Monitoring
DSP Based Inteiligent Control Circuit
ASIC Technology
Graphical (LED) / LCD Display (Message and Faults)
Great Power Saving
DSP Based Smart Charger
Automatic Power Factor Correction
Smarter Overload Senses & Short Circuit Protection

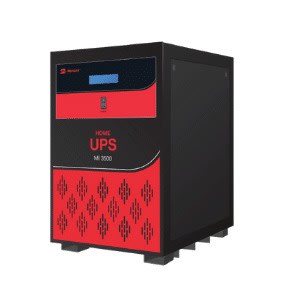

Mercury 3.5kva Inverter Specification
Voltage Range 180 VAC – 265VAC ± 5 VAC (UPS Mode)
100 VAC – 280 VAC ± 15 VAC (NOR Mode)
Line Low Detection 180V ± 5V (UPS Mode) / 100V ± 15V (NOR Mode)
Line Low Comeback 190V ± 5V (UPS Mode) / 110V ± 10V (NOR Mode)
Line Low Detection 265V ± 5V (UPS Mode) / 280V ± 15V (NOR Mode)
Line Low Comeback 255V ± 5V (UPS Mode) / 270V ± 10V (NOR Mode)
Frequency Transfer Input Frequency 45-55 Hz
Characteristics (AC)
Inverter Full Load Power 2800
Power Factor 0.8 factor (on resistive load)
On-Line Mode Sine Wave
Battery Mode Sine Wave
On-Line Output voltage Follow the Line Voltage
Battery Mode Output Voltage 200 VAC ± 10%
Transfer Time (No-Load) <15 ms
The frequency at Battery Mode 50 Hz ± 1 Hz
Characteristics (DC)
DC Supply Voltage 48V
Battery Floating Charge Voltage 54.0 VDC ± 0.8 VDC
Charge Current <15 A
Battery Voltage Low Alarm 42.4 VDC ± 0.8 VDC
Battery Discharge Protection 41.6 VDC ± 0.4 VDC
Over Charge Protection > 60.0 VDC ± 0.8 VDC
200ah Deep Cycle Battery Specification
| Nominal Voltage | 12v |
| Rated Capacity(20 Hour Rate) | 200AH |
| 10 Hour Rate (18.4A) | 184AH |
| 5 Hour Rate (32.0A) | 160AH |
| 1 Hour Rate (120.0A) | 120AH |
| 15 Minute Rate (328A) 82.0AH | 82.0AH |
300 Watt Monocrystalline Solar Panel Specification
| Maximum Power/Pmax(W) | 300 |
| Maximum Power Tolerance | +3% |
| Open Circuit Voltage | 43.2 |
| Short Circuit Current | 8 |
| Max Power Voltage | 36 |
| Max Power Current | 8 |
| Weight(Kg) | 20.5 |
| Dimensions(mm) | 1000 |
| Max System Voltage | 27.00VDC +-0.5 |
| Max Over Current Protecting Rating(A) | 15 |
| Module Application Class | A |
