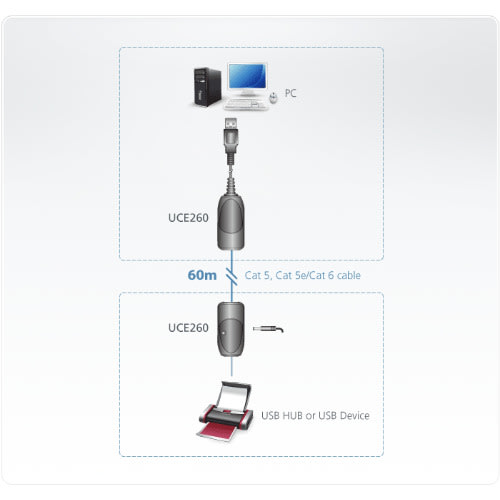

UCE260 can easily send the USB signals via Cat.5/5e/6 cable up to 60 meters (196 ft) at data rate of High Speed (480Mb/s) , Full Speed (12Mb/s) and Low Speed (1.5Mb/s). Without any configuration or software driver, this USB extender allows you to extend your USB device or hub up to 60m from your computer, which overcomes the typical USB cable limitation.
FEATURES:
- Supports any High-Speed (480Mb
- /s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices
- Extends signal transmission distance of a USB devices up to 60m via a Cat 5/5e/6 cable
- Includes an AC adapter to stabilize power supply
- Hot-Pluggable
- The most cost-effective USB extender solution
- No additional software driver required
Package Contents
- 1x Local Unit with USB Cable
- 1x Remote Unit
- 1x Power Adapter (5V, 2.6A)
- 1x User Instructions
SPECIFICATION:
| Local Unit |
| Upstream Port | USB Type A Male |
| Downstream Port | RJ45 Jack |
| Power | Bus-Powered |
| Remote Unit |
| Upstream Port | USB Type A Female |
| Downstream Port | RJ45 Jack |
| Power | Self-Powered |
| Built-In Cable Length | 1 Feet |
| Interconnect Cable | Cat 5/5e/6 Cable |
| Max Cable Length | 60 m |
| Environmental | 0–40°C |
| Physical Properties |
| Housing | Plastic |
| Weight | 0.07 kg ( 0.15 lb ) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
