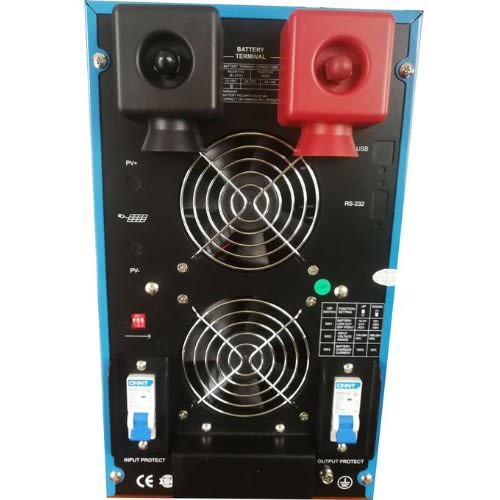

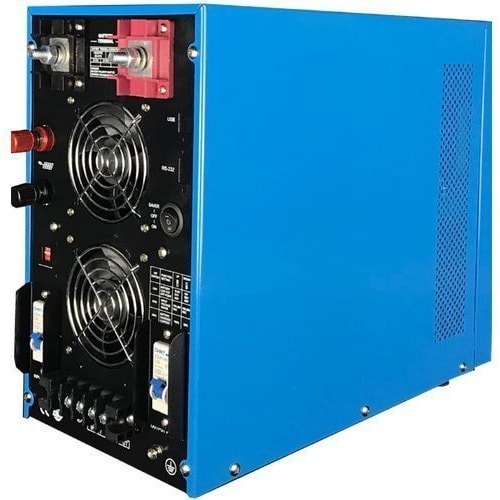

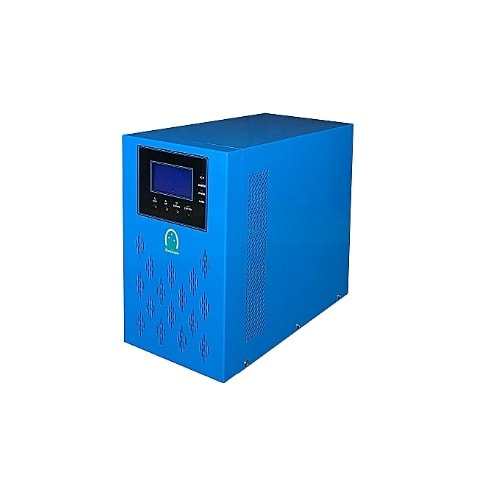

Inverter 2.5kva - 24v

Product Details
Note: With an Inbuilt solar charger. All you need to do is plug in your solar panel terminals and batteries. It is all set for work! We are proud of this product. Tested.
Product Parameters
Input Voltage (DC) 24 Volts DC
Input Nominal Voltage 240 Volts AC
Input Voltage Range 154 - 265 Volts ( for AC Supply Model) While 184-264 ±3Volts (UPS Model)
Input Frequency 50-60Hz Auto Sensing

Output Voltage 220 Volts AC
Output Frequency 50/60 Hz
Output Waveform Pure Sign Wave
Output Transfer Time (AC to DC) < 8ms
Output Transfer Time (DC to AC) <8ms
Output Voltage Regulation ±10%
Output Bypass Mode Yes
Output Saver Mode Yes
Output Efficiency >98%

Input Protection Yes: Circuit Breaker
Output Protection Yes: Circuit Breaker

Battery Type AGM Deep Cycle | Gel Up to 500AH | Tubular Battery
Battery AC Charging Current 30 Ampere
Battery Low-Level Disconnect (Selectable) 20 Volts | 21 Volts (21 Volts recommended for extended battery life; your battery replacement time will be much longer)

Solar Charge PWM Controller Voltage 30-66 Volts DC
Solar Charge Maximum PV Array Power 1200 Watts (Do not exceed. Please provide an earthing connection for the Solar Panels to protect your system from Lightning Storm High Voltage Surges during rain.)
Solar Charge Maximum PV Display Open Circuit Voltage 60 Volts PWM
Solar Charrge Maximun PV Solar Charge Current 50 Ampere

LCD Indicator Status AC Input Voltage, AC Input Frequency, PV Voltage, PV Current, Output Voltage, Output Current, Output frequency and more.
LED Indicator Status AC line-in: Green | Inverter: Green | Charging: Yellow | Fault-Alarm: Red

Low Battery Alarm Audible Alarm: Beep Every 5 Seconds
Overload Alarm Audible Alarm: Continuous Beeps
Fault Alarm Audible Alarm: Continuous Beeps

Environmental Temperature 0-46 degrees Celcius

Humidity -10 degrees - ~90 degrees Celcius Non-Condensing

Accustic Noise(dB) >55(dB)

Size(Lenght*Breath*Hiegth) (mm) 454mm * 243mm * 390mm

Packaging (Lenght*Breath*Hiegth) (mm) 464mm * 253mm * 401mm

Weight (Kg) 17kg

Automatic Generator Start-up Signal Yes
DC Start and Automatic Self-Diagnostic Function Yes
High-Efficiency Energy Conservation Mode: “Power Saving Mode” Yes
Auto Restart Yes
Smart Battery Charger for Optimal Performance Yes
Battery Charging Current Selection Option Yes

Materstanresources offers free product and installation Technical Advice.
