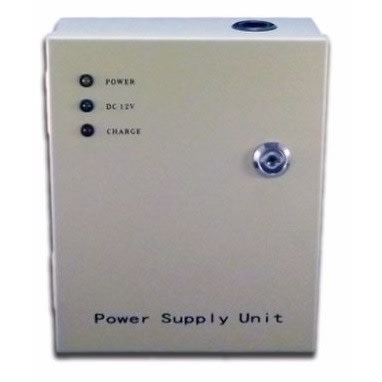

CCTV Power Supply With Battery Back Up Space - DC 12V - 9CH

his battery backed Up distribution power supply can power up to 9 of your 12vDC Cameras and accessories. Each output can support devices up to 1250mAh with its own (Smart) fuse and status LED. With a built-in backup battery, even if you lose power your connected device will remain powered on.

Dentik Vision 9 Channel 12vDC UPS battery back up distribution power supply is the perfect solution for your professional installation. This helps clean up your camera and accessory wiring by allowing you to consolidate all of you power connections into one central location. It is made with a heavy-duty metal case and not provided / includes a backup battery which can keep you system running for over an hour with no power.

Each channel (or output), is protected by a Smart (PTC) Fuse rated to power devices up to 1.1 Amps. Unlike traditional fuses you can't "blow" a Smart Fuse. The Smart Fuse will disable the output when it detects a short circuit, and will re-enable the output once the short circuit is fixed.

Each channel also has it's own LED status indicator to make troubleshooting simple. The LED can indicate either "Good" (On), "Short Circuited" (Off), or that your camera required more power than one output can supply (Blinking LED).

This power supply can be used with and , , , as well as standard wire from 14AWG to 24AWG.

Battery not included

RATINGS

DC 12V 10A

9 CH With Backup

Input:AC220-240V

Output::DC12V 10A

Ripple≤50Mv

Efficiency≥82%

Channels: 9 channels

Fuse Type: PTC Fuse 1.25A

Size: 240*210*89mm

Weight: 2.5 KG

Certificate:CE,FCC,ROHS
