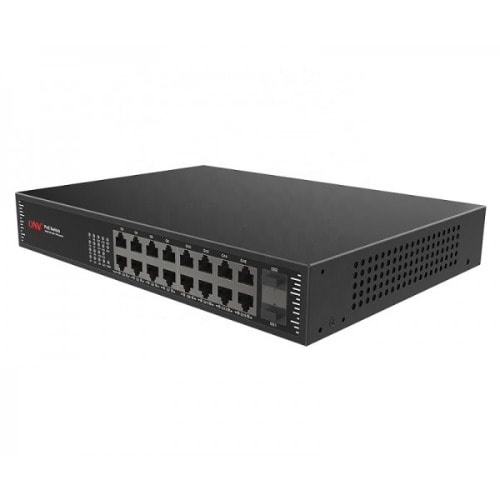

Onv-poe 10/100/1000mbps Gigabit 16 Port Poe Powered Switch
Onv-poe 10/100/1000mbps Gigabit 16 Port Poe Powered Switch
Get an estimate on delivery to your location.
- Pay by card, bank transfer or USSD at checkout
Each POE Port Output 30W Max Power Network POE Switch 16 Port
18-Port 10/100/100M PoE switch. 16*10/100/1000M PoE ports SFP ports.IEEE802.3af/at. Max PoE power output for each port is 30W. Total power is 200W. Built-in power supply.
Unmanaged model, plug and play, no configuration, easy to use.
Technical Specification:
| Product Name | 18-port 10/100mbs Managed PoE Switch |
| Product Model | ONV-POE |
| Connector | 16*10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX) +2*Gigabit SFP ports |
| Transfer Mode | Store-And-Forward |
| Network Medium | 10BASE-T: Cat3,4,5 UTP(≤100 meters); 100BASE-TX: Cat5 or later UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters); |
| Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative) | |
| Performance Specifications | Switching Capacity: 48Gbps (non-blocking) |
| Network Protocols and Standards | IEEE 802.3i 10BASET; IEEE802.3af/at |
| LEDs Status | System: power supply; |
| Power Consumption | 200W |
| Dimension / Weight | 270.5*181*44.5mm / 1.8kg |
| Working Environment | Operating Temperature: -20 ° ~ 55 ° C; Storage Altitude: 3,000 m (10,000 ft) |
| Radiation | CE mark, commercial |
| Safety | CE Mark ,commercial |
As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Conforms to the IEEE 802.3af/at PoE power supply standard, automatically recognizes PoE devices for power supply, without damaging non-POE devices. The maximum POE output power of the entire device reaches 65W, and the maximum POE output power of a single port is 30W.
The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is preferentially guaranteed to prevent the device from being overloaded.
The equipment fully meets the requirements of CE, FCC and RoHS safety regulations, and is safe and reliable.

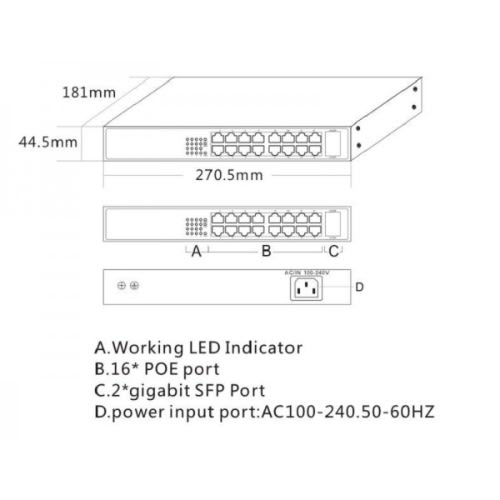

Dimension:

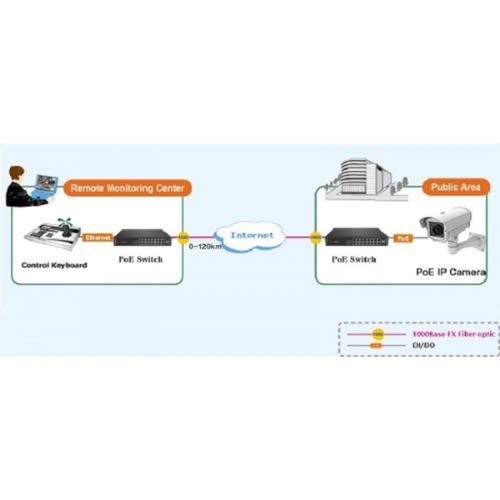

Application:
