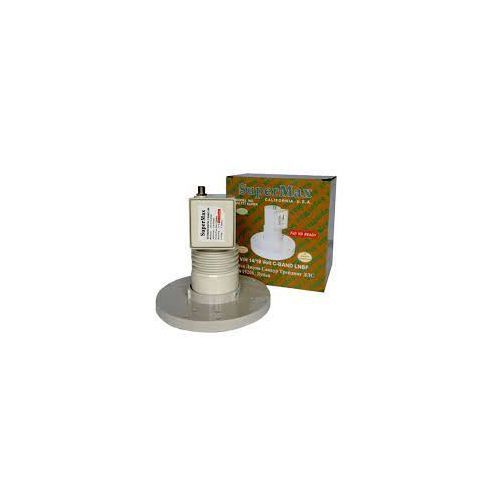

SuperMax Extended Digital C-Band LNB

The industry's best LO (Local Oscillator) stability

High performance for any application

Excellent availability and short lead times

Easy installation and trial run

High quality weather protection

Ideal For Satellite, Dstv, Surebet, Kingsbets, Betnaija etc, and All Free To Air To receive satellite signals, you need a LNB (Low NoiseBlock). What this does is picks up all the signals being bounced off the dish and filters out selected frequencies and amplifies the frequencies you need. It then sends the required frequencies to the satellite decoder box. Installation using a single LNBF allows programming from 1 satellite location and connection of up to 1 reciever. The benefit of the single LNBF is an installation is typically quicker, easier and cleaner than using separate components Single Universal Digital LNBF Ku-Band Input Freq. Range: 10.7 ~ 12.75GHz Output Freq. - Low Band: 950 ~2150MHz L.O. Freq. - Low Band: 9.750MHz L.O. Freq. - High Band: 10.600MHz
Ideal For Satellite Dstv, Betnaija, All Free To Air To receive satellite signals, you need a LNB (Low NoiseBlock). What this does is picks up all the signals being bounced off the dish and filters out selected frequencies and amplifies the frequencies you need. It then sends the required frequencies to the satellite decoder box. Installation using a single LNBF allows programming from 1 satellite location and connection of up to 1 reciever. The benefit of the single LNBF is an installation is typically quicker, easier and cleaner than using separate components Single Universal Digital LNBF Ku-Band Input Freq. Range: 10.7 ~ 12.75GHz Output Freq. - Low Band: 950 ~ 1950MHz Output Freq. - High Band: 1100 ~ 2150MHz L.O. Freq. - Low Band: 9.750MHz L.O. Freq. - High Band: 10.600MHz

Key Features

Input Frequency: 3.4-4.2GHz
Output Frequency: 950-1750MHz
L.O. Frequency: 5150MHz
Noise:13/15/ 17°K type
Gain: >65dBtyp
L.O. Leakage Input Port:45dBm
