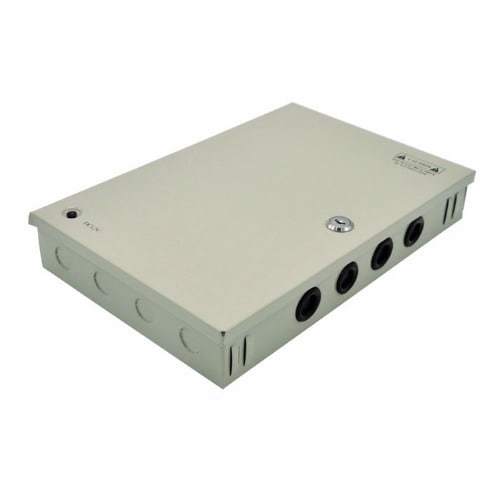

18 CH 12V DC 15A CCTV Camera Power Supply
18 CH 12V DC 15A CCTV Camera Power Supply
Get an estimate on delivery to your location.
- Pay by card, bank transfer or USSD at checkout
FEATURES:
1.High efficiency, long life and high reliability; 2.Low DC ripple, high efficiency; 3. Low operation temperature & long performance life; 4. Input voltage suitable for the world; 5. Excellent insulation property, high dielectric strength 6.100% full-load burning test 7. 1 year warranty
INPUT:
1. AC input voltage range: AC 110/220V±15%
2. Input current(A): 3A /115V,1.5A /230V
3. Frequency (Hz): 50/60Hz
4. Efficiency: 87% Typ(230VACFull Load)
OUTPUT:
1. Output Voltage(V): +12V DC
2. Voltage Regulation: +/-10%
3. Output Current(A): 15A
4. Current Range (A): 0~15A
5. Rated Power(W): 180W
6.Number of Ports:18(Support up to 18 Cameras)
PROTECTION:
1. Over voltage Protection: >115%~135% Rated output voltage
2. Over load Protection: >105%~150% Auto recovery
3. Short circuit Protection: Latched
