Easy Ups 3s 30 Kva 400 V 3:3 Ups - E3sups30khb
1 / 3
Easy Ups 3s 30 Kva 400 V 3:3 Ups - E3sups30khb
₦12,125,000
Secure checkoutRefund policy
Delivery
Get an estimate on delivery to your location.
Delivery to
Choose your state to see the delivery fee and when it arrives.
- Pay by card, bank transfer or USSD at checkout
Product Description

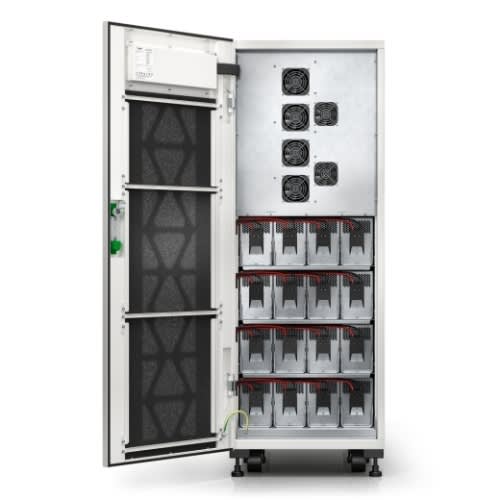

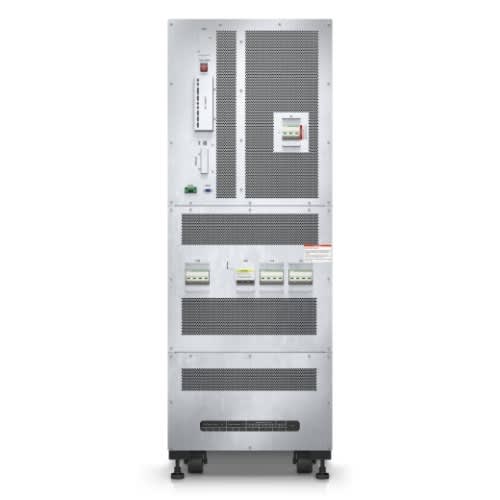

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| rated power in W | 30 kW |
| rated power in VA | 30 kVA |
| provided equipment | Dust filter Installation guide |
| colour | White (RAL 9003) |
|---|---|
| height | 140 cm |
| width | 50 cm |
| depth | 96.9 cm |
| net weight | 152 kg |
| USB compatible | Yes |
| maximum input current | 55 A |
|---|---|
| input harmonic distortion | Less than 3 % for full load |
| load power factor | 0.9 leading to 0.9 lagging |
| Input Power Factor at Full Load | 0.99 |
| input voltage limits | 304...477 V |
| network frequency | 45...65 Hz |
| Maximum configurable power in VA | 30 kVA |
|---|---|
| Maximum configurable power in W | 30 kW |
| output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| harmonic distortion | Less than 3 % |
| output harmonic distortion | < 3% linear load |
| output voltage tolerance | +/- 1.5 % |
| UPS type | Double conversion online |
| product certifications | CE EAC RCM |
|---|---|
| standards | IEC 62040-1-1 IEC 62040-2 IEC 62040-3 IEC 62040-4 ISTA 2B |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| operating altitude | 0...3333 ft |
| ambient air temperature for storage | -15…40 °C |
| storage Relative Humidity | Non-condensing 0…95 % |
| storage altitude | 0.00…15240.00 m |
| acoustic level | 63 dBA |
| heat dissipation | 1410 Btu/h |
| IP degree of protection | IP20 |
| Efficiency | action_new_window |
|---|---|
| battery type | VRLA |
| battery voltage | 240 V |
| maximum short-circuit current | 10 kA |
| number of battery filled slots | 0 |
| number of battery free slots | 4 |
| Package 1 Weight | 190 kg |
|---|---|
| Package 1 Height | 164 cm |
| Package 1 width | 68.3 cm |
| Package 1 Length | 111.4 cm |
