Car Reverse Backup Radar System Parking Sensors 6 Sensors

Car parking sensor consists of ultrasonic sensor, digital control box, camera and LCD display. This system detects the distance between the car and back obstruction with ultrasonic sensor installed at the rear bumper of car. The obstruction image will be shown via the camera. With the change of alarm sound, detect the safe area correctly. It is best choice for the safe of your car.

Features:

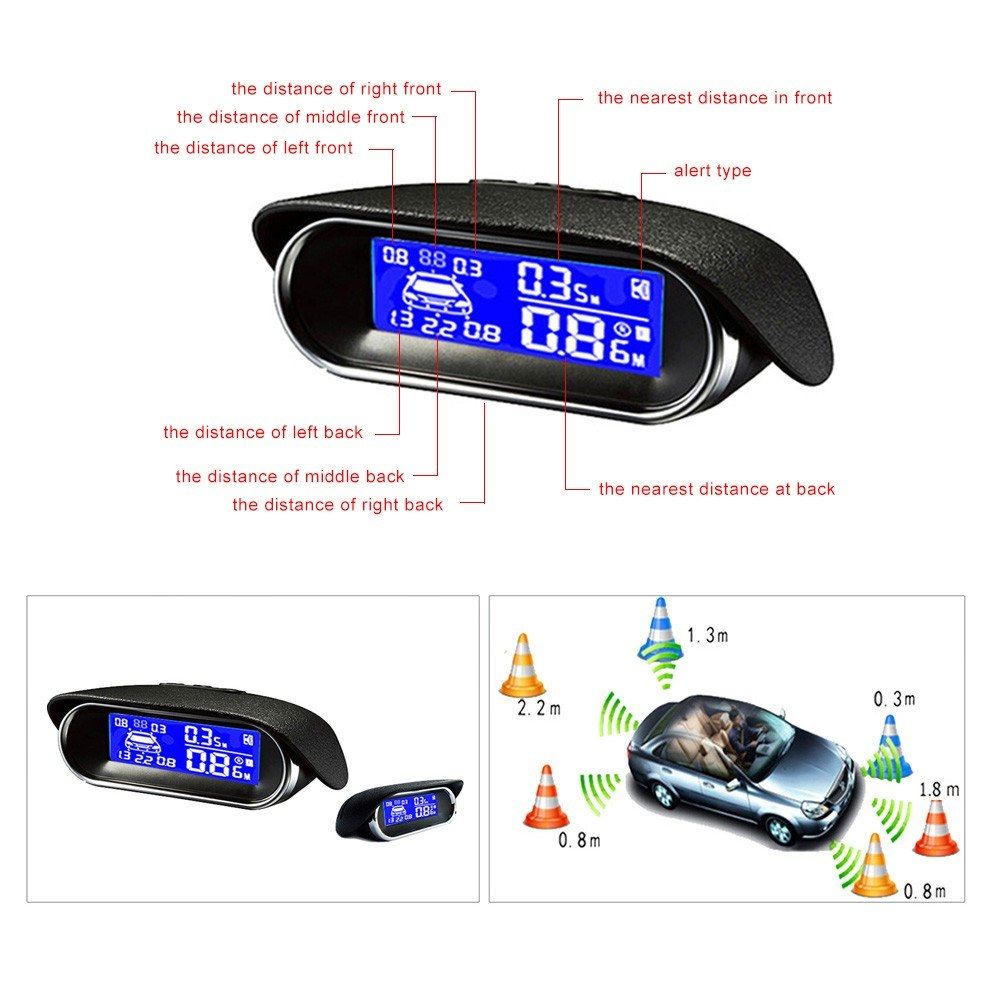

1.Probe distance all digital display

2.Smart start function

3.The sensors car in front, detection range can be accurate to 0.3 ~ 1.2m.

4.The sensors car in back, detection range can be accurate to 0.3 ~ 2.2m.

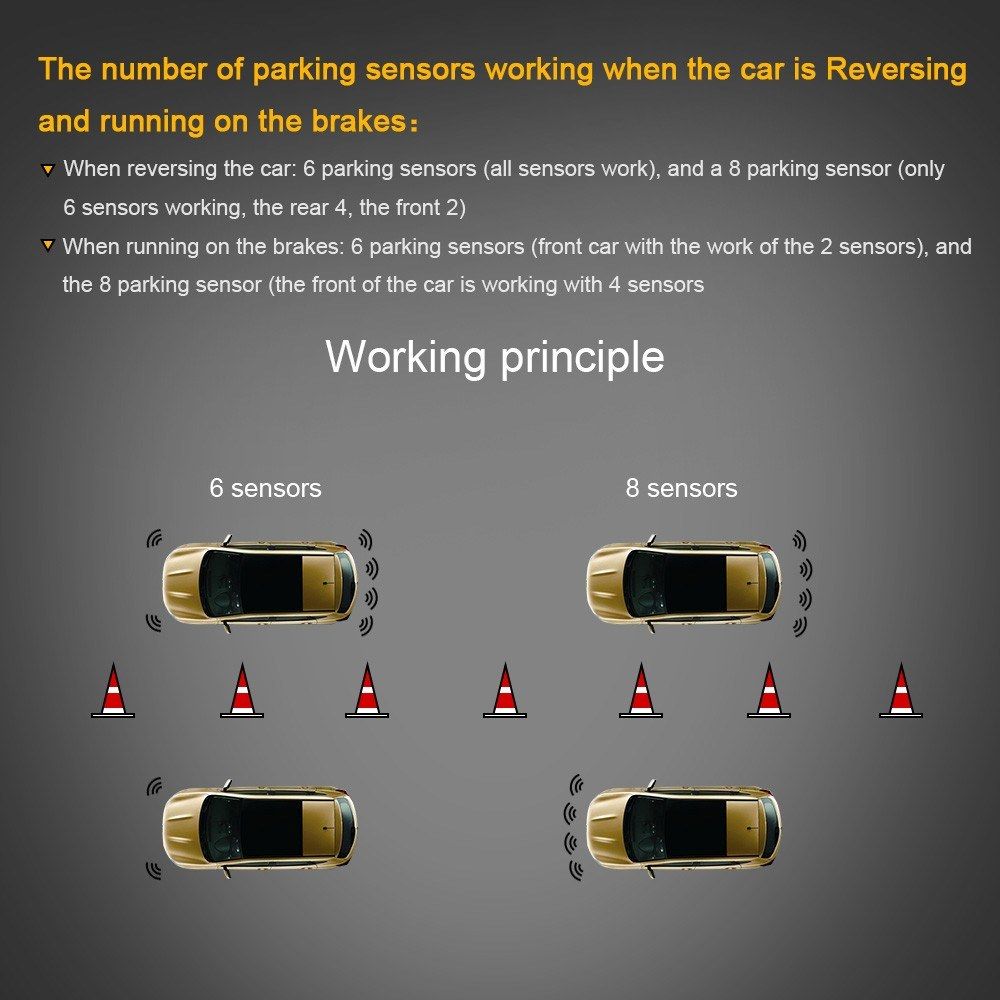

5.When reversing the car, four probes behind the car are started. At the same time, the two probes on the left and right sides of the car will be activated, which effectively reduces the blind spot in the front left and right blind areas and prevents corner rubbing during reversing.

6.The full-display reversing radar provides sound switching buttons. The user can use the display\'s switching button to mute, buzzer, Chinese/English voice (optional), or voice (optional)+beep sound patterns. Where you switch from one to the other.

7.Full digital display reversing radar with 3 levels for volume control.

Wires Connection:

Red--ACC

White--Foot brake wire

Yellow--Reversing wire 12V

Black--Ground

Specifications:

Material Type: ABS

Color: Black

Type: 6 X Parking Sensor / 8X Parking Sensor (optional)

Rate Voltage: 12V DC

Rate Operating range: 10.5V - 16V DC

Rate Current: 100mA - 300mA

Ultrasonic Frequency: 40KHz

Control Mould Working Temperature: -30 - 80 celcius degree

Display Working Temperature: -20 - 70 celcius degree

Sensor Diameter: 18.5mm

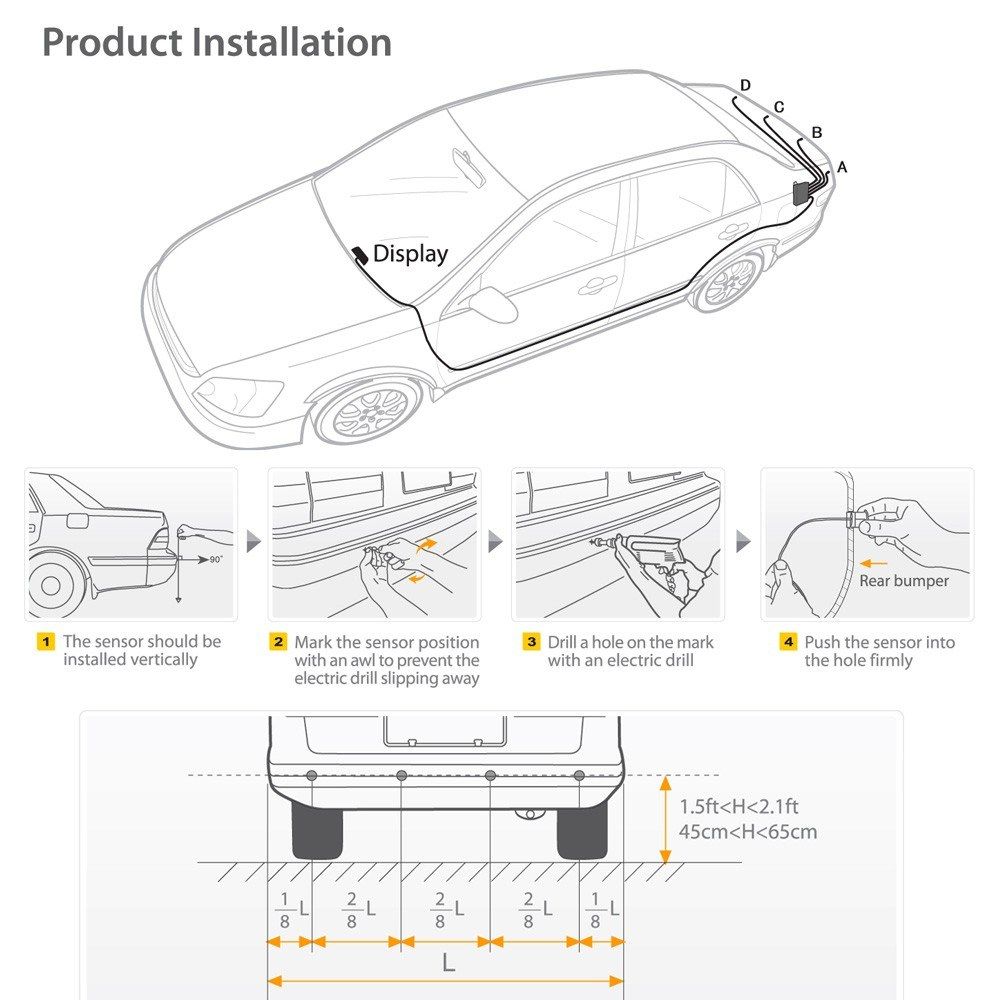

Installation Mode: Drilling

Sound: Heart beat type, more recent alarm more rapidly

Size: 25CM*21CM*6.5CM

Package Weight: 766g

Package Included:

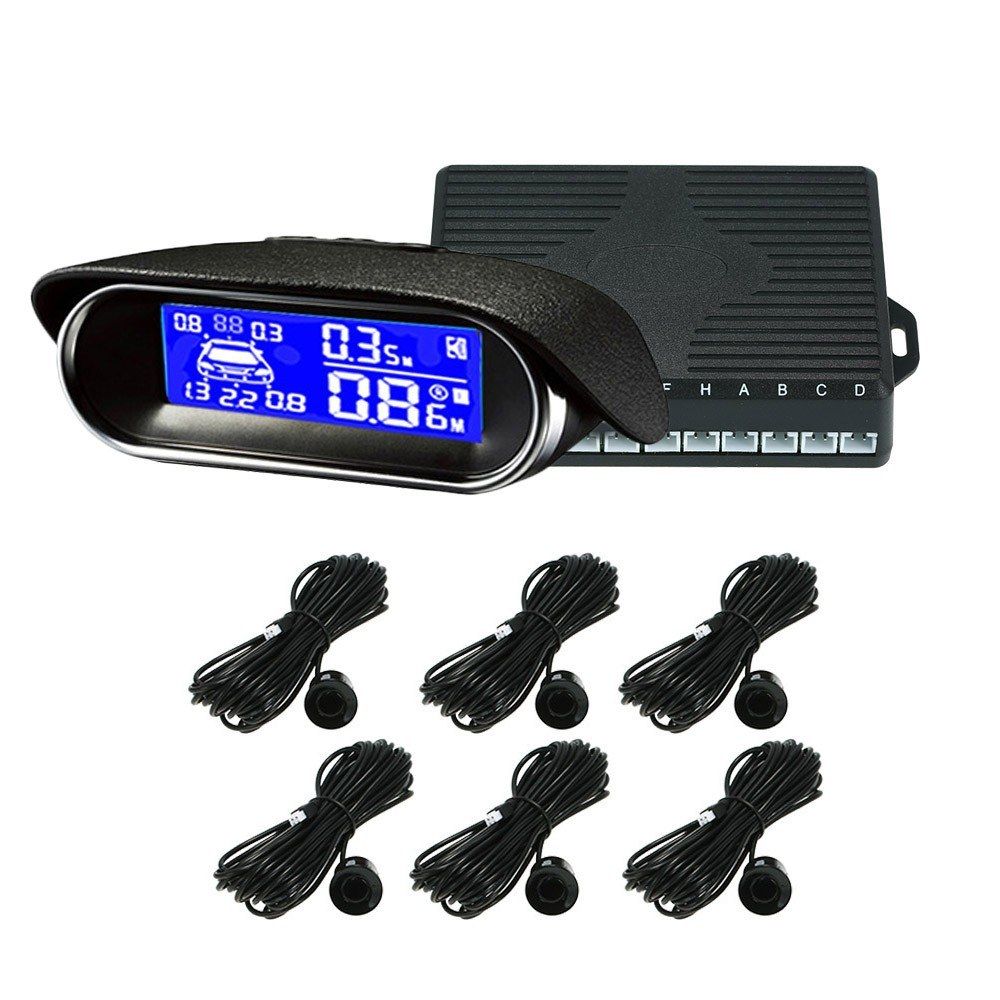

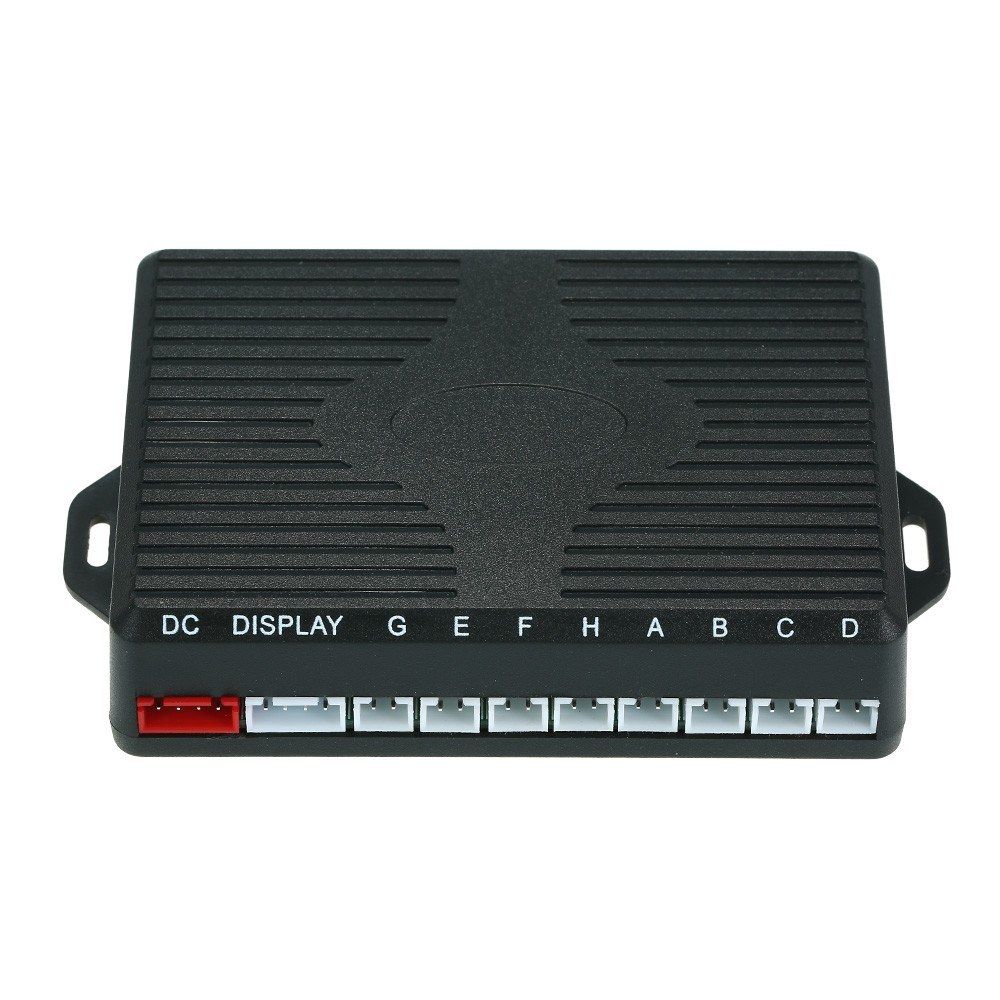

1 X Main Control Box

1 X LED Display

6 X Parking Sensor

1 X Power Cable

1 X Hole Saw

1 X User Manual
