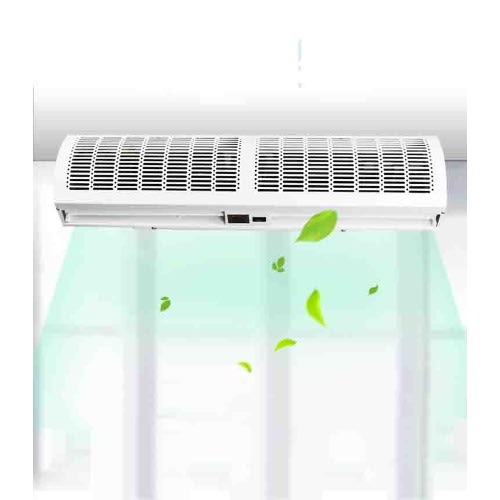

Supertek Natural Wind Air Curtain 3ft

Industrial Air Curtain 3

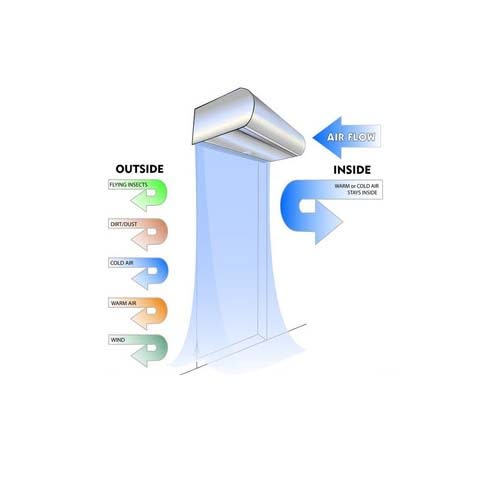

An air curtain is a product which creates a uniform stream of directed air, whether heated or unheated, across an opening to create a barrier inhibiting the transfer of heat and particulate matter from one zone to the other. An appropriately designed system will create this barrier across the entire height and width of the opening to create the effects.

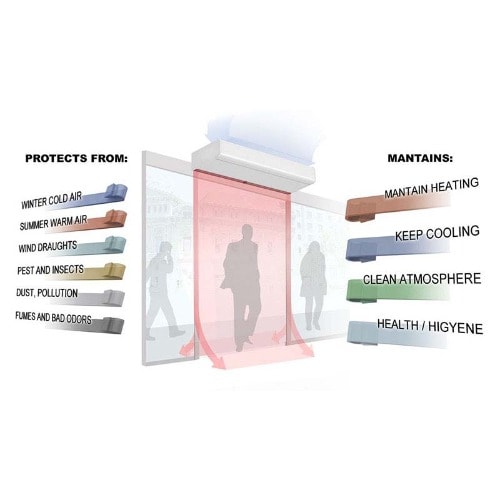

Energy savings as it provides a thermal barrier, stops drafts and reduces infiltration of outdoor air into air-conditioned areas. Improved Environment- air doors are designed to prevent dust, odours, insects from entering your building at open doorways.
Simple and easy installation on wall or ceiling. 220V/1F/50Hz power source

AIR CURTAINS are widely installed at the entrances of supermarket, theater, hotel, food storage warehouse, residentials. etc.

Air Curtain Installation and Maintenance Instruction

Installation method:

1. The whole machine is installed with channel steel as the beam and the whole machine is bolted to the beam and installed firmly.
2. Before the air curtain wring, push the impeller by hand. Pay attention to whether the impeller sweeps the ceasing. For example, if the casing is swept, please try to remove it immediately and pay attention to whether the impeller rotates in the correct direction. The fuselage casing should be reliable grounded.

Use and Maintenance:

• If there is any abnormality during operation stop immediately and check.
• Keep the air curtain clean and clean the dust regularly
• The air curtain should be installed on the indoor side of the gate.
• All kinds of air curtains will stop immediately if they have different response during operation.
• The air curtain is generally used for 1500 hours and wind wheel should be cleaned. When cleaning, care should be taken to prevent deformation or damage of the blade. Before checking or cleaning the machine, the power must be cut off to ensure safety.
