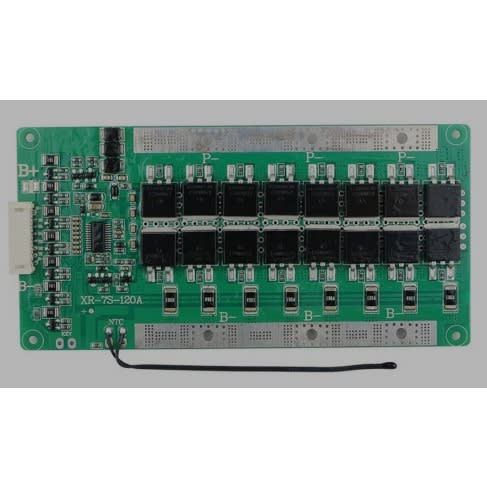

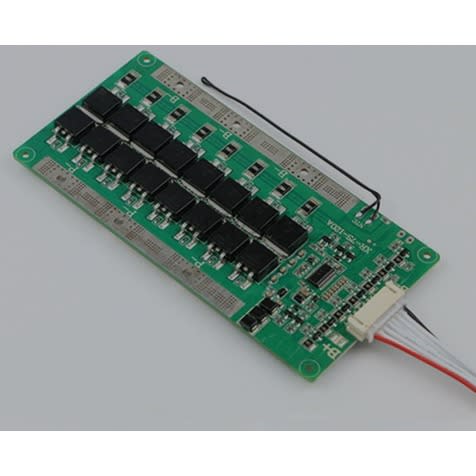

Bms 7s 24v 150a 18650 Lithium 3.7v

Discharge

1. Over-discharge protection voltage: 2.7V 0.03V
2. Over-discharge recovery voltage: 3.0V 0.03V

3. Continuous working current: 150A

4. Instantaneous protection current: 530A
5. Overcurrent recovery conditions: charge recovery / disconnect load
6. Short-circuit recovery conditions: charge recovery / disconnect load

Charge

1. Overcharge protection voltage: 4.25V±0.025V
2. Overcharge recovery voltage: 4.15V±0.025V
3. Continuous charging current: 150A (maximum)
4. Charge equalization voltage: 4.125V±0.025V
5. Charge equalization current: 45MA (maximum)
6. Charger voltage: 30V (recommended)

Activation method

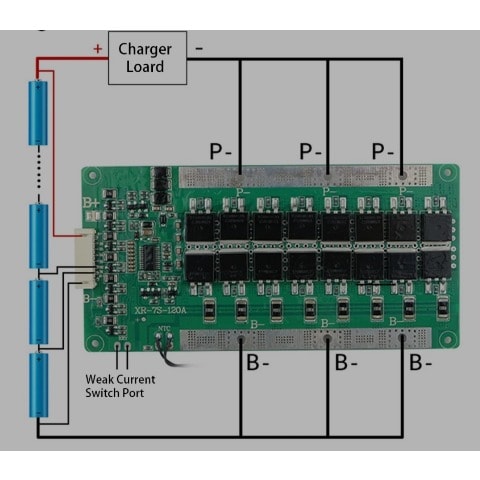

(1) B- and P- wires can be short-circuited once
(2) Recharge and activate

Parameter

Temperature range: -40 to +80°C
Disconnection protection: Yes
Cable size: 2.0MM pitch/8 lines/40CM length

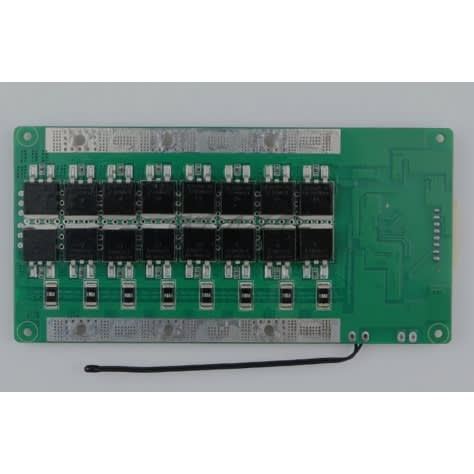

Product appearance size: 128*63*15MM (double-layer aluminum heat sink)
