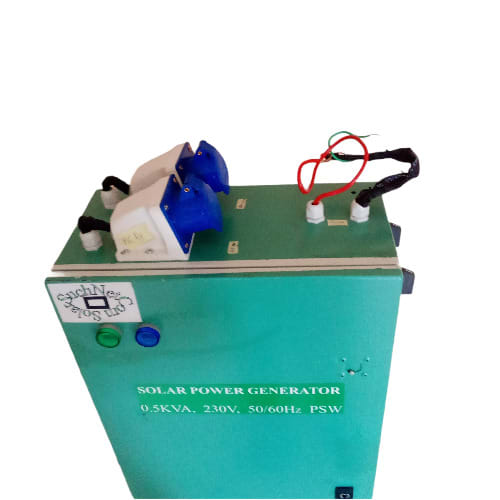

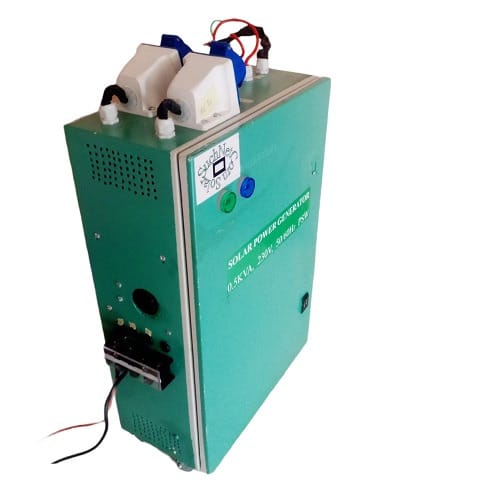

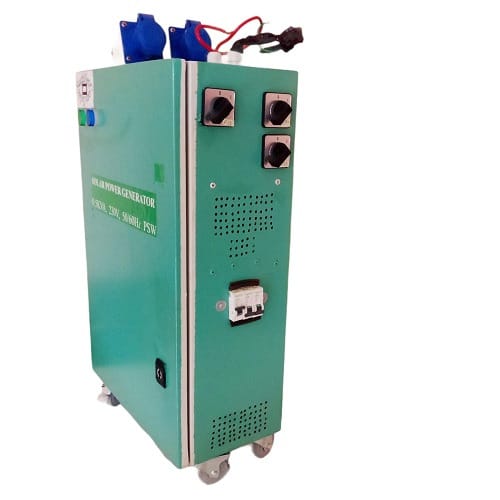

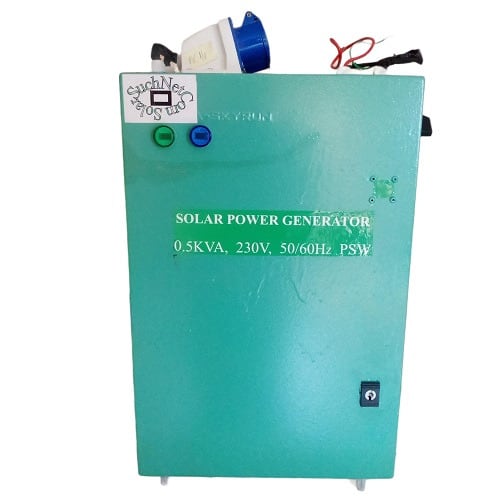

Solar Power Generator - 0.5KVA, 230V 50Hz - Model SNCS0.5K

Note:

The 500VA Solar Power Generator is a unique Plug-and-Play Solar generator, which is recently released. Carefully designed by our engineers, prototyped, and manufactured in our factory in Nigeria. The brand name is Plug-and-Play Solar Power Generator (PPSPG).

....................................

The 500VA 230V 50-60 hertz PURE SINE WAVE PPSPG has a carefully integrated onboard power electronic
circuitry of inbuilt inverter, charge regulator, battery, safety units, humidity control fan and external switching units. The PPSPG does have an external connector block for additional battery extension to increase the system energy capacity at its output and prolonged runtime of connected load. The PPSPG power system has also got weatherproof male/female plugs for AC input/output power lines, including external link wires for intake of DC input voltage from solar panels. The solar power generator comes with 100W (2 x 50 watt peak) monocrystalline solar panels, which is upgradable to achieve a total of 350W (7 x 50W peak) maximum applicable. This syste has inbuilt battery charger that can deliver up to 20amp DC current. The PPSPG is safe, reliable and provides excellent performance over a wide range of conditions due to the ruggedness. The PPSPG has digital seven segment display output voltage and frequency indicator lamps to visualize output performance. It has both AC (230V / 50-60Hz) and 12VDC external battery connector. The AC input takes wide voltage range of 150-275Vac at 45-70Hz with auto tracking capability and automatic switching transfer time of less than 2 miliseconds. While AC output is 230V (+/-2%) at 50/60Hz (+/-0.5%) pure sine wave (PSW). It has overload, over-current, short-circuit and over temperature protection capability. The acceptable temperature range is between -10 to +50 degree celsius, with humidity level less than 40% and noise level less than 45 decibel. PPSPG is designed for use in any terrestrial location here on Earth.

This solar power generator is not submersible in water.

The sample load capacity of 500VA SOLAR POWER GEN is: 5x6W LED bulb, 2x80W fan, 1x80W TV/video reorder set, 1x25W DSTV decoder; x70W laptop, and phone charger. In order to be able to power a small bedside refrigerator, all other load must be shut down and external batteries added to prolong load run time.

CCTV System network Powering: 500VA (0.5KVA) Solar Power Generator can carry 16 cctv camera, network recorder, 30 inches TV monitor, 1 x 20 watt LED floodlight.
