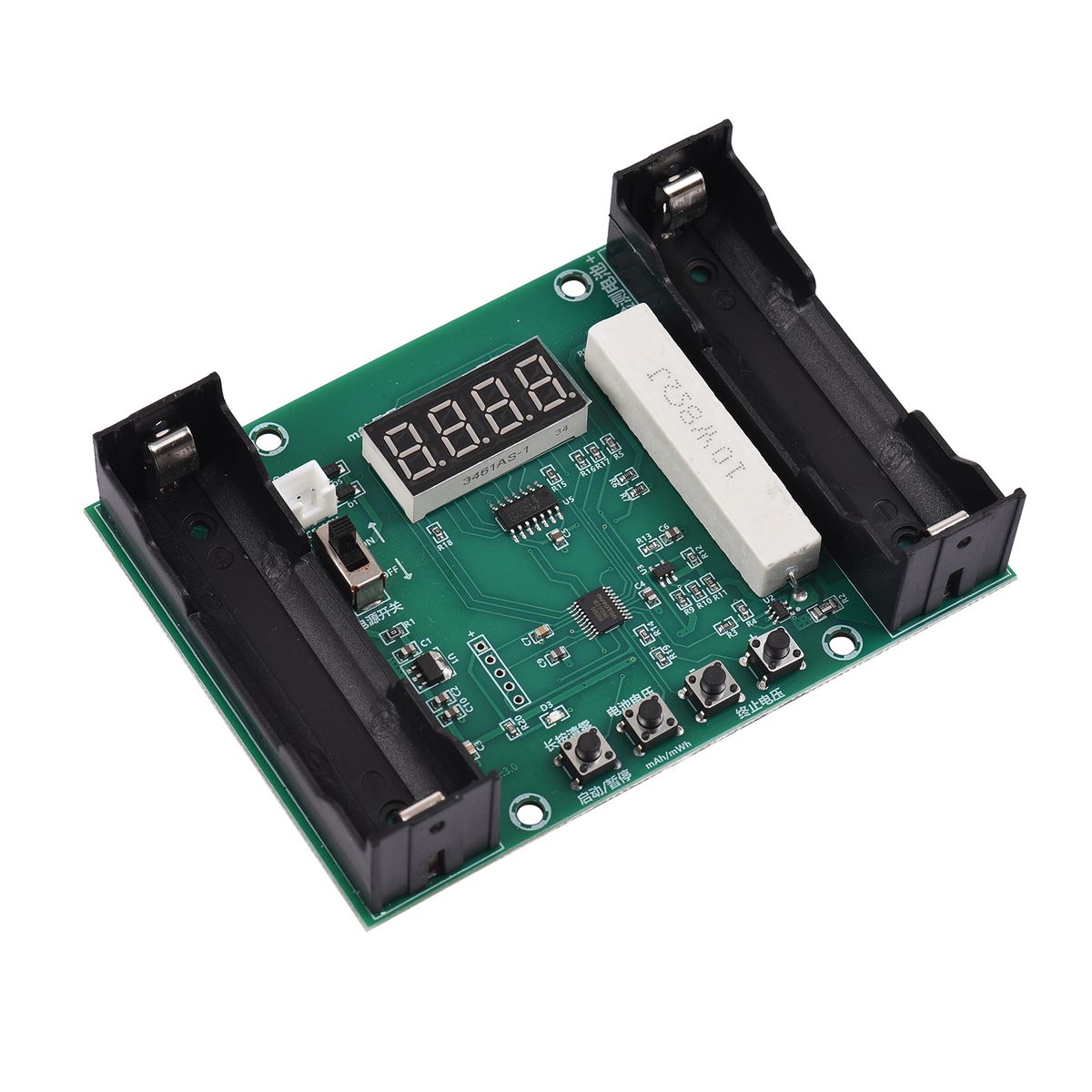

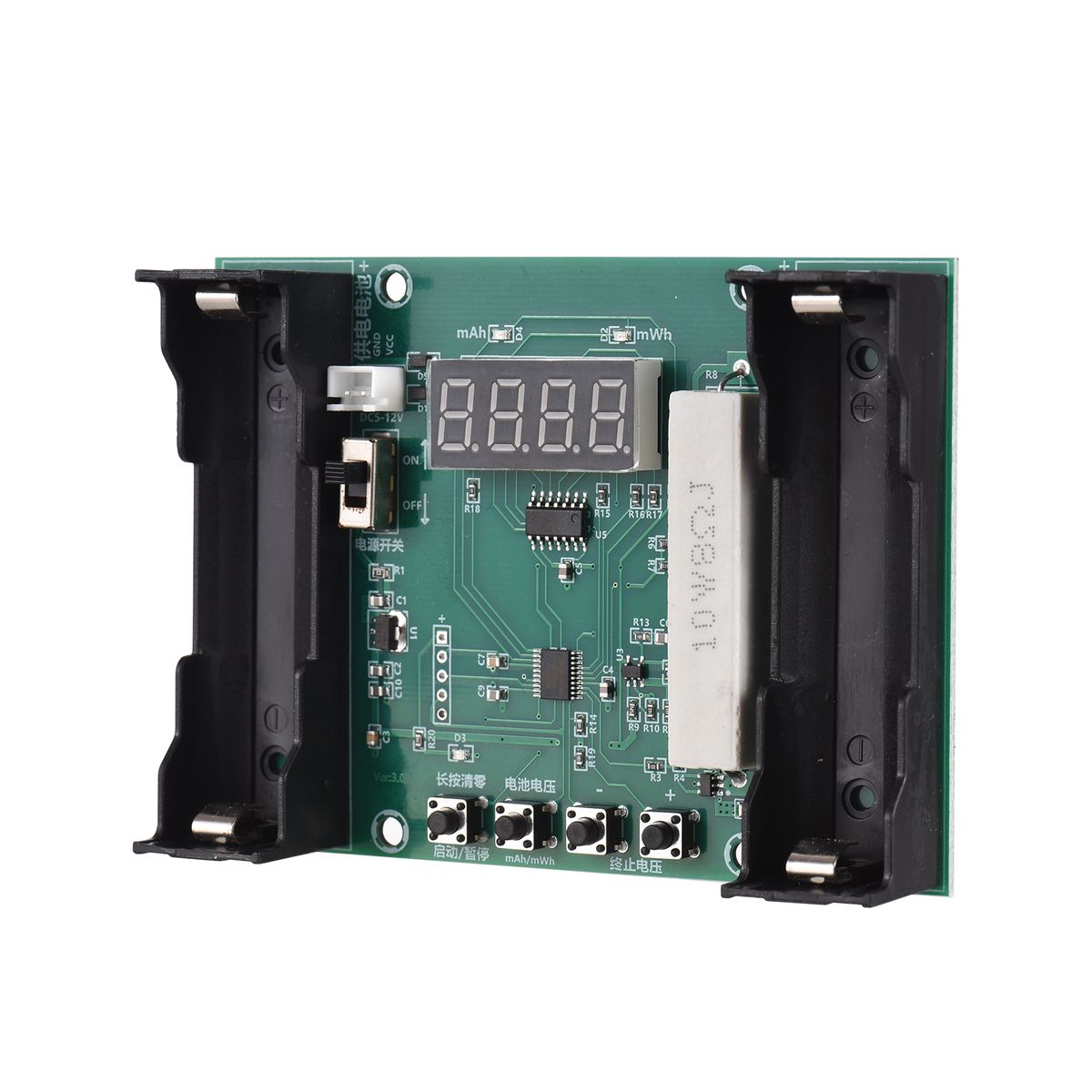

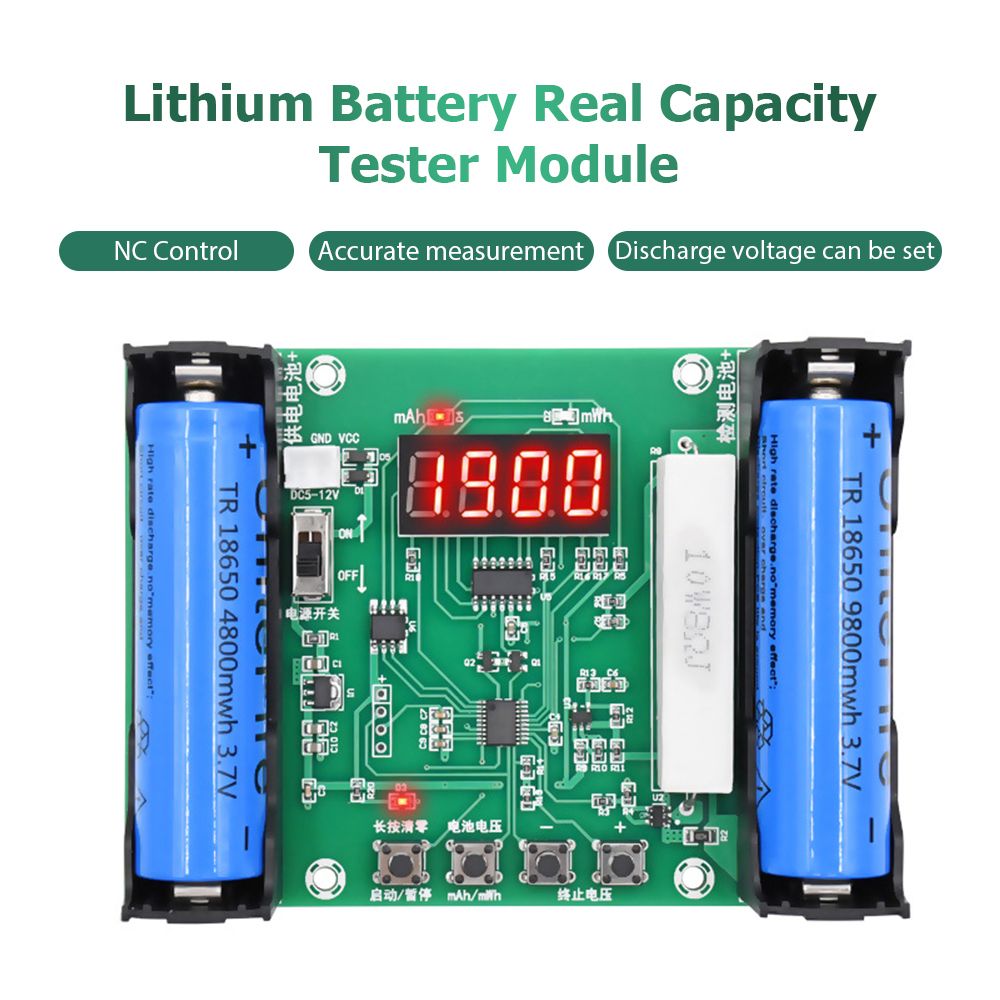

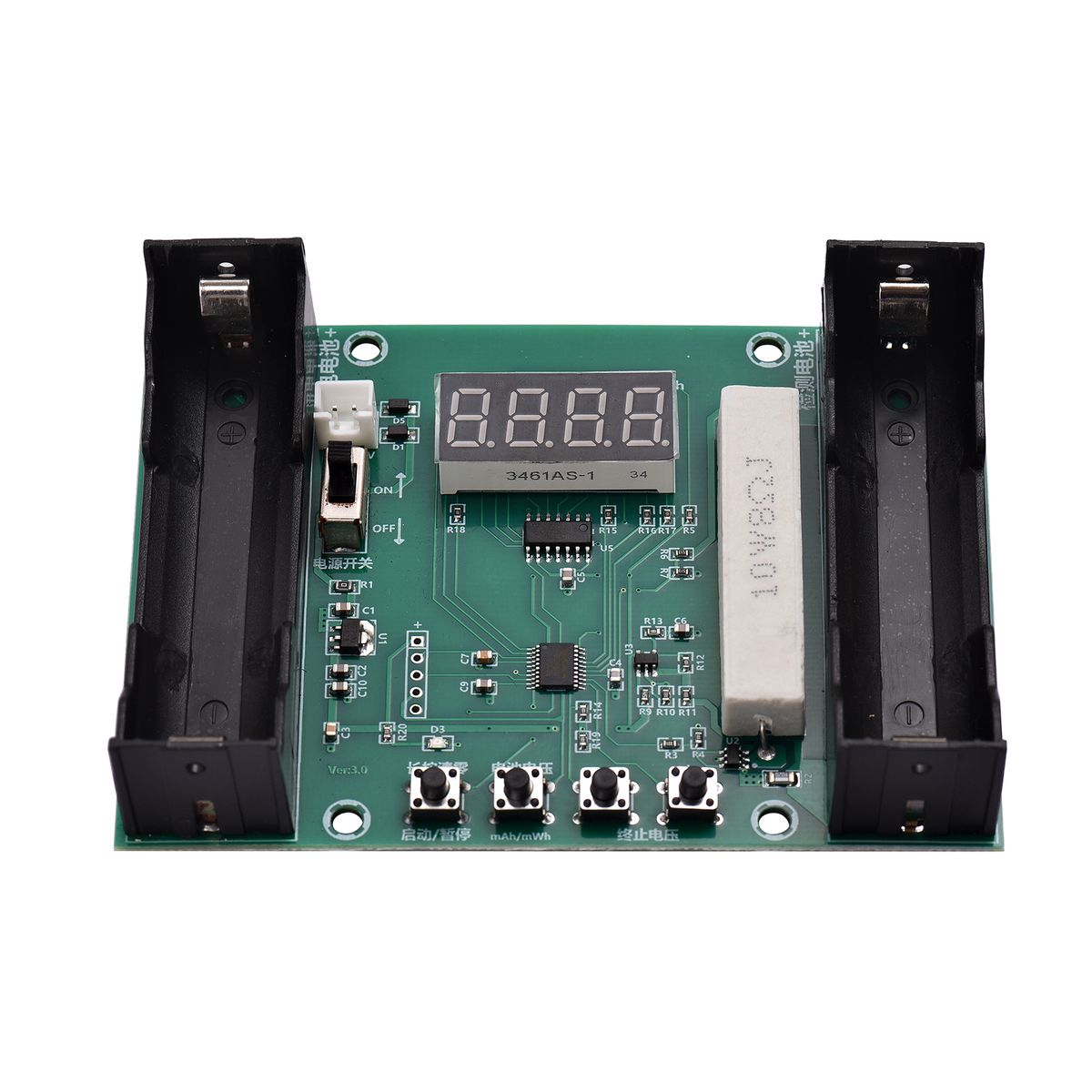

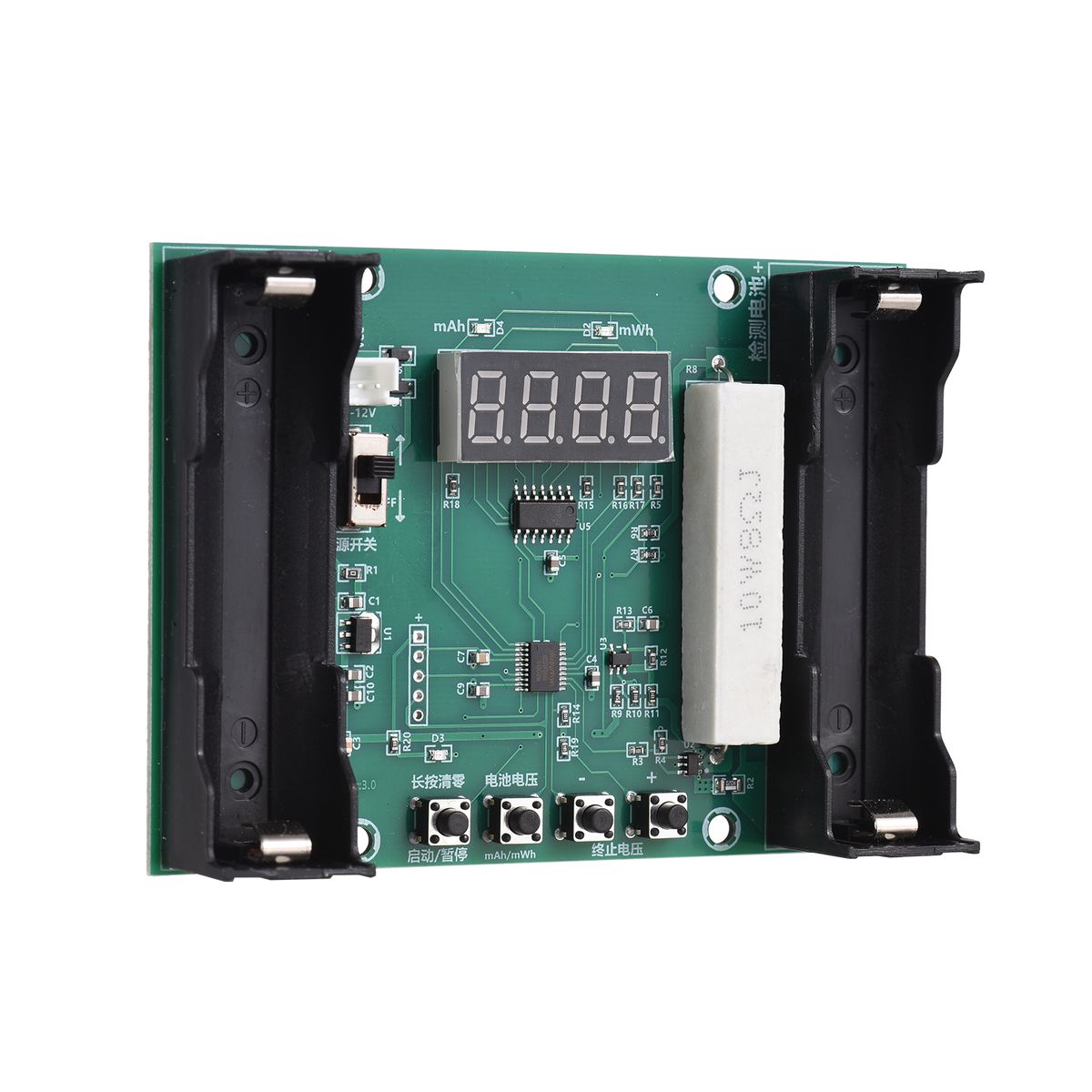

Lithium Battery Real Capacity Tester Module Battery

Features:

It is a module for DIY to make lithium battery detection capacitor, which needs external supply DC5-12V.

The module has its own discharge load 10W 8Ω resistance.

The minimum discharge stop voltage of lithium battery is generally 2.75V. When the voltage drops to 0.875 times the rated voltage (3.24V), it should be charged

voltage is generally 4.2V-4.35V.

Microcomputer control, the measurement is accurate, and the discharge voltage can be set.



Specifications:

Material:

Display Accuracy: 0.1

Measurement Accuracy: 1mAh

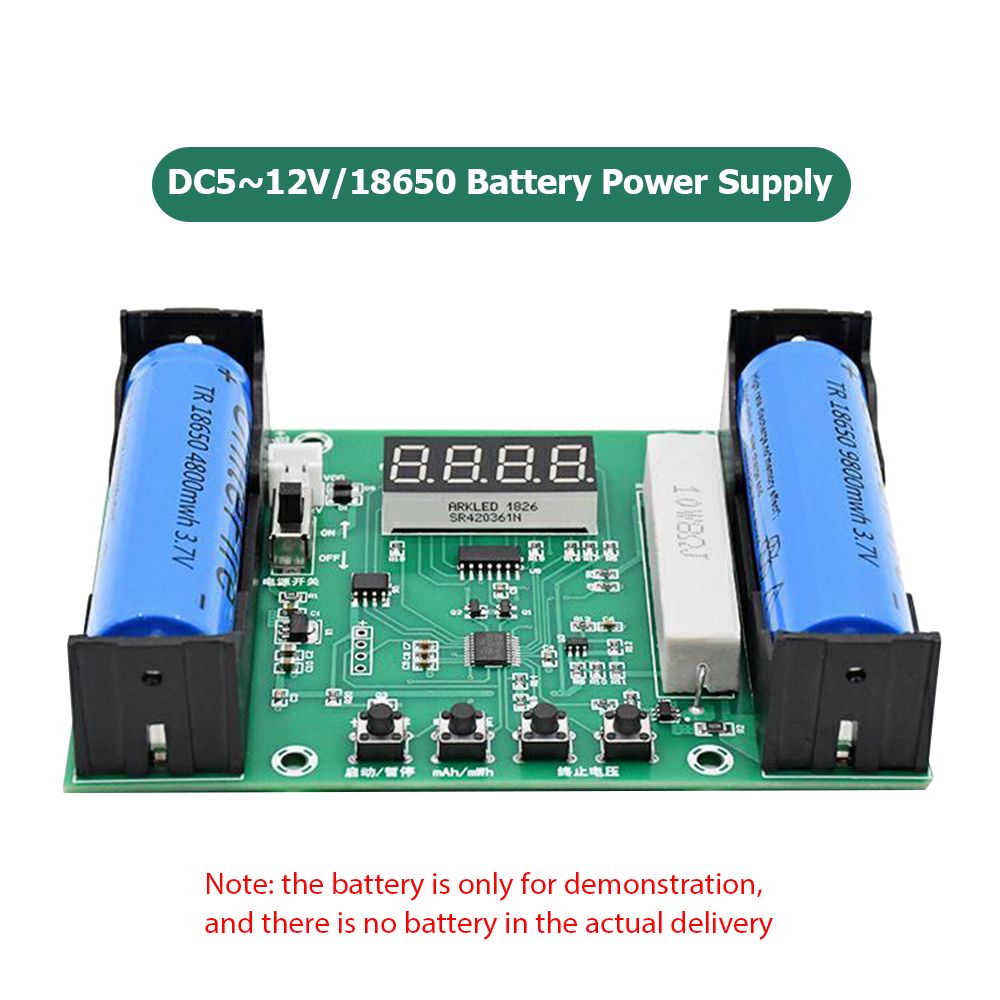

Supply Voltage: DC5-12V/18650 battery supply

Standby Current: 5-7mA

Discharge Current: 500mA

Load : 10W, 8Ω

Installation Dimension: 72*53

Installation Hole Diameter: 3mm

Item Size: 110 * 80 * 25mm / 4.33 * 3.15 * 0.98in

Item Weight: 59g / 2.11oz

Package Weight: 63g / 2.24oz

Package Size: 14 * 12.5 * 3cm / 5.51 * 4.92 * 1.18in



Packing List:

1 * Module

Key Features

It is a module for DIY to make lithium battery detection capacitor, which needs external supply DC5-12V.
The module has its own discharge load 10W 8Ω resistance.
The minimum discharge stop voltage of lithium battery is generally 2.75V. When the voltage drops to 0.875 times the rated voltage (3.24V), it should be charged
voltage is generally 4.2V-4.35V.
Microcomputer control, the measurement is accurate, and the discharge voltage can be set.
It is a module for DIY to make lithium battery detection capacitor, which needs external supply DC5-12V.

What's In the Box

1 x Module
