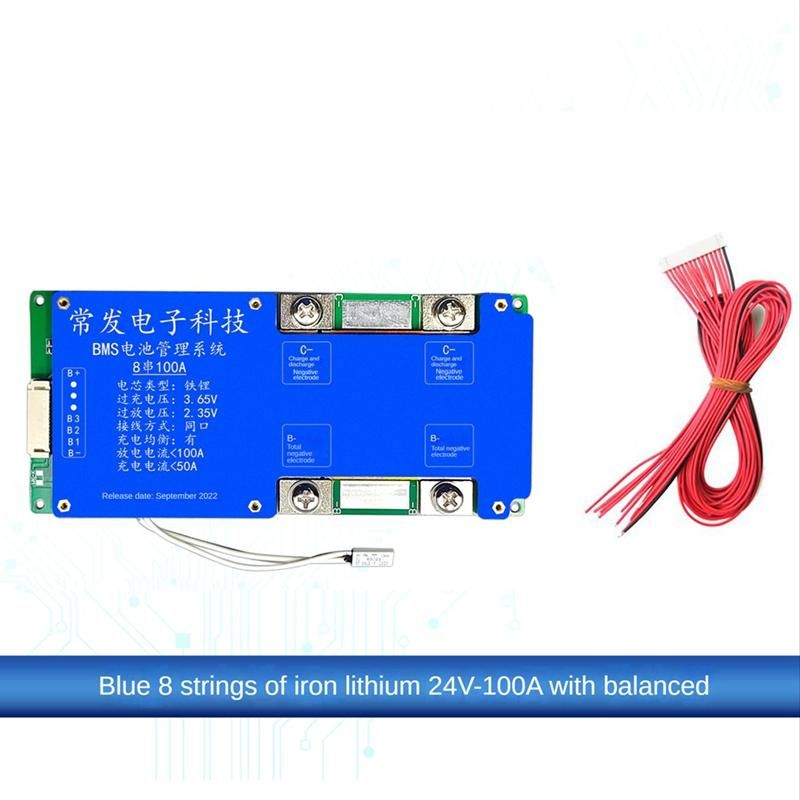

8S 24V 100A LiFePO4 Battery Protection Board Same Port with Equalization Temperature Control BMS Battery Board for UPS

Overcharge and discharge protection to prevent overcharge and discharge of the battery Overcurrent protection to prevent abnormal high current of battery
Balance protection battery voltage balance make battery life

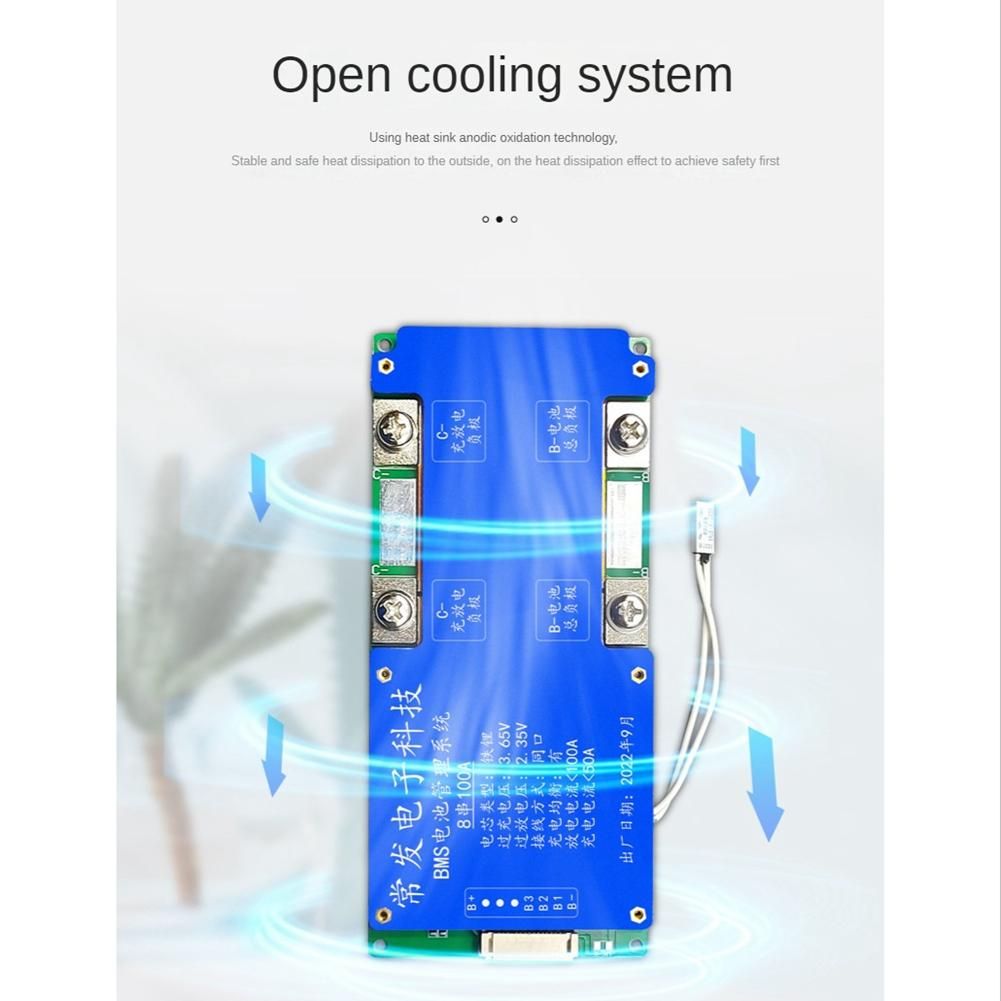

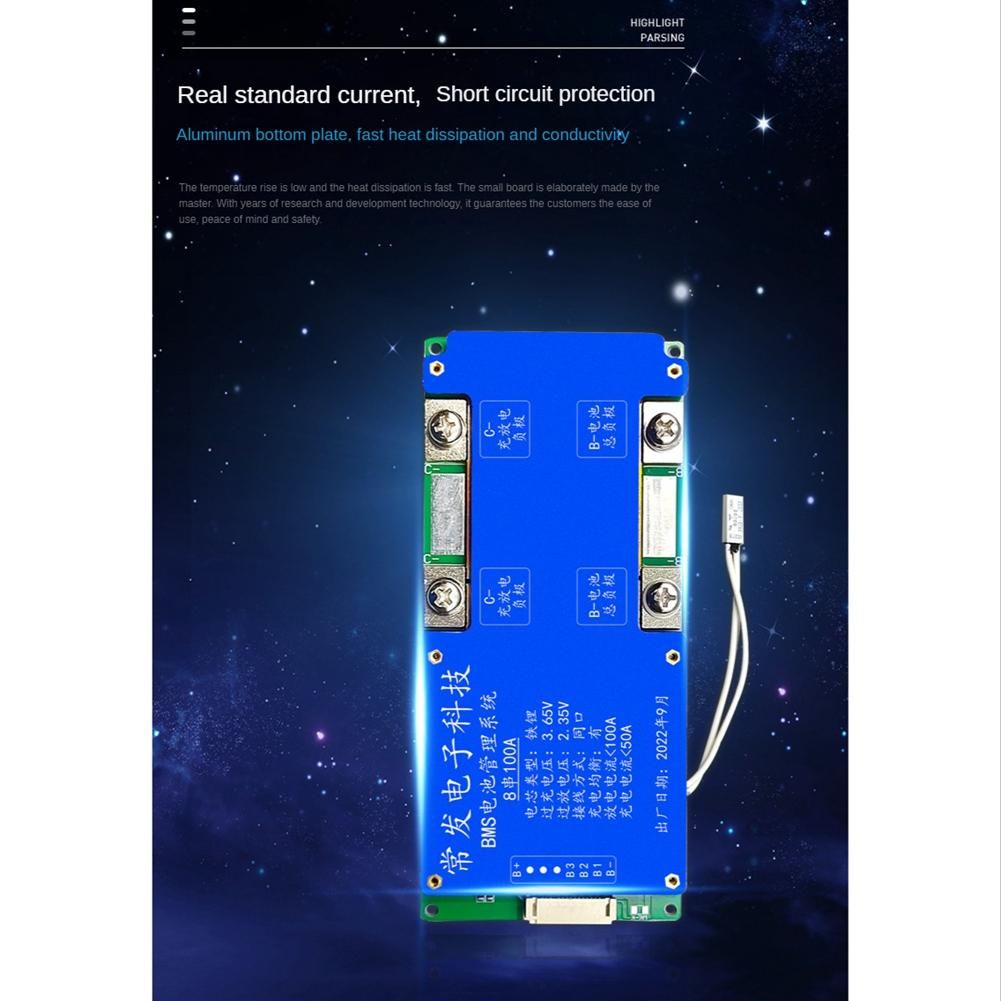

Stable heat dissipation stable heat dissipation of the aluminum substrate
safety protection absorbs anti-high voltage reduces MOS tube breakdown ultra-low internal resistance MOS
Suitable for most electric tools on the market electric electric bicycles electric tricycles electric motorcycles electric vehicles electric tools etc

Product name Lithium battery protection board
Product type 8S 24V 100A with Equalization temperature control
Specifications 8S Lithium Iron 24V 100A
Iron lithium battery nominal 32V

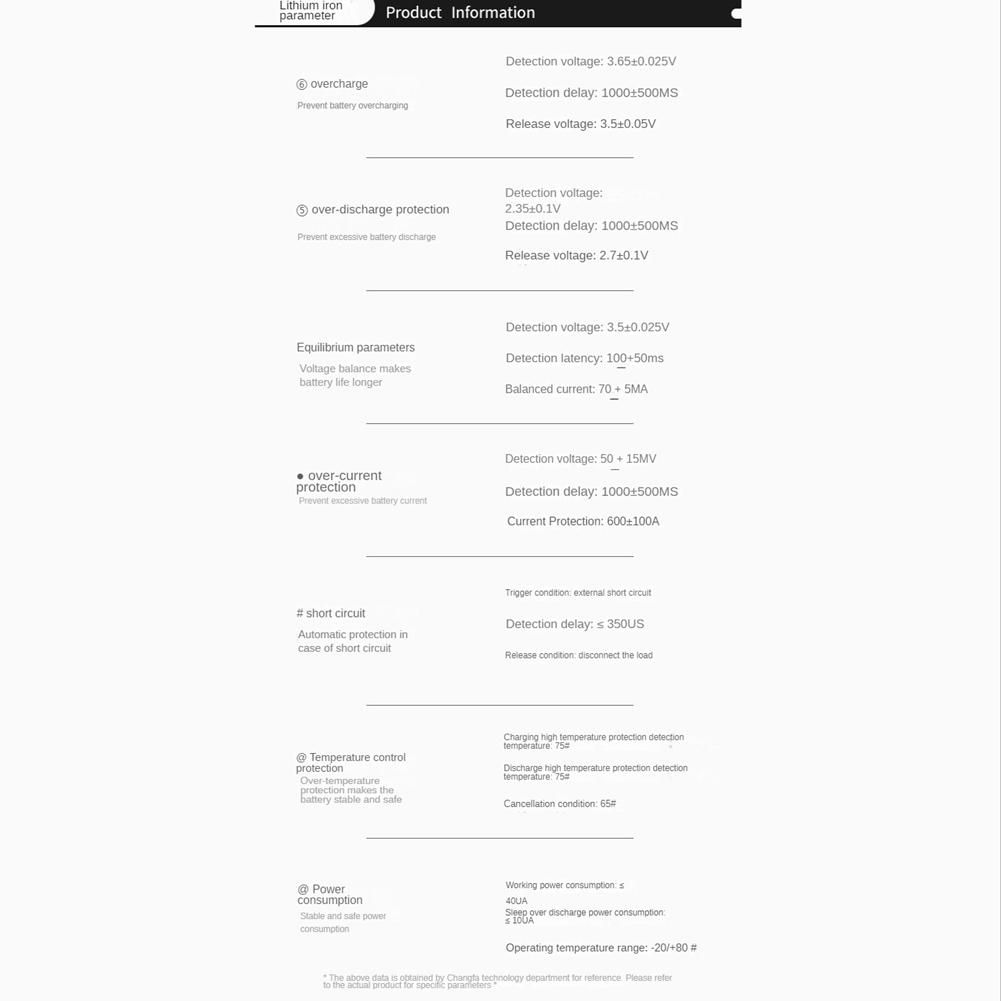

Overcharge Iron Lithium 365±0025V
Overdischarge Iron Lithium 235±01V
Equalization Iron Lithium 35±0025V
Current 100A
Charging current same port ≤50A
Main circuit on-resistance ≤5M
Discharge overcurrent protection 600±10A
Temperature control protection charge at 75°C discharge at 75°C
Working temperature -2080
Short circuit protection 350US
Self-consumption ≤40UA
Product application range for Inverter solar street lamp electric tool photovoltaic energy storage UPS etc
Product size 145 x 65 x 11mm
colorBlue
MaterialPCBMetal

Package Contents
1 x lithium battery protection board
1 x cable

Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm

What's In the Box

1 x lithium battery protection board
1 x cable
