3s 100a 12v With Balance 18650 Li-ion Lithium Battery

Now this 3S 100A balance version has upgrade to new !
1.increased anti-interference function,
2.reduce the large current heat by 30%,
3.starting power increased from 300W to 500W (3S100A)

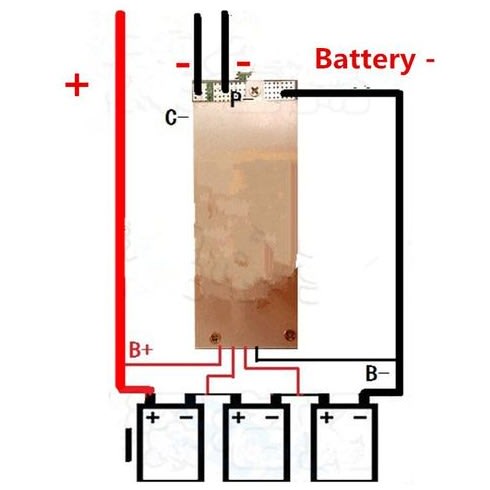

Note 1: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit.
Note 2: 3 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery.
For some of the poor basis of electronic customers to explain: balanced charge is only auxiliary functions, try not to put a good battery and poor battery mixed together! 3 sets of battery capacity / resistance closer to the better! (2 good battery +1 Poor battery use effect = 3 poor battery use effect).
Material: Plastic + metal

Package Contents:

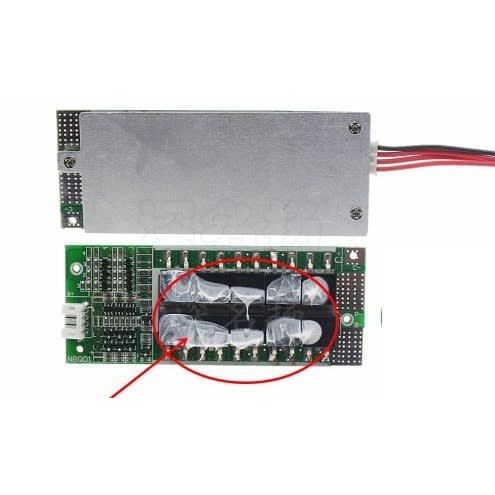

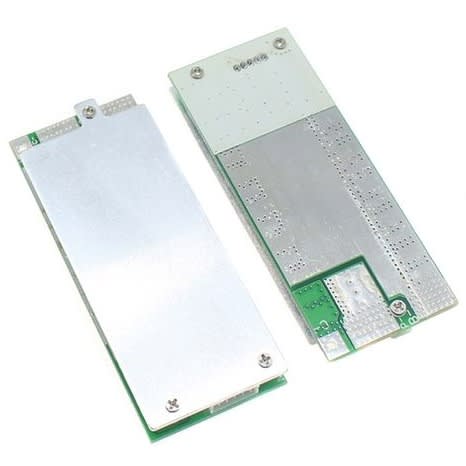

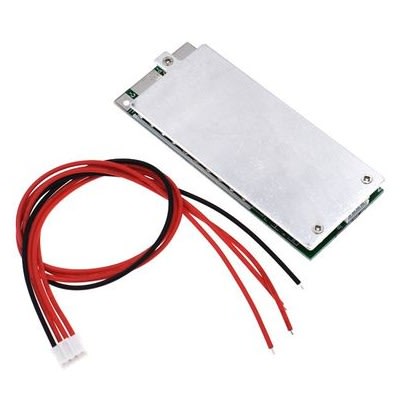

1* 3S 100A Lithium battery protection board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
