3S 12.6V 60A Balanced 18650 Lithium Battery Charger Protection BMS Board
3S 12.6V 60A Balanced 18650 Lithium Battery Charger Protection BMS Board
Get an estimate on delivery to your location.
- Pay by card, bank transfer or USSD at checkout
The 3S 12.6V 60A Balanced 18650 Lithium Battery Charger Protection BMS Board is 11.1V - 12.6V 60A 3 series lithium batteries precision integrated circuit for fast and safe charging.
This is also a Balancing version protection PCB board that supports over charge protection, over discharge protection, and short circuit protection. Support 3.7V 4.2V(full charger) 18650, 26650 polymer lithium batteries, no size limited.
Note:
Three 15C-20C power batteries or six 10C-15C power batteries are required to successfully start the drill (regular 18650 will not start the drill). Connection of 0V and 12.6V, using copper wire of more than 3 mm square (no nickel sheet).

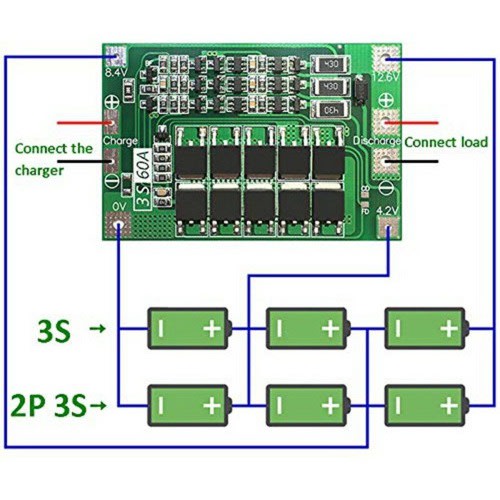

Strictly follow the diagram to connect 0V, 4.2V, 8.4V and 12.6V. Do not intentionally short circuit.
When charging the battery, the "430" resistance heats up normally, indicating that the equalizing circuit is working. If the "430" resistance is also hot without charging, please check whether it is connected to the wrong wire.
Features & details
- Continuous charging current (upper limit): 20A
- Balancing version protection PCB board support over charge protection, over discharge protection, and short circuit protection.Support 3.7V - 4.2V(full charger) 18650, 26650 polymer lithium batteries, no size limited.
- The protection board is 11.1V 12.6V 60A 3 series lithium batteries charging protection board is adopt precision integrated circuit for fast and safe charging.
- Continuous discharge current (upper limit): 60A (if the heat dissipation environment is not good, please reduce the load current)
