Tp-link Rb911g-5hpacd-qrt Wireless Router

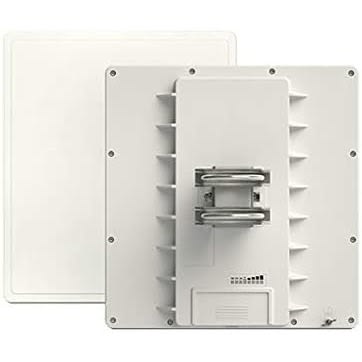

The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n.
Inside is the high power RB911G-5HPacD dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless.
Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds.

Specification:

Product code RB911G-5HPacD-QRT
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11a/n/ac
Number of USB ports 0
Power Jack 1
Supported input voltage 8 V - 30 V
PoE in Yes
PoE out No
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor No
Dimensions 309x320x50mm
Operating System RouterOS
Operating temperature range -30C to +70C
License level 4
Antenna gain DBI 24
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 11.5W
SFP ports 0
SFP+ ports 0
Number of chains 2
Serial port None
