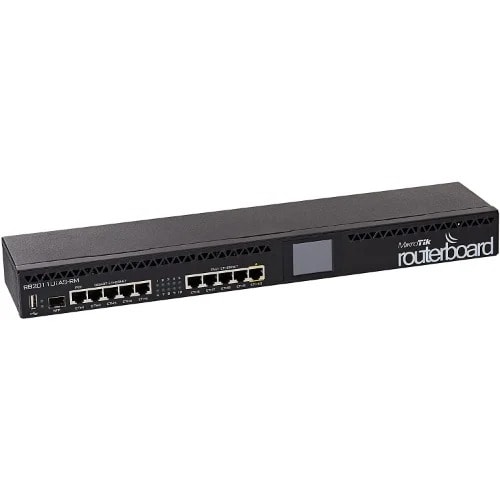

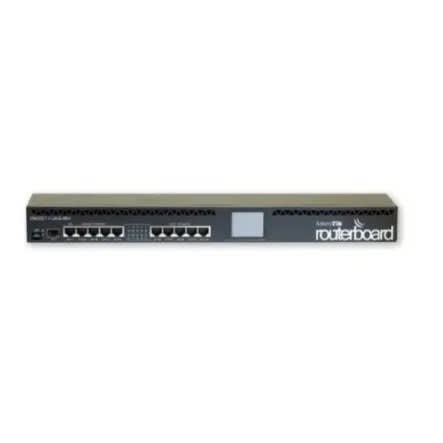

Routerboard Rackmount - Rb2011uias-rm

RB2011UiAS-RM - The RouterBOARD 2011UiAS-RM has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB). New batches of RB2011 series, that are shipping now, have an i letter in the product SKU.

This stands for injector, meaning that LAN port #10 now has PoE output function. It can power other PoE-capable devices with the same voltage as applied to the unit.

Less power adapters and cables to worry about. The maximum load on the port is 500mA at 24V for 12W of output support for the RBSXT series and other CPE devices.

RouterBOARD RB2011UiAS-RM, in comparison with the RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB).

Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration.

SFP cage is also present (SFP module not included.) RouterBOARD 2011UiAS series includes two models-RB2011UiAS-IN (desktop enclosure) and RB2011UiAS-RM (1U rack mount enclosure).

Both models include power supply.

Product Features: Affordability For homes and FTTx installations 5xGigabit, 5x100Mbit, USB No moving parts

Product Specifications: CPU: Atheros AR9344 600MHz Memory: 128MB DDR SDRAM onboard memory Ethernet: Five (5) 10/100 Mbit Fast Ethernet ports with Auto-MDI/X, Five (5) Gigabit Ethernet

ports with Auto-MDI/X Expansion: SFP port Extras: Reset button, Reset jumper LEDs: Power, User, Ethernet Activity Power Options: Jack 8-28V DC; PoE: 8-28V DC on Ether 1 Dimensions: 214mm x

86mm Weight: 146g Consumption: 15W Max. OS: MikroTik RouterOS, Level 5 license.
