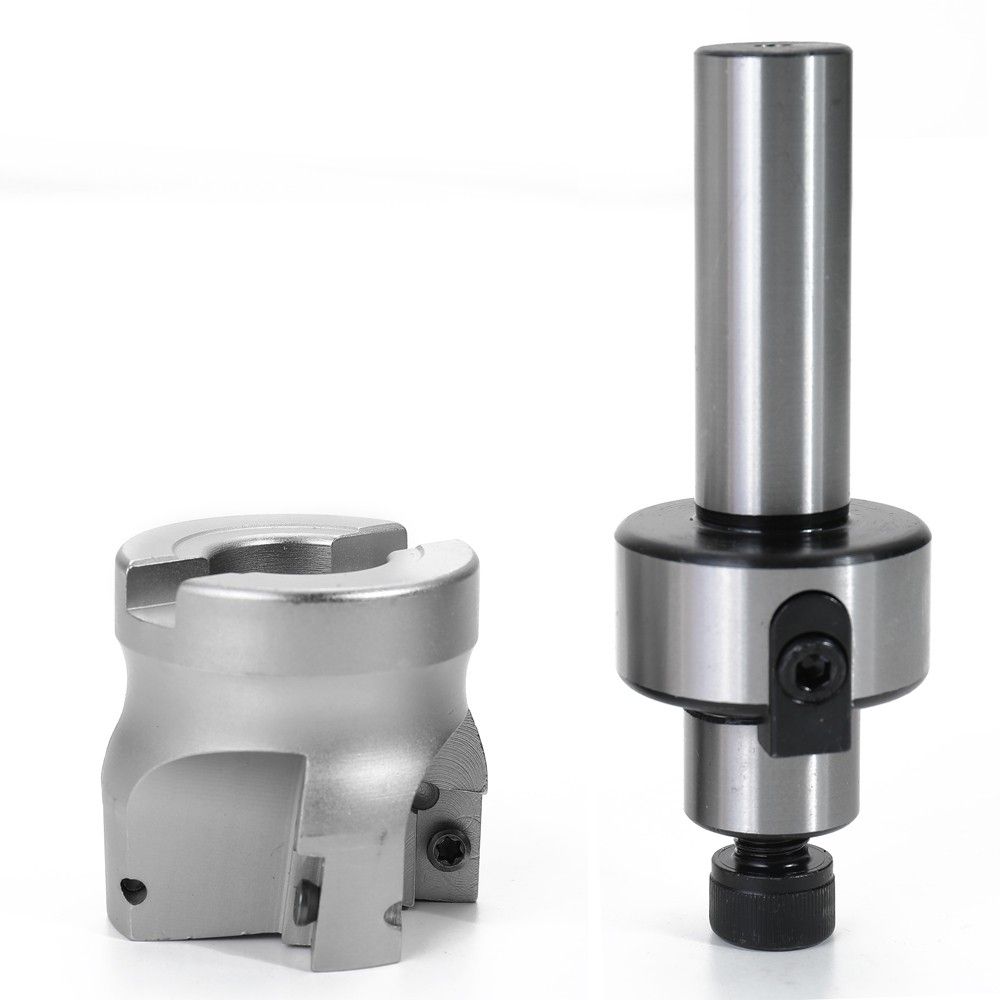

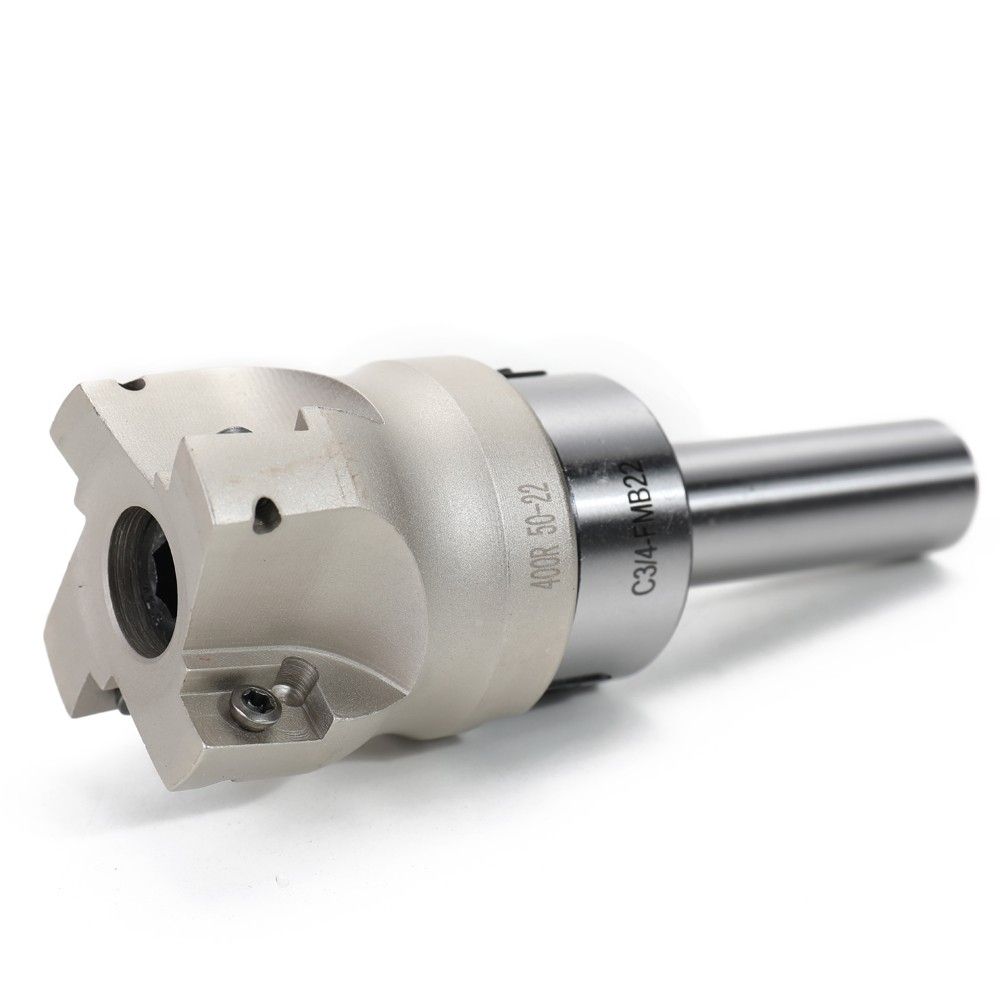

C3/4-FMB22 Straight Shank Extension Rod 400R-50-22 Face End

One set tool includes one 3/4-FMB22 straight shank arbor, 10 pieces APMT1604 H2 blade, one screw, one 400R 50-22 cutter and one wrench suitable for machining steel, stainless steel, cast iron, heat-resistant alloys and other materials.

Features:

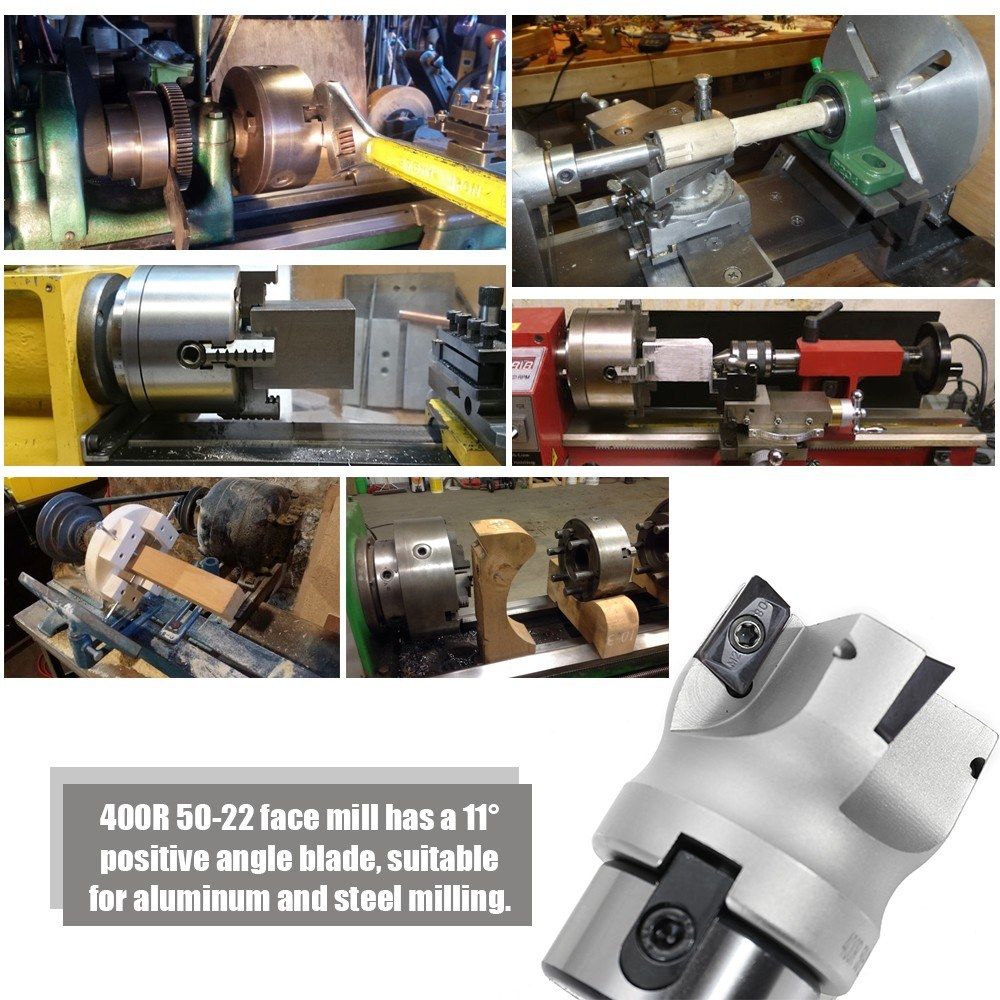

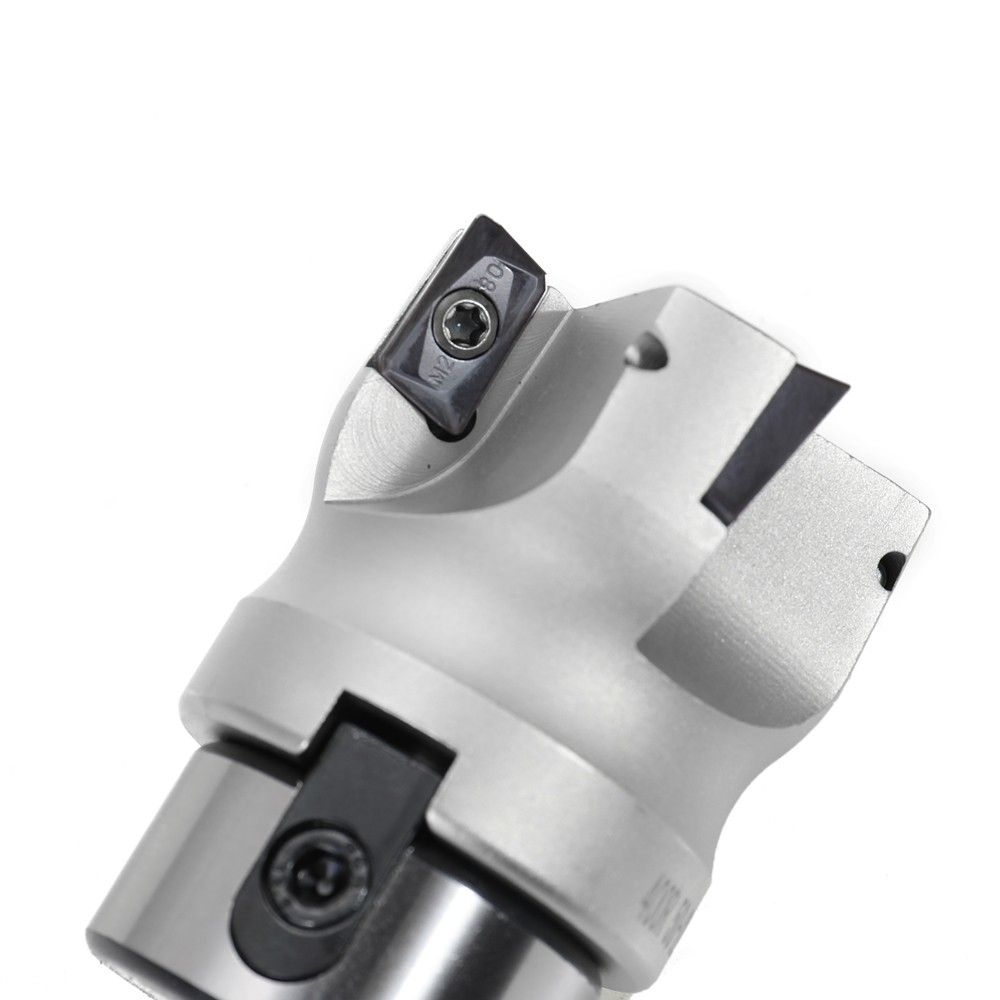

400R 50-22 face mill has a 11 deg; positive angle blade, suitable for aluminum and steel milling.

Screw locking, large capacity space cut, cut a fine row.

Cutting light, small resistance.

The 400R face mill is suitable for cutting, finishing, roughing, plane processing, stepped surface machining, the groove or cut side processing.

APMT1604-H2 roughing, specifically with 400R Arbor, cutter.

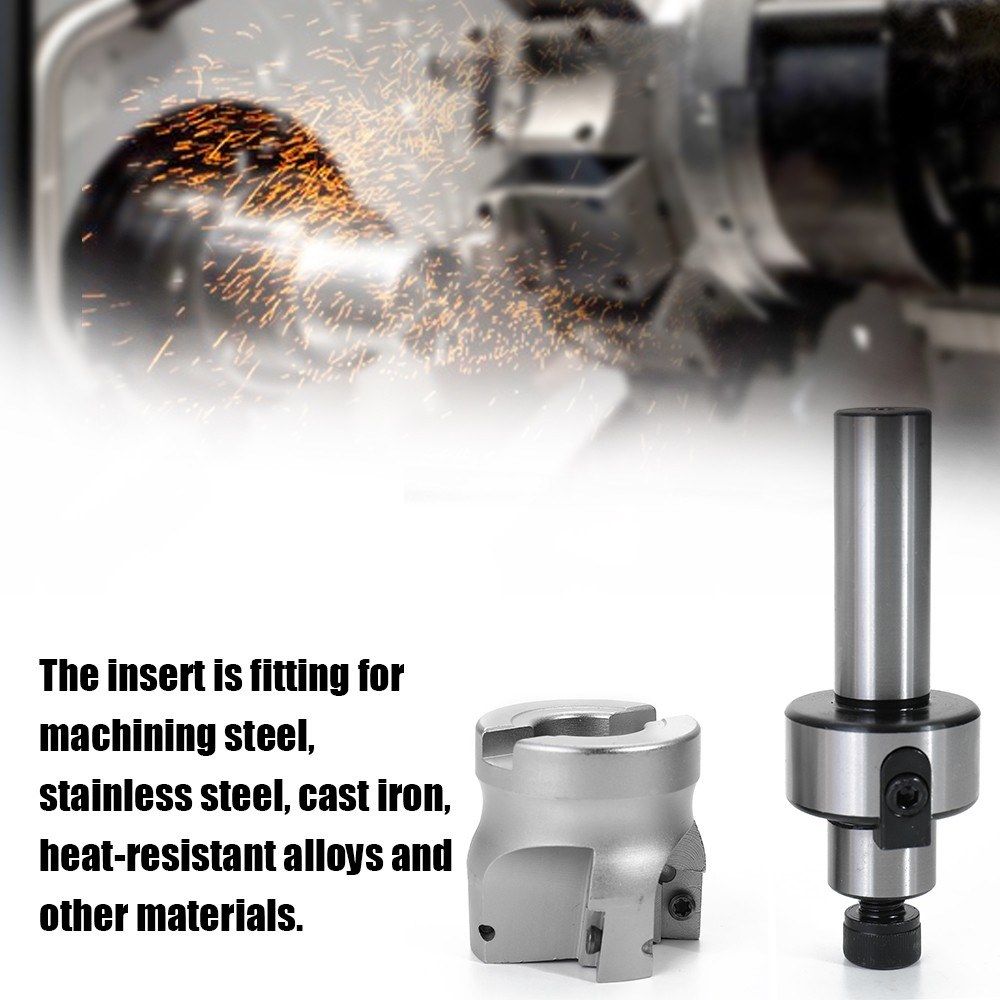

The insert is fitting for machining steel, stainless steel, cast iron, heat-resistant alloys and other materials.

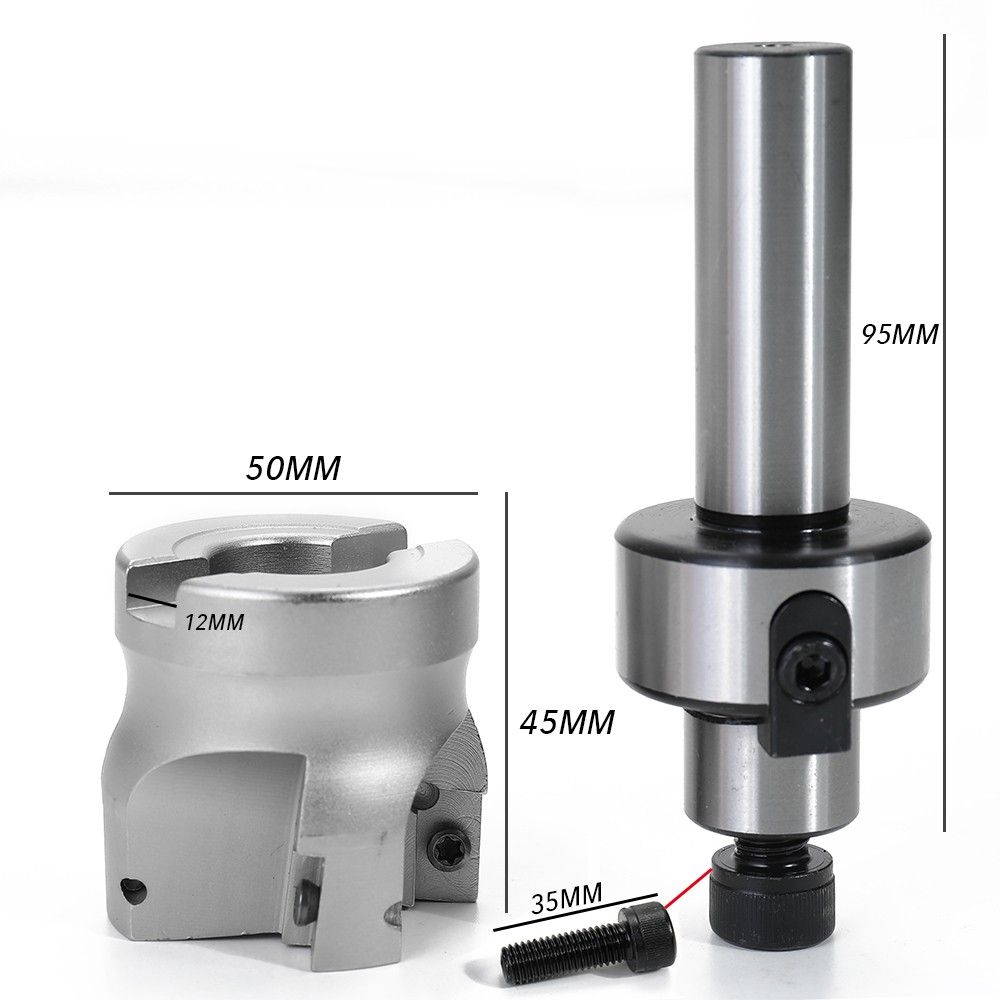

Specifications:

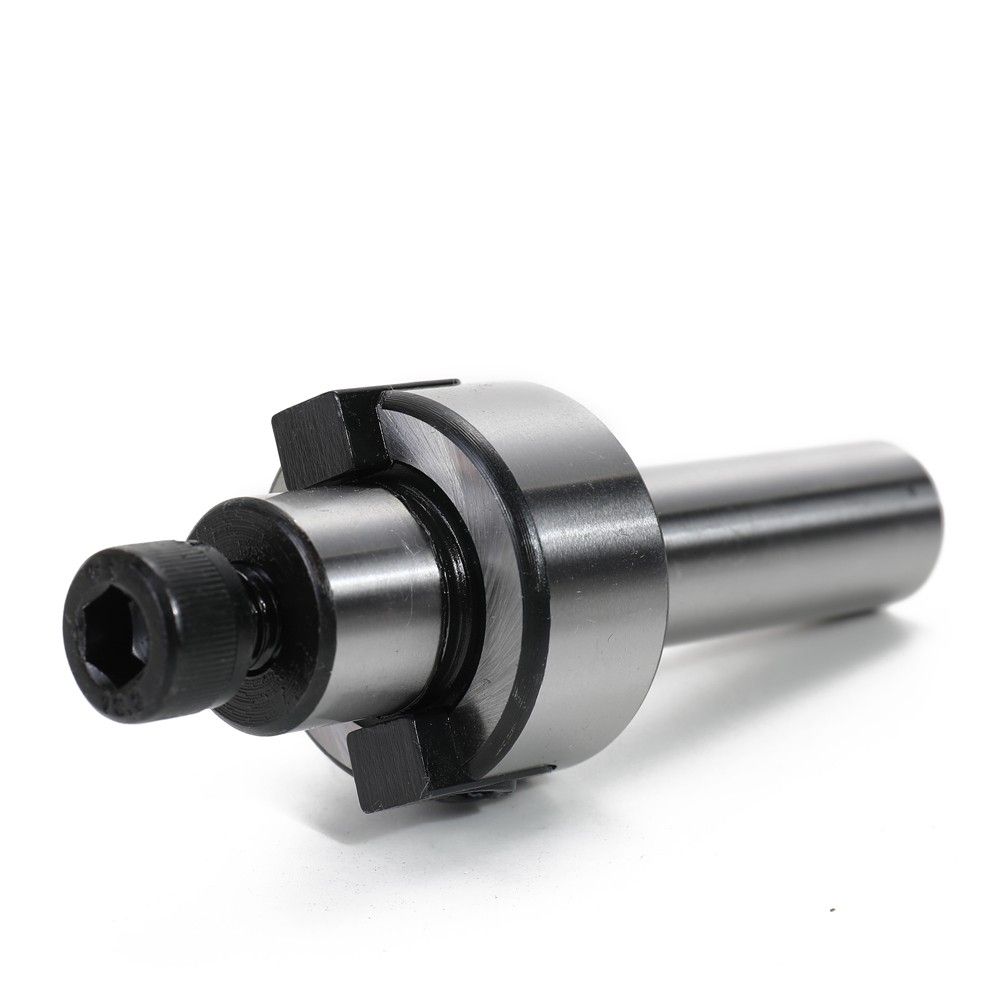

Arbor Tool Holder

Model: C3/4-FMB22

Size: 110 * 40 * 40mm / 4.3 * 1.6 * 1.6in

Cutter

Model: 400R-50-22

Diameter: 50mm / 2.0in

Cutter Bore: 22mm / 0.9in

Size: 50 * 50 * 47mm / 2.0 * 2.0 * 1.9in

Insert

Model: APMT1604 H2

Quality: 10PCS

Size: 16 * 10 * 5mm / 0.6 * 0.4 * 0.2in

Wrench: T15

Size: 85 * 28mm / 3.3 * 1.1in

Suitable For: Roughing, finishing, mining and processing, cut processing tank, stepped surface machining.

Package Size: 130 * 115 * 70mm / 5.1 * 4.5 * 2.8in

Package Weight: 905g / 2.0lb

Note:

Please allow a slight error due to manual measurements.

Due to the different monitor and light effect, the actual color maybe a slight different from the picture color.

Package List:

1 * 3/4-FMB22 Straight Shank Arbor

10 * APMT1604 H2 Blade

1 * Screw

1 * 400R 50-22 Cutter

1 * Wrench
