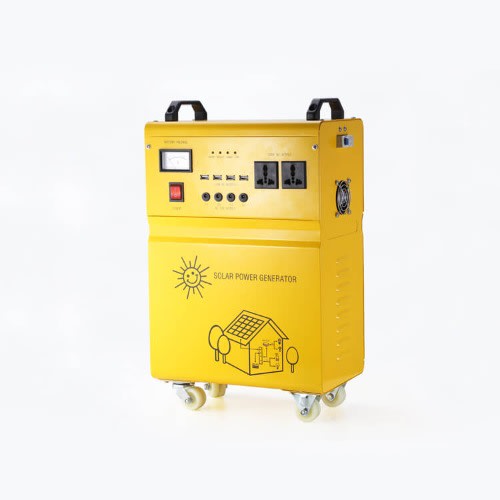

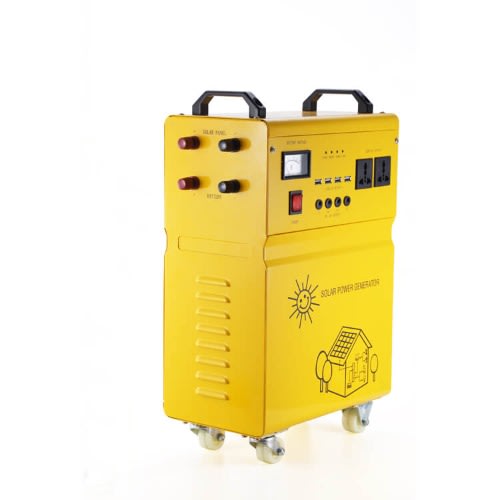

Solar Generator - 500W With 4Led Super Bright Bulbs

• PRODUCT FUNCTION

• SPECIFICATION

• OPERATION DESCRIPTION

1. Charging the Solar Generator : plug the solar panel cable in the socket in generator where marked ,expose the solar to direct sunlight with face up . battery indicators show the current battery capacity and keep flashing mean the generator in charging ,4 indicator are all on without flashing means the charging is finished. Generator must be charged as soon as possible once one battery indicator is left in red and flashing , as the battery on over-discharge status . the generator switch can be placed at OFF position when the generator is charging by solar.

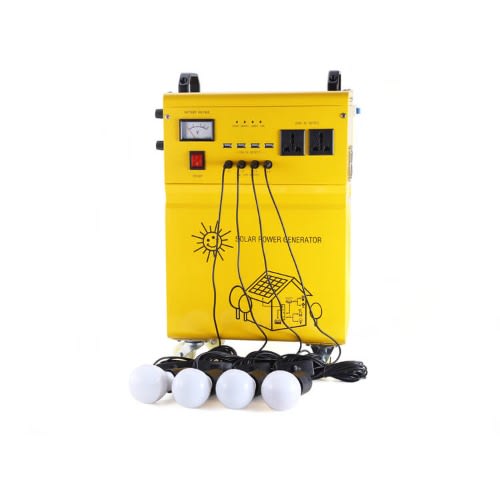

2. Using the bulbs : connect the bulbs with bulbs cables , plug the cable into the sockets in the generator where marked , turn on the generator switch . battery indicator show the current battery capacity indicates the generator is on working status . turn on the switch on bulb cable to light up the bulb.
3. Charging mobile phone : find the right connector from the 10-in-1 USB charging cable provided or other phone charging cable , connect the charging cable with mobile phone , then plug the USB end of the cable into the socket in the generator where marked , turn on the generator switch to charge the mobile phone. Light and USB mobile charging can work at same time when the solar is charging by solar panel . the solar panel cable also has output for charging mobile phone directly.

• GENERATOR MAINTENANCE

1. The generator should be fully charged for the first time use.
2. The generator should be charged at least once every 6 month ,and each time of charging should not be less than 8 hours (under direct sunlight)
3. Always put the generation in a cool, dry place especially when charging by solar ( put solar panel under direct sunlight and put generator under cool and dry place)
4. Keep the surface of solar panel clean .
5. Pull out the bulb cable and solar panel from generator, take out the fuse at the back of generator If the generator is unused for long time , put back the fuse before next use

• WARNING

1. All the light sources are high brightness LED chipsets, please avoid direct eyes contact when lighting.
2. Any action such as throw, drop , fall, knock are all prohibited.
3. Keep away from fire or any corrosive.
4. If the fuse at the back of generator is burned, replace if with the extra fuse provided in the package.

• PRODUCT LIST- What is in the box

1. Solar Panel X 1
2. Generator X 1
3. 10-In-1 USB Charging Cable 3
4. 5W Dc12V Led Bulb X4
5. 5M Cable For Bulb x4

• NOTE

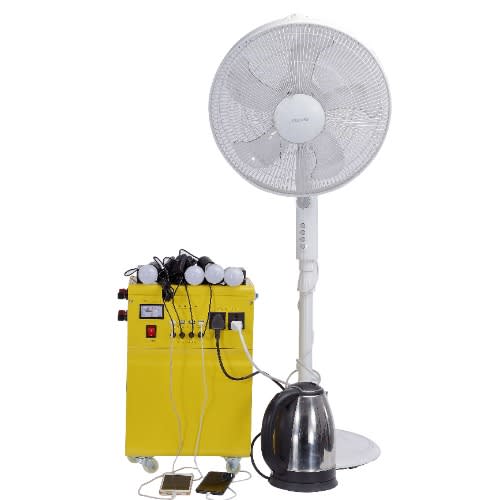

The solar genrator does not include fan. The fan is put for demonstration purposes
