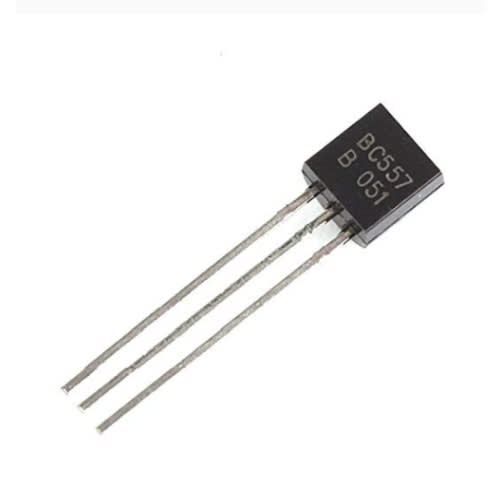

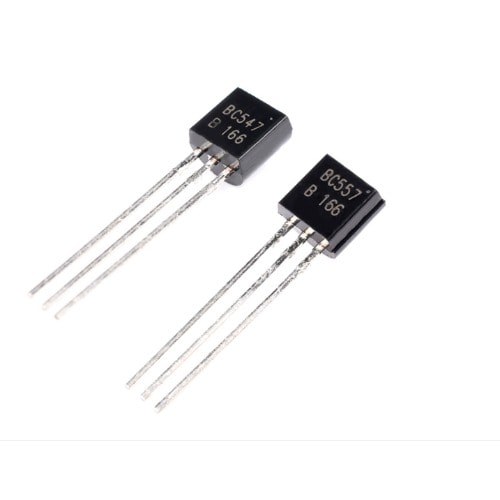

BC547,

BC557

A377,

C945,

S9014

S8550

13001

S8050

are general purpose transistor, the low voltage, and low power capability of this device make this transistor more reliable to use in wider common applications.

Transistors are one of the very important components used in electronic circuit constructions. Transistors can be found almost everywhere; from simple relay driver circuits to complicated motherboard circuits. In reality, your microcontrollers and microprocessors are nothing more than a collection of many transistors synthesized to do a collective operation.

Specifications:

• Package Type: TO-92 (Through-Hole)
• Type: NPN, PNP

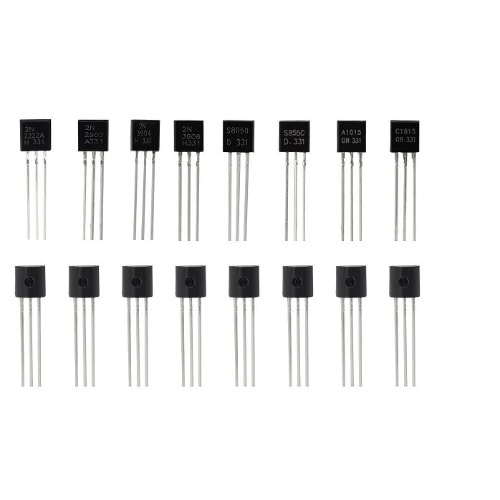

• Transistors: BC547, BC557, A377, C945, S9014, S8550, 13001 and S805 = 25 each value totaling 200pcs
• Collector Current (Ic): 100mA
• Peak Collector Current (Icm):150mA
• Total Power Dissipation(Ptot): 400mW
• Collector Emitter Voltage(Vceo): 45V
• Saturation Voltage (Vce(sat)):140mV
• Transition Frequency(Ft): 270MHz

Applications

• Switching
• Driver stage amplifier action
• AF amplifier
• Can be used Darlington pair
• Used in making led flasher
