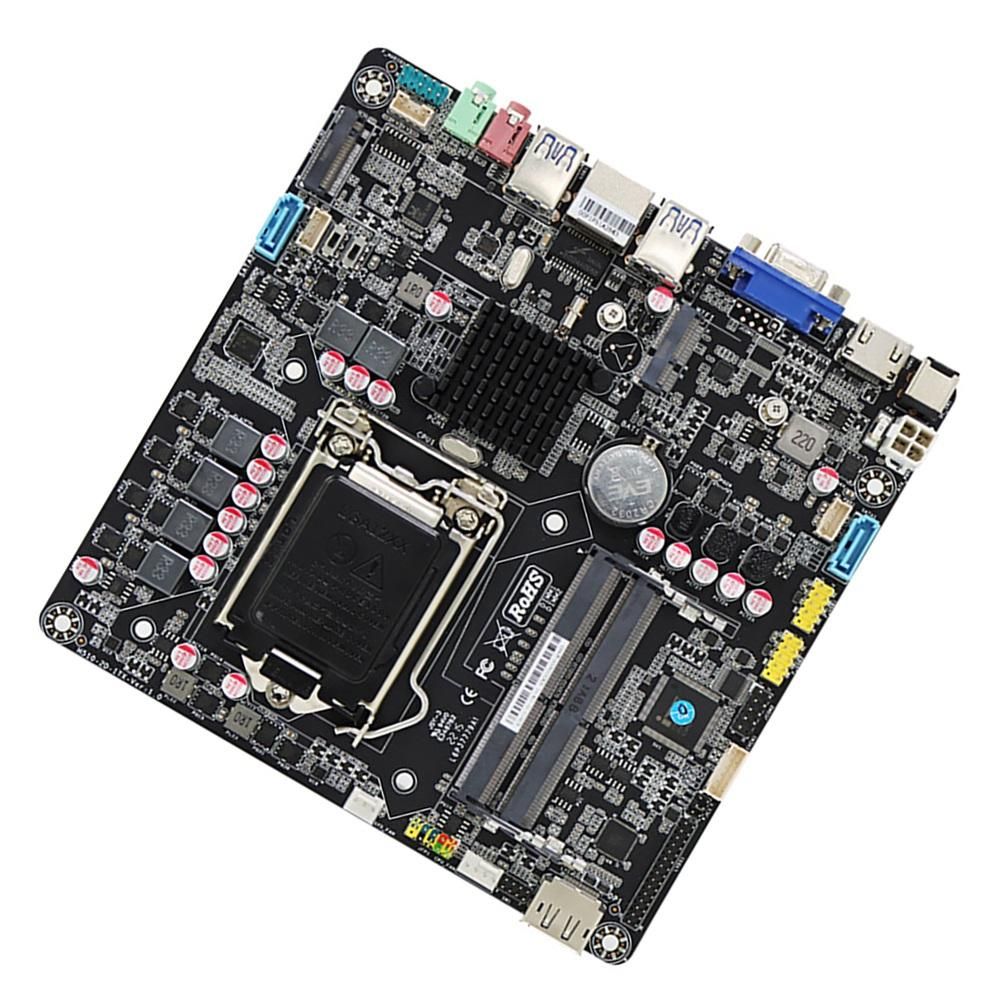

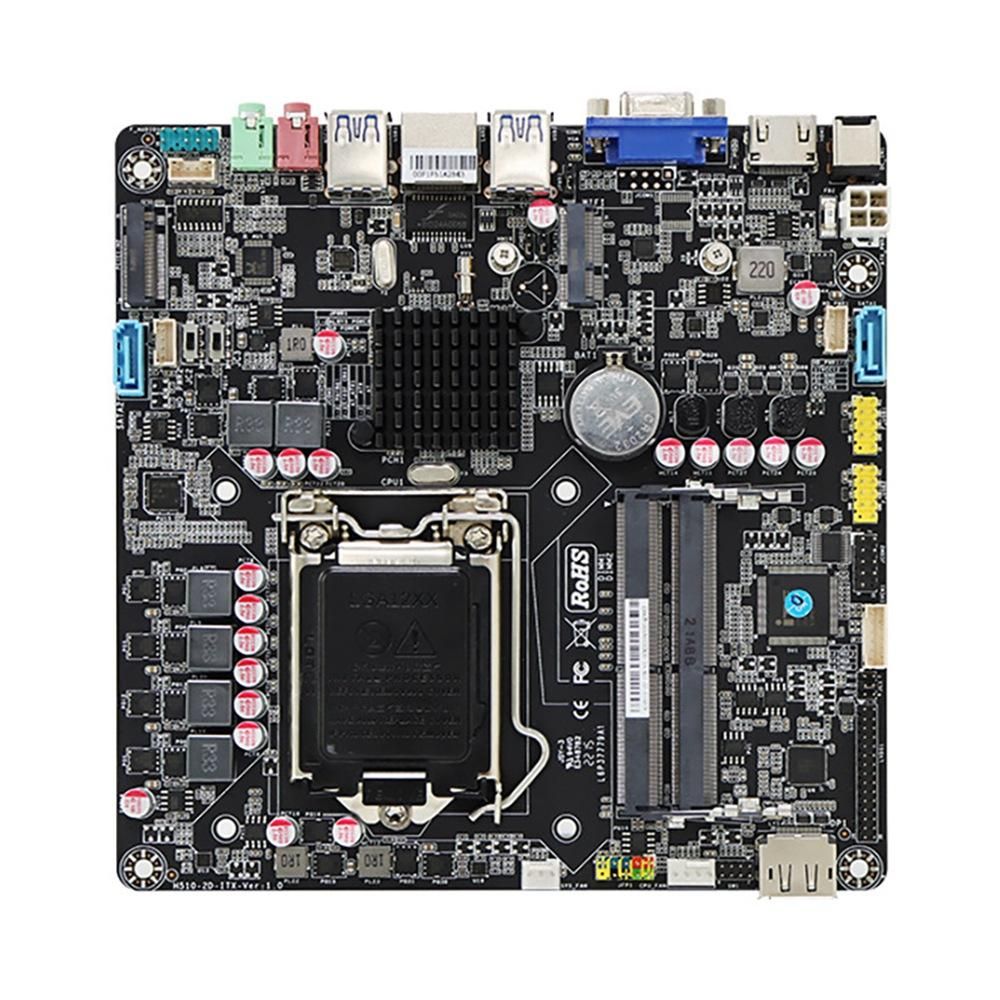

H510 ITX Industrial Control Motherboard for Intel 10/11 Core I7/I5/I3 CPU DDR4 2400MHZ 2 Channel Windows10 No GPU Slot

Product Name: Industrial Control Board
Model: H510(No GPU slot)
CPU processor: Support for Intel 10/11 generation Core i7/i5/i3 processors
Chipset: H510
Memory: 2* DDR4-2400MHZ (dual channel), maximum support 32GB memory

BIOS: AMIBIOS 64Mbit Flash

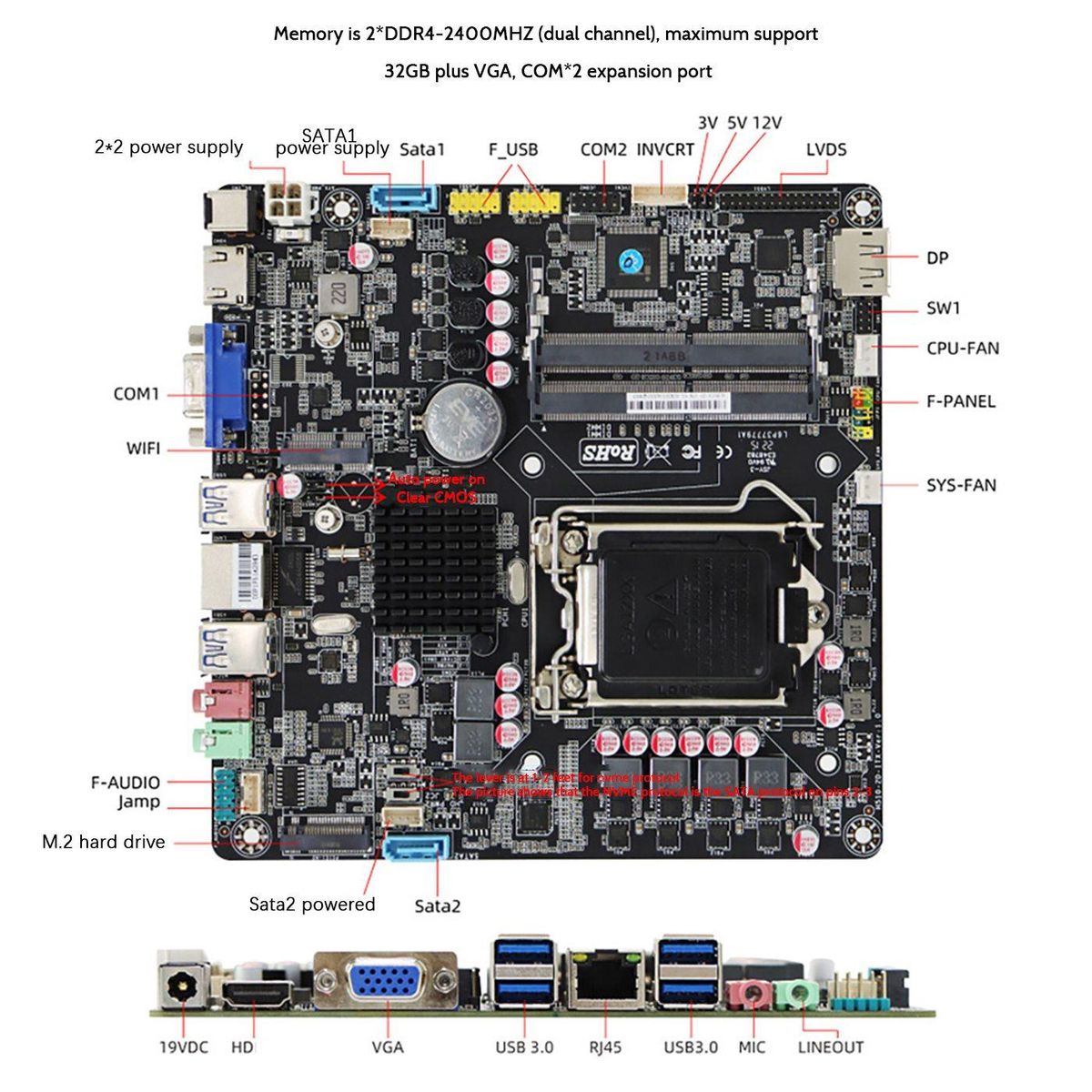

Front I/O Interface:
2 groups of USB headers, support 4 USB2.0 ports
1 Smart Cooling CPU Fan Connector
1 system fan connector
1 set of LVDS pin headers (support dual channel 8BIT)
1 Invert interface
1 DP interface
2 SATA ports
2 SATA power ports
2 COM port pins
1 set of Front panel pin headers
1 set of speaker pin headers (5W/CH)
1 set of AUDIO pin headers
Rear I/O Interface:
1 DC power input 19V
1 HDMI-compatible digital video output interface
1 VGA output interface
4 USB3.0 ports
1 LAN port
1 audio input interface
1 audio output interface
Onboard MINI_PCIE: 1 M.2 HDD, 1 M.2 WIFI
On-board serial: 2 SATA ports
Onboard LAN: 1 Realtek 8111H, 10/100/1000 Ethernet Controller
Onboard audio chip: ALC662, 2-channel output
Operating system: Windows 10
System monitoring and management: system power management, temperature management, voltage management
Product size: 170 x 170mm
Material: PCB+Metal
colour: black

Package Contents:
1 x H510 Motherboard

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
