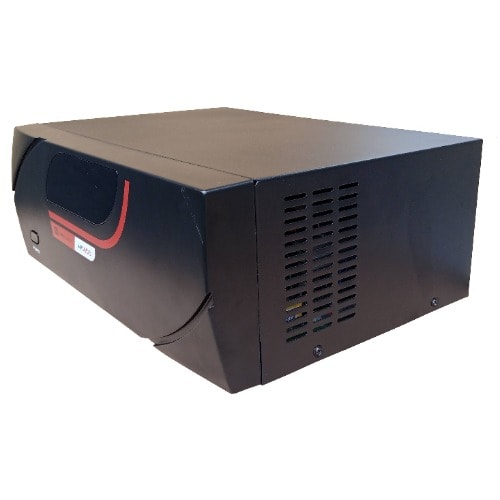

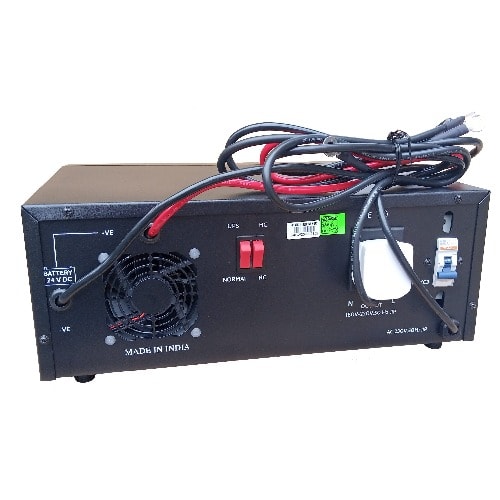

M1600 1.6kva 24v Pure Sinewave Inverter/ups.

This Mercury Inverter ensures home/office users the always-on power supply with the exceptional power performance comes at a comfortable pricing. Featuring the high-efficiency conversion design, the Power Inverter supplies long-lasting and reliable power to various appliances and provides longer backup for equipment. The defensive mechanisms of fast changeover guarantees uninterrupted power supply and overload protection ensures the efficiency of appliances as protection against overload and load shedding is secured.


Benefits:

1.6kva 24volts Power.
High-efficiency DC-to-AC Conversion.
Compact, Sleek
Fast changeover
LED Status Indicators
Overload Protection
Built-in Intelligent Charger
Auto-Restart / Auto-Charge

Features

• for fast & smooth charging
• Auto sense intelligent charging (ASIC) adjustment
• Highly robust & reliable Ideal for computers
• User-selectable charging current
• Generator compatible
• Wide charging voltage range
• Negligible battery water loss
• Low Battery Warning
• Overload Warning
• Over Temperature protection
• Short circuit protection
• Backup indicator

SPECIFICATION

• Voltage Range 180 VAC – 265VAC ± 5 VAC (UPS Mode)

• 100 VAC – 280 VAC ± 15 VAC (NOR Mode)
• Line Low Detection 180V ± 5V (UPS Mode) / 100V ± 15V (NOR Mode)
• Line Low Comeback 190V ± 5V (UPS Mode) / 110V ± 10V (NOR Mode)
• Line Low Detection 265V ± 5V (UPS Mode) / 280V ± 15V (NOR Mode)
• Line Low Comeback 255V ± 5V (UPS Mode) / 270V ± 10V (NOR Mode)
• Frequency Transfer Input Frequency 45-55 Hz

CHARACTERISTICS (AC)

• Inverter Full Load Power 1200W

• Power Factor 0.8 factor (on resistive load)
• On-Line Mode Pure Sine Wave
• Battery Mode Pure Sine Wave
• On-Line Output voltage Follow the Line Voltage
• Battery Mode Output Voltage 200 VAC ± 10%
• Transfer Time (No-Load) <15 ms
• The frequency at Battery Mode 50 Hz ± 1 Hz

Characteristics (DC)

• DC Supply Voltage 24V

• Battery Floating Charge Voltage 27.0 VDC ± 0.4 VDC
• Charge Current <15 A
• Battery Voltage Low Alarm 21.2 VDC ± 0.4 VDC
• Battery Discharge Protection 20.8 VDC ± 0.4 VDC
• Over Charge Protection > 30 VDC ± 0.4 VDC
• Color Box Parameters 20×16.5×10.6 (LxWxH) Inch
• Weight 17.2 (Kg)
