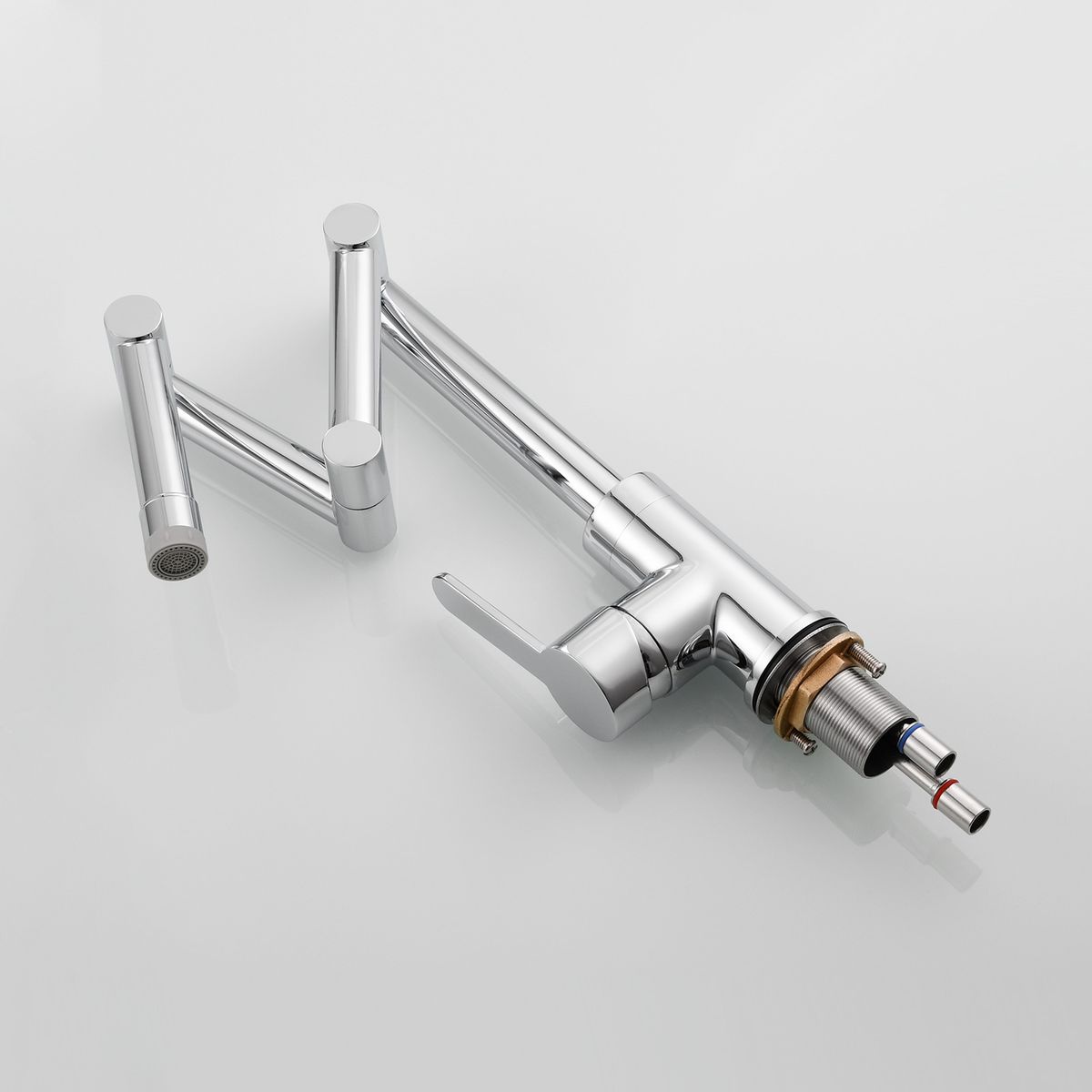

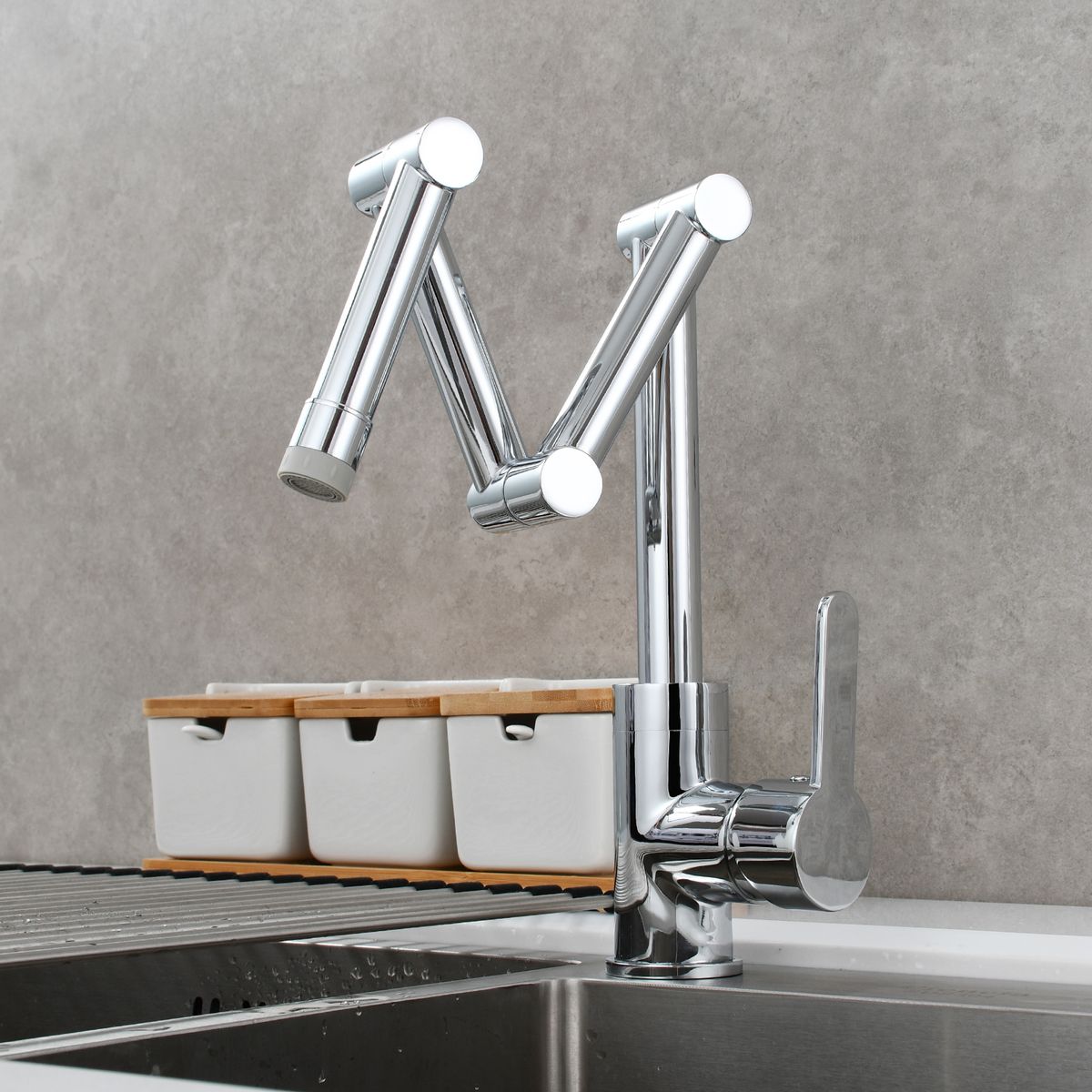

Deck Mounted Chrome Three-Section Extension Faucet,BC1231A

Feature

1. It is made of brass, finished in corrosion resistant chrome.

2. The 3 swivel joints allow the pot filler to easily fold up out of the way when not in use.

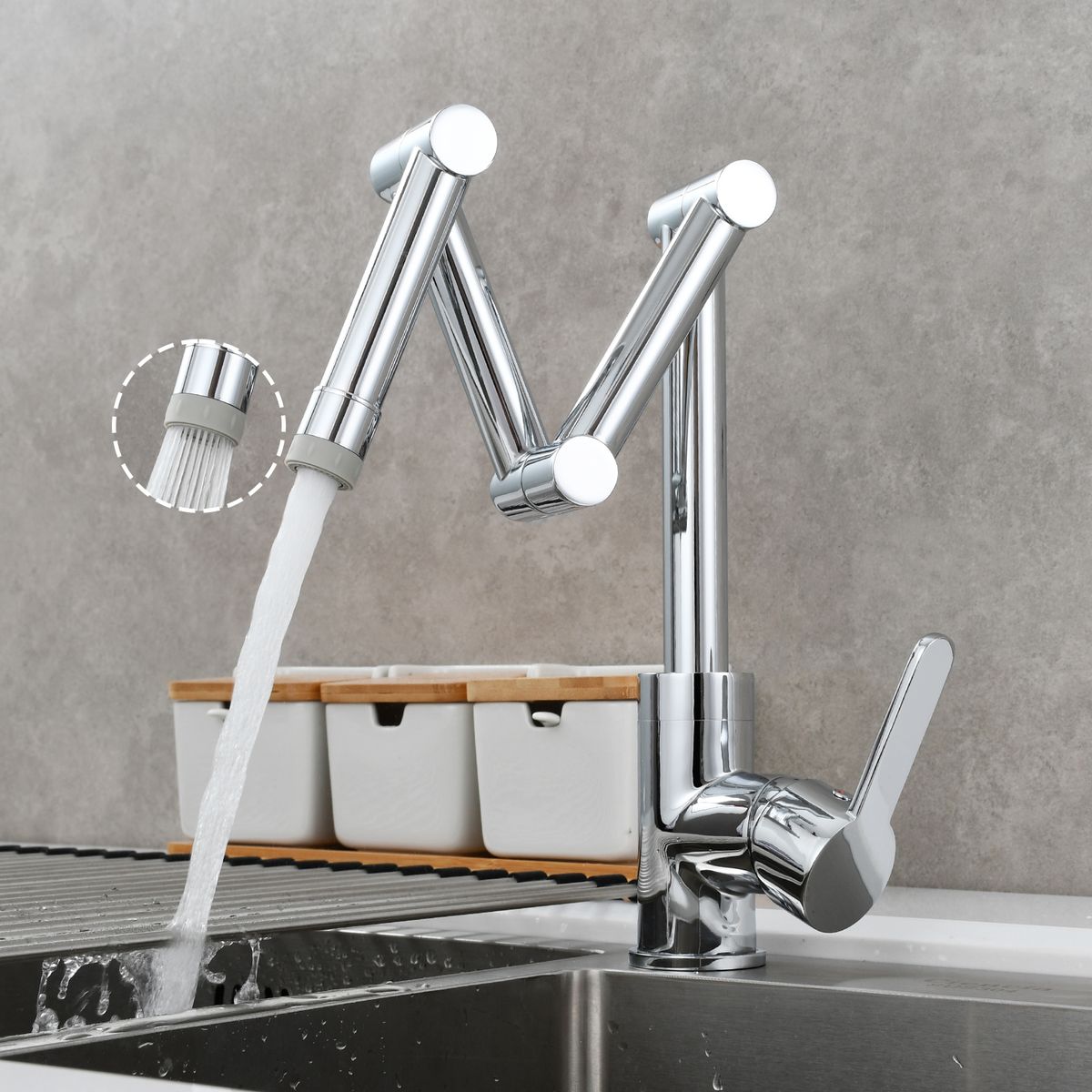

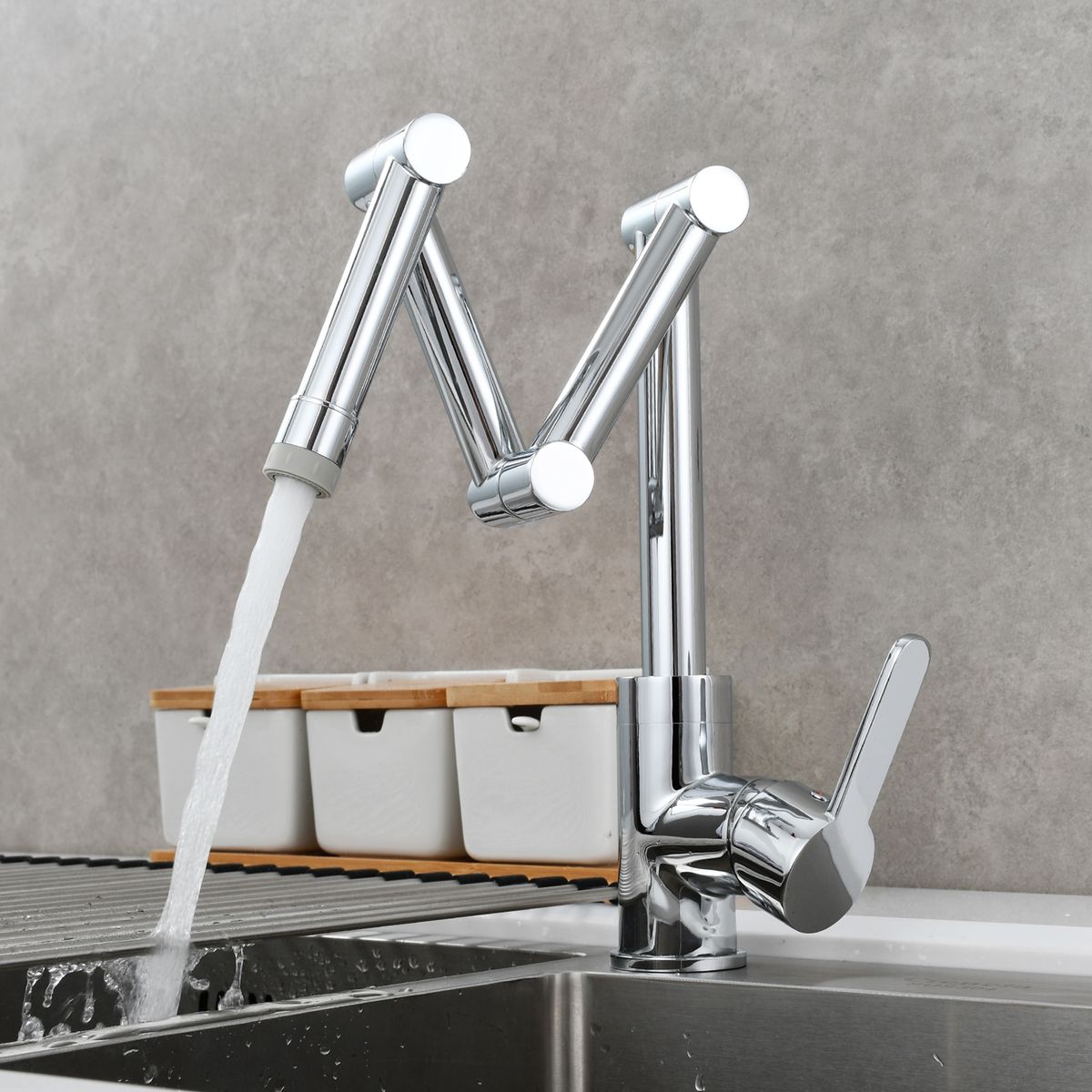

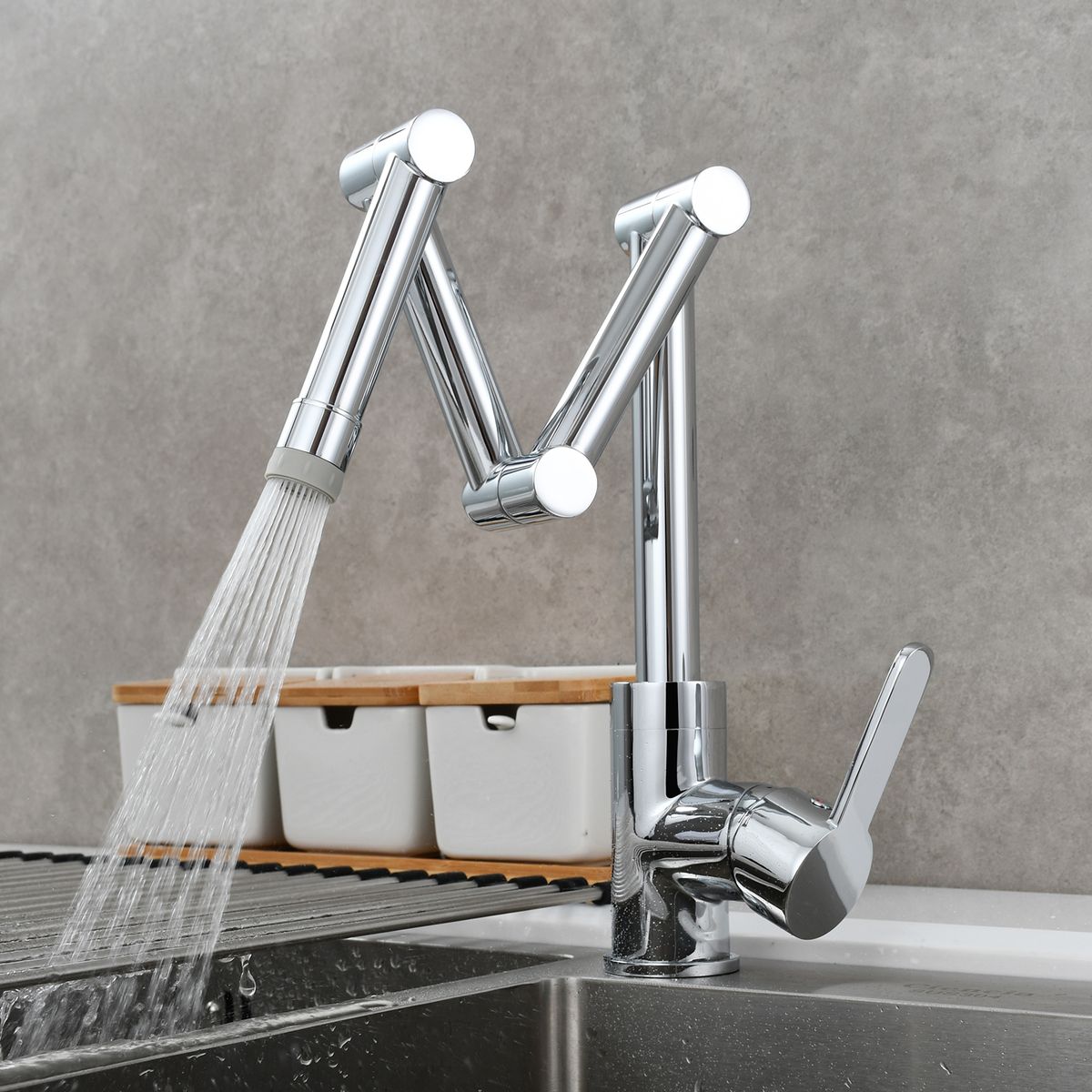

3. This kitchen faucet can switch stream and spray mode easily, stream for filling water, spray for rinsing, 2 way spray settings meet your different needs.

Specification

Material: Brass

Finish: Chrome

Number of Holes: 1

Number of Handles: 1

Water Mode: Stream and Spray

Water Feature: Mix Hot and Cold

Installation Type: Deck Mount

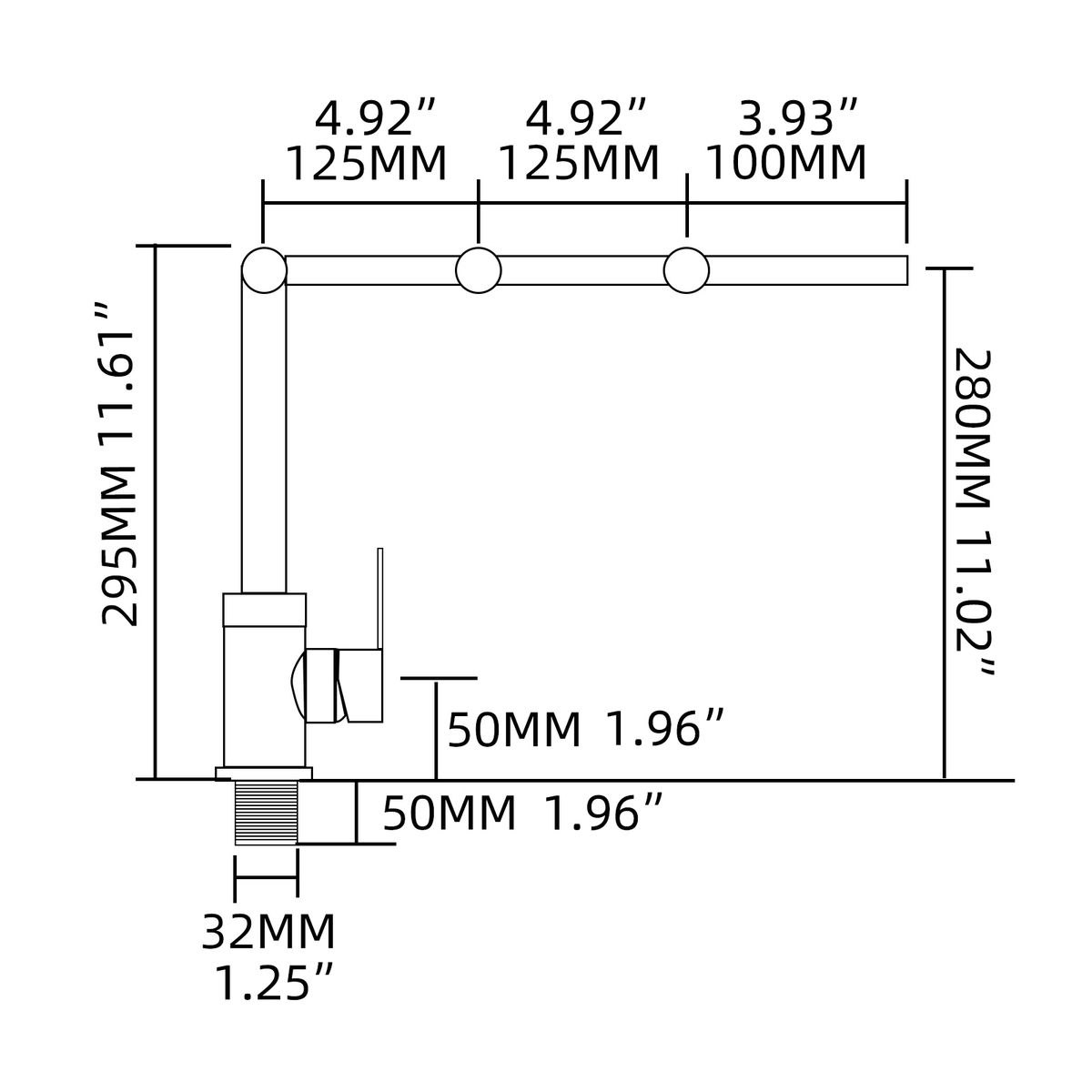

Dimensions

Overall Height: 11.61" / 29.5 cm

Spout Height: 11" / 28 cm

Spout Reach: 13.77" / 35 cm

Installation Steps

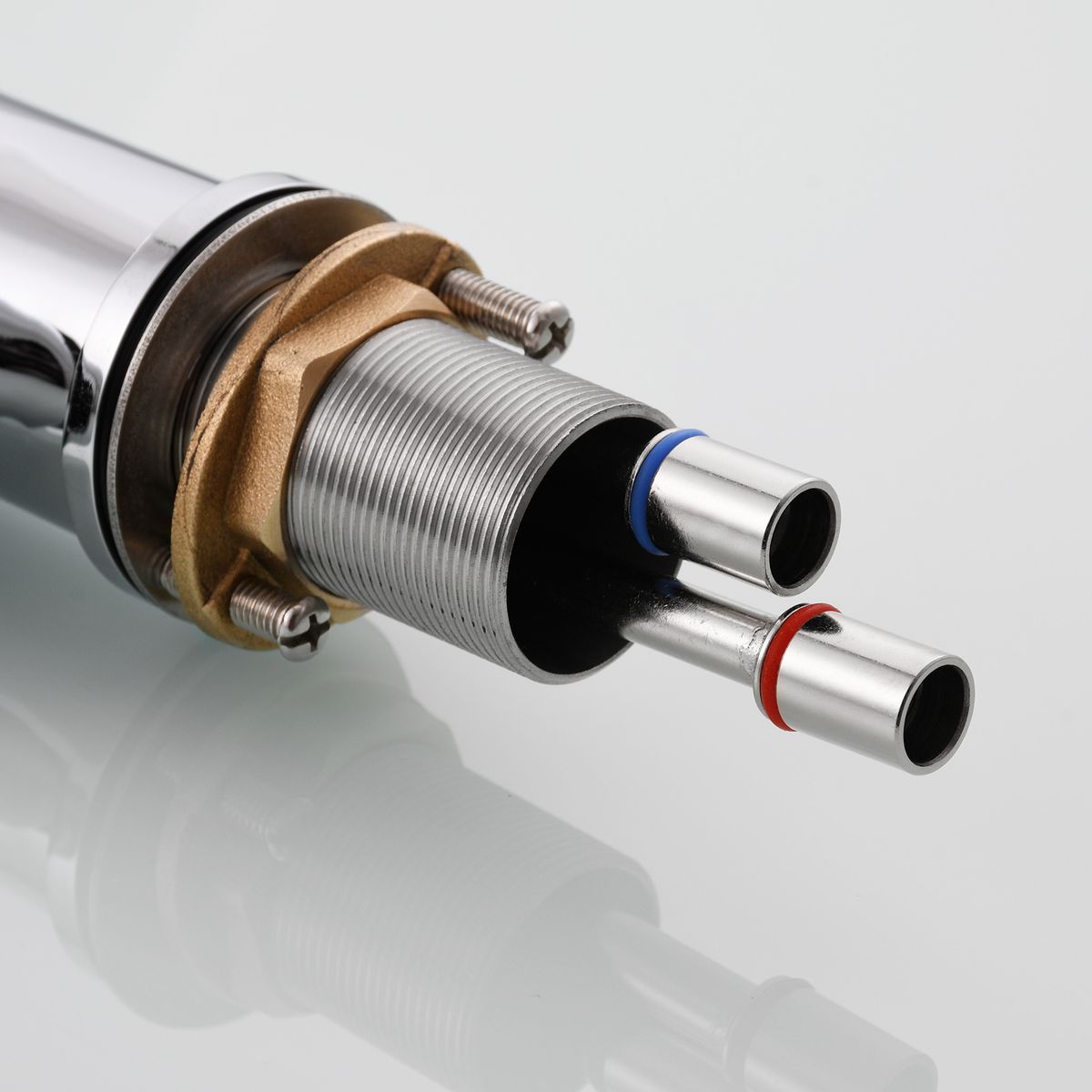

1. Screw the supply lines into the faucet body by hand, then connect it to the mounting solenoid, and place the O-ring in the groove under the faucet body.

2. Put it into the sink installation hole and screw the rubber gasket, iron gasket and mounting nut into the mounting screw from the bottom of the sink in turn.

3. Finally, tighten the small screws at both ends of the screw wrench, and the installation is complete.

What's In the Box

1 x Kitchen Sink Faucet

2 x 1/2" Water Supply Lines
