DS3230 30KG Digital Servo IP66 Waterproof Stainless Steel

Features:

Maximum torque can up to 35kg.cm (6.8V). High-precision stainless steel gear with hard anodizing for better accuracy and longer service life.

The operating speed can reach 0.17 seconds /60 deg;(6.8V). And coreless motor offers high speed, amazing efficiency, but low power consumption.

Great choice for university professors and students who are interested in developing software for robot parts.

Waterproof design, its waterproof level is IP66, the steering gear can completely not be afraid of flooding.

After-sales Service Guarantee: Any problem, please contact our store without hesitation. Honor to serve you!

Specification:

Name: 35KG Digital Servo

Main Material: Plastic, Aluminium Alloy, Stainless Steel

Size: 4 x 4 x 2 cm

Weight: 69g

Motor: Carbon Brush Motor

Storage Temperature: -30 deg;C ~ 80 deg;C

Operating Temperature: -25 deg;C~70 deg;C

Operating Voltage: 4.8 - 6.8V

Operating Speed (5.0V)：0.2sec/ 60 deg;

Operating Speed (6.8V): 0.17sec / 60 deg;

Stall Torque (5.0V): 29.5 kg/cm

Stall Torque (6.8V): 35kg/cm

Pulse Width Range: 500~2500 mu;sec

Neutral Position: 1500 mu;sec

Operating Degree: 270 plusmn;3 deg;(500~2500 mu;sec)

Dead Band Width: 3 mu;s

Rotation Direction: Counterclockwise (1000~2000 mu;s)

Cable Length: 285mm

Package Information:

Size: 8 x 8 x 2 cm

Weight: 75g

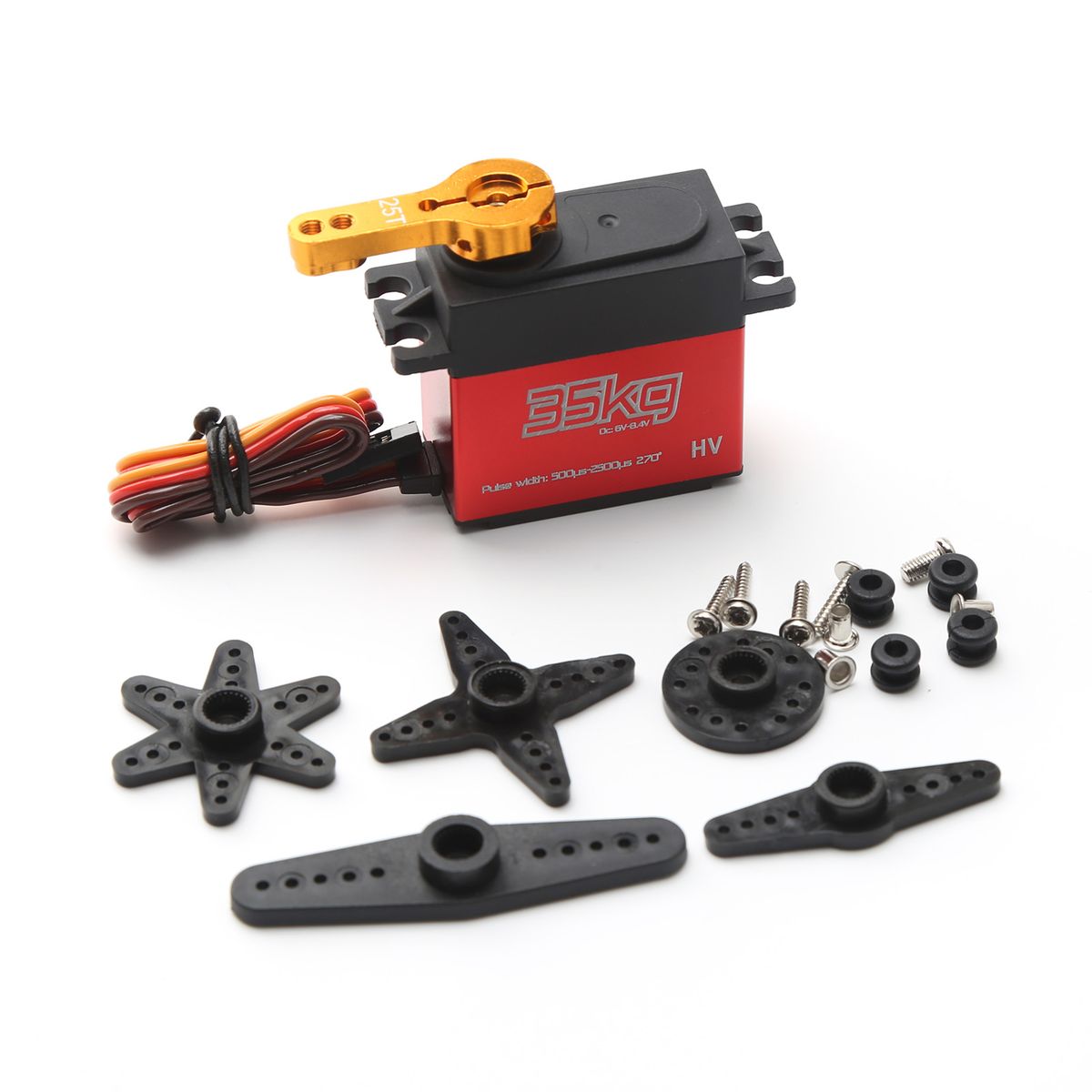

Package List:

1 x 35KG Digital Servo

1 x 25T Rocker Arm Set
