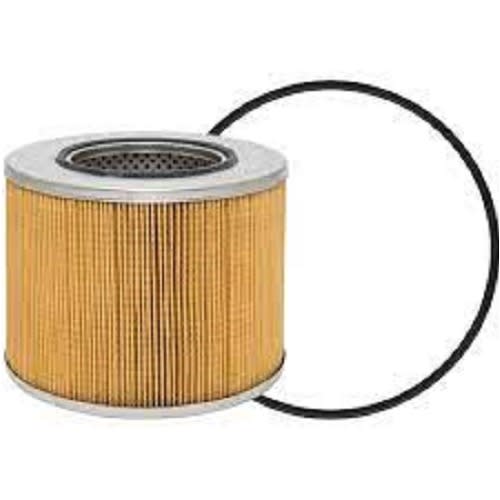

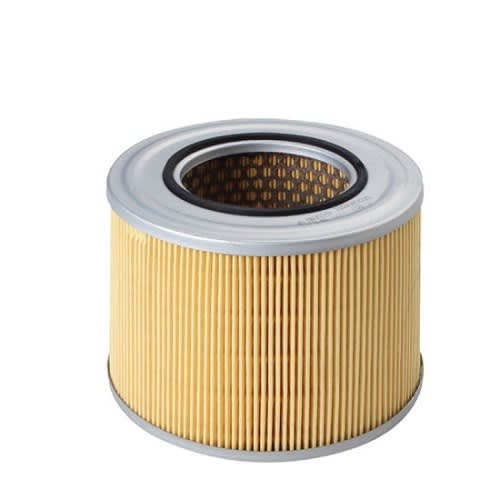

The Dahl 200 Element is a component of the fuel or water separator set (filters), designed to eliminate the possibility of diesel fuel injector failure; by removing water and other solid contaminants that may be present in diesel before reaching the fuel pump or injector. When this happens, it removes the lubricating coating on the injection components; resulting into wear, corroded surface and possible loss of pressure. In order to minimize cost, the elements in the filter used in the separation process, could be replaced and used in the existing compartment (the cup) instead of buying the complete set, and this does not pose any adverse effect nor affect the effeiciency of the process.
Outside Diameter:6 1/16 (154.0)
Inside Diameter:1 15/32 (37.3) & 3 9/32 (83.3)
Length:4 5/8 (117.5)
Includes:A. Gasket: [1] Included; F. Gasket: 200-15A; O-Ring: [1] Attached
Micron Rating:5 Nominal; 25 Absolute
Application:DAHL 200 Series Fuel Filter/Water Separator Units
