NF-F001 3G SDI To AV + SDI Scaler Converter

NF-F001 3G SDI to AV + SDI Scaler Converter
About that product

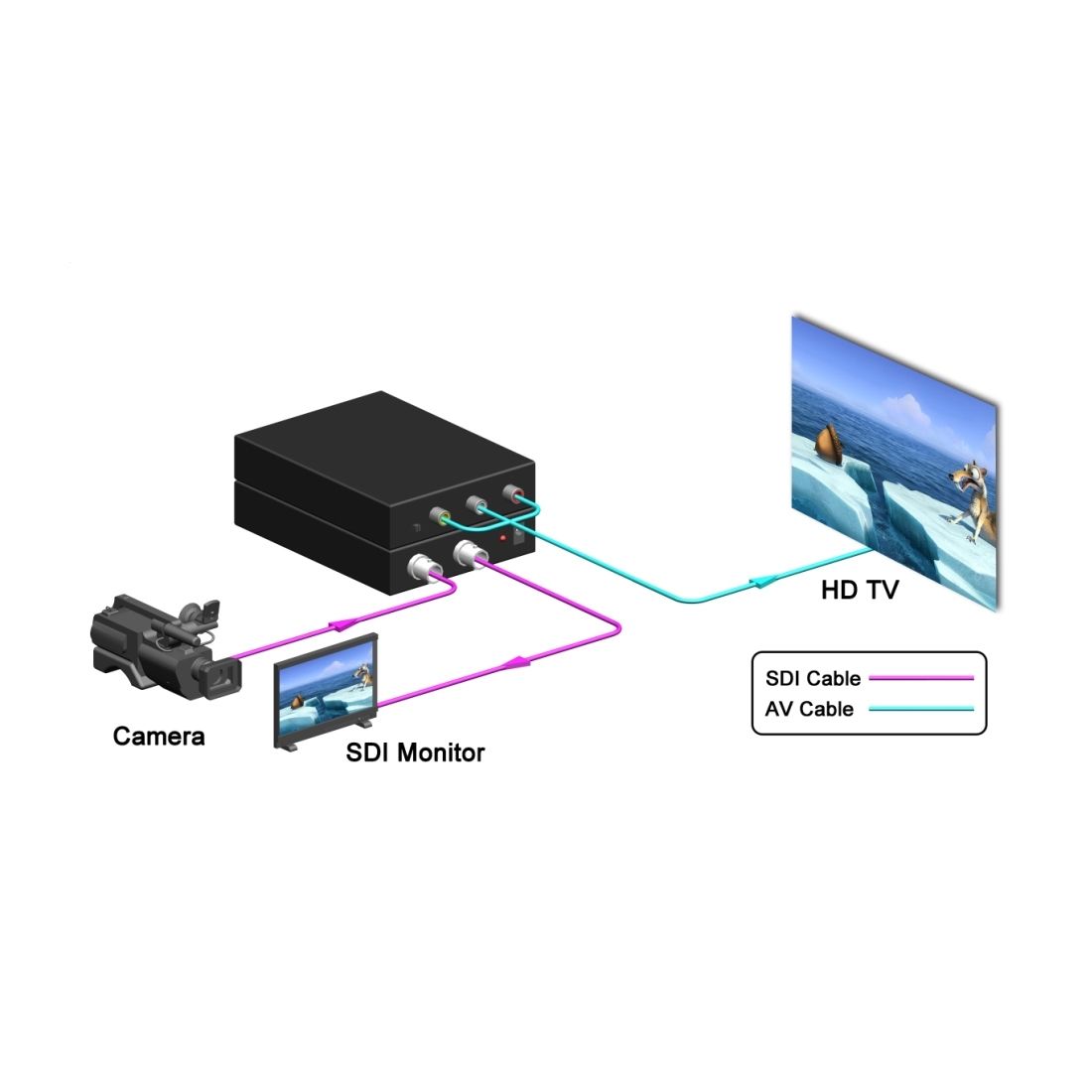

The SDI to AV converter allows SD-SDI, HD-SDI and 3G-SDI signals to be displayed on CRT or HDTV, while ensuring that the high bit rate of 2.970Gbit / s gives you fast signal transmission without any loss. For professionals, this means that it is now easier to distribute and extend your 3GSDI signal, and because of the built-in converter, you can display your work on your TV. In addition, due to the loop designed through 3G-SDI, users can enjoy SDI and AV at the same time.

:
1. SMPTE standard: 425M Class A and B, 424M, 292M, 259M-C
2. SDI transmission rate: 2.970 Gbit / s and 2.970 / 1.001 Gbit / s
3. SDI input / output resolution: SD: 480i @ 60,576i @ 50; HD: 720p @ 50 / 60,1080i @ 50/60; 3G: 1080p@24/25/29.97/30/50/59.94/60
4. CVBS output resolution: PAL / NTSC

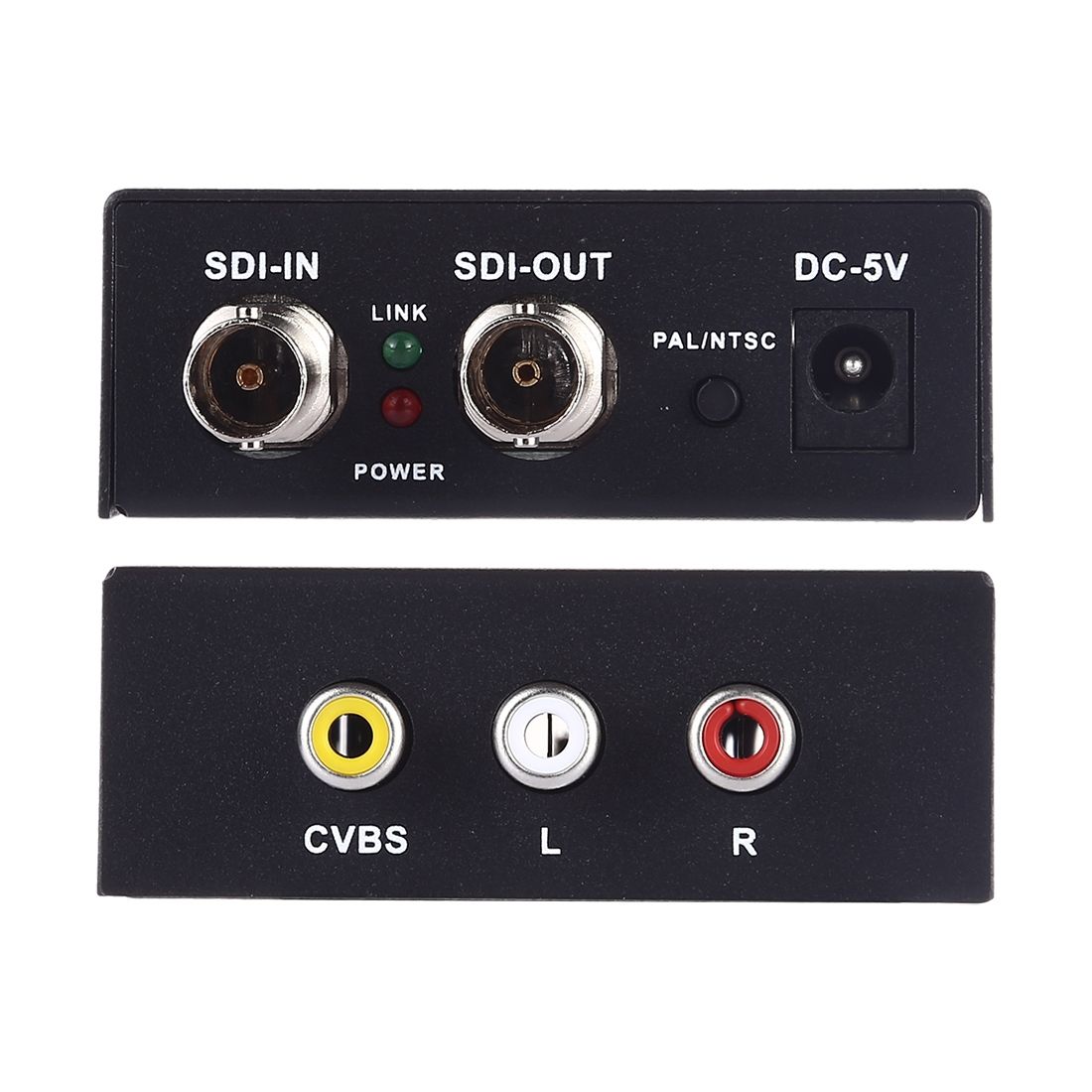

5. Input port: 1 x BNC (SD / HD / 3G-SDI)

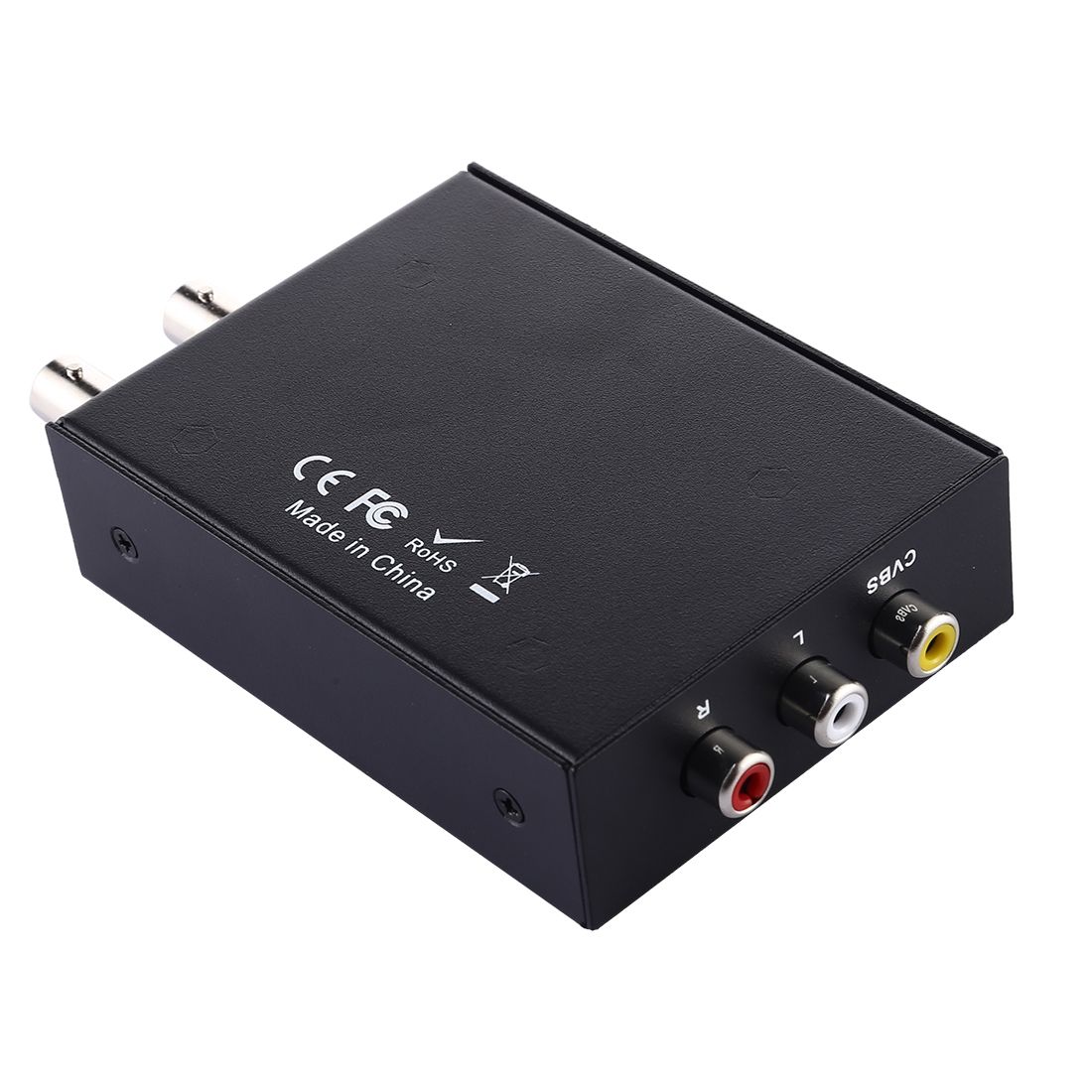

6. Output port: 1 x BNC (SD / HD / 3G-SDI), 3 x (CVBS, L / R)
7. Power supply: DC 5V
8. ESD protection human body model: +/- 8kV (air gap discharge), +/- 4kV (contact discharge)
9. Dimensions: 92mm x 67mm x 25 mm
10. Weight: 180g
11. Working temperature: 0 ~ 40 degrees Celsius
12. Storage temperature: -20 ~ 60 degrees Celsius
13. Power consumption: up to 5W

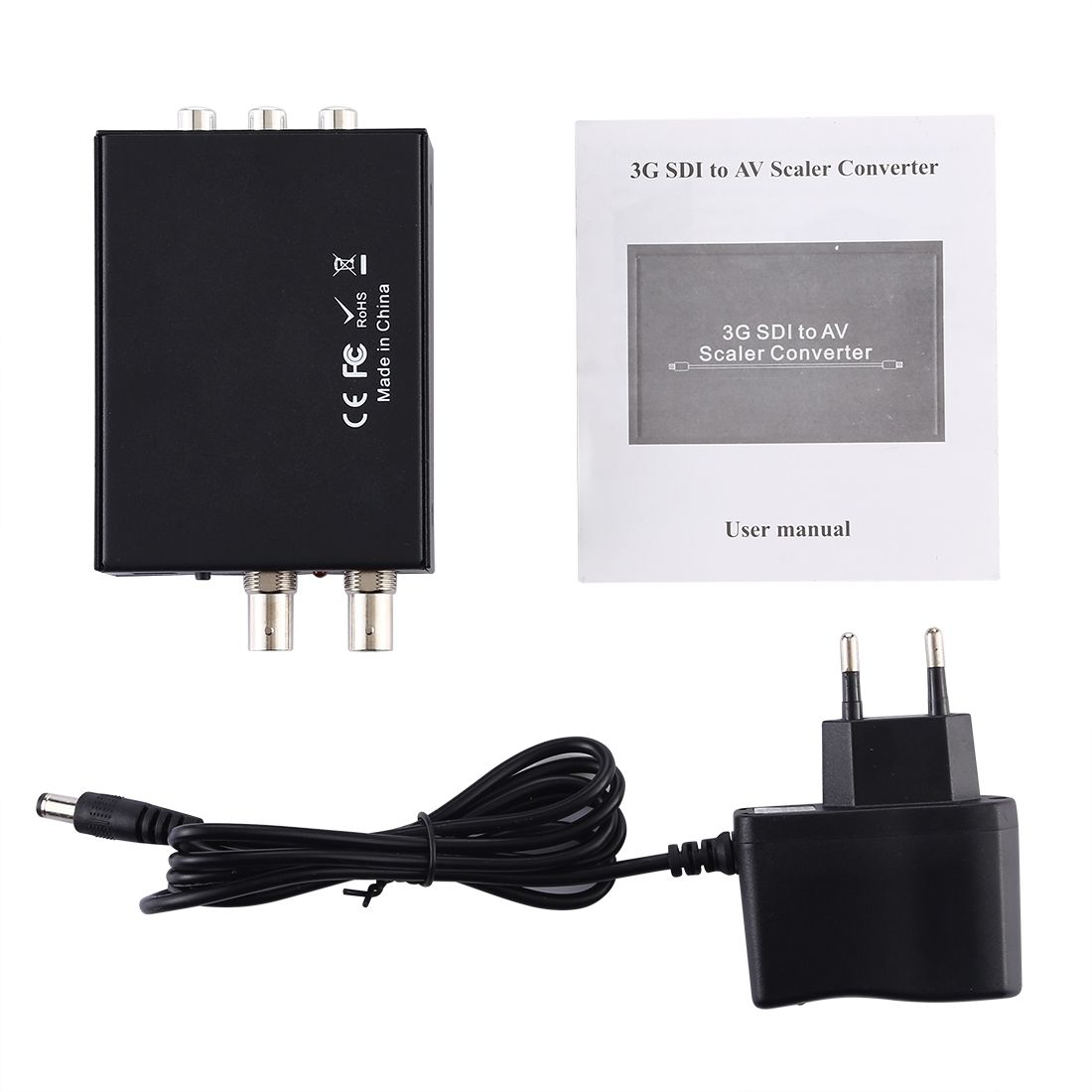

Packing list:
3G SDI to AV SCDMA converter x 1
5V DC power adapter x 1
Operation Manual x 1

Key Features

NF-F001 3G SDI to AV + SDI Scaler Converter
NF-F001 3G SDI to AV + SDI Scaler Converter
NF-F001 3G SDI to AV + SDI Scaler Converter
NF-F001 3G SDI to AV + SDI Scaler Converter
NF-F001 3G SDI to AV + SDI Scaler Converter

What's In the Box

1 x package
