Product Description
HD 4K 120M KVM HDMI-compatible Extender TX RX 4K 1080P 120M By Ethernet RJ45 CAT5e/6 Cable Local Loop-out With IR Remote
Features
* Support HDMI 1.4/HDCP1.4;
* Support local loop-out ;
* Support 120m long distance transmission.
* Low power consumption, low temperature and high safety;
* Both the TX and RX support 3.5MM left and right audio output;
* Support IR control;
* Support USB mouse and keyboard extension;
Specifications:
Length of CAT5e/CAT6 cable between Rx and TX ......................................... 120 meters
HDMI Input .......................................................... 4k/1080p/720p/576p/576i/480p/480i
HDMI Output .......................................................... 4k/1080p/720p/576p/576i/480p/480i
Input video signal .......................................................................... 0.5~1.5Volts p-p
Output DDC signal .......................................................................... 5Volts p-p (TTL)
Input HDMI cable distance ..................................... ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable
TX Max working current ............................................................................. 350mA
RX Max working current ............................................................................. 200mA
Power adapter format .................. Input:AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1A The Package includes:

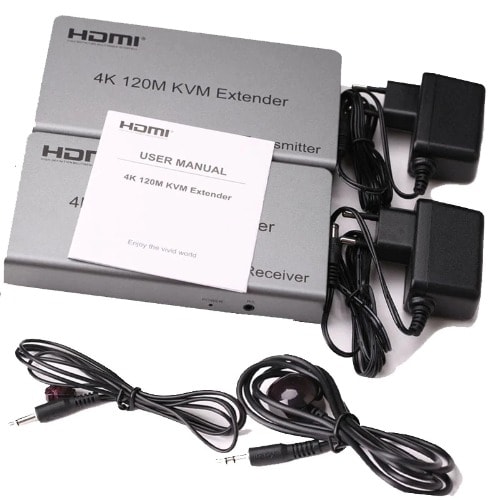

1. TX Extender 1pcs
2. RX Extender 1pcs
3. IR cable 1pair
4. 12V/2A DC Power adapter 2pcs
5. User Manual 1pcs
Length of CAT5e/CAT6 cable between Rx and TX ......................................... 120 meters
HDMI Input .......................................................... 4k/1080p/720p/576p/576i/480p/480i
HDMI Output .......................................................... 4k/1080p/720p/576p/576i/480p/480i
Input video signal .......................................................................... 0.5~1.5Volts p-p
Output DDC signal .......................................................................... 5Volts p-p (TTL)
Input HDMI cable distance ..................................... ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable
TX Max working current ............................................................................. 350mA
RX Max working current ............................................................................. 200mA
Power adapter format .................. Input:AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1A The Package includes:
1. TX Extender 1pcs
2. RX Extender 1pcs
3. IR cable 1pair
4. 12V/2A DC Power adapter 2pcs
5. User Manual 1pcs
