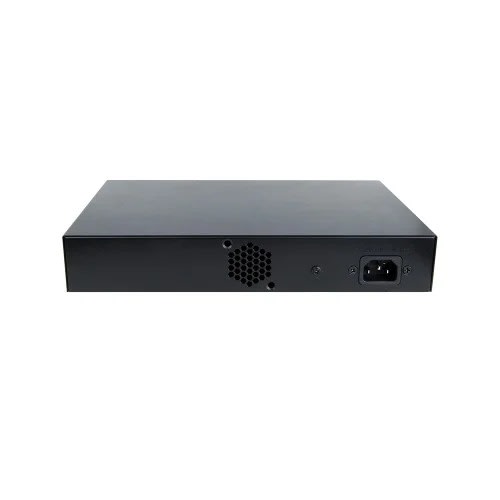

Full Gigabit - 10/100/1000mbps 16-Port Poe Switch - Onv-h3016pf

Colour Black
ch POE Port Output 30W Max Power Network POE Switch 16 Port

18-Port 10/100/100M PoE switch. 16*10/100/1000M PoE ports SFP ports.IEEE802.3af/at. Max PoE power output for each port is 30W. Total power is 200W. Built-in power supply.

Unmanaged model, plug and play, no configuration, easy to use.

Technical Specification:

Product Name

18-port 10/100mbs Managed PoE Switch

Product Model

ONV-POE

Connector

16*10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX) +2*Gigabit SFP ports

Transfer Mode

Store-And-Forward

Network Medium

10BASE-T: Cat3,4,5 UTP(≤100 meters);

100BASE-TX: Cat5 or later UTP(≤100 meters);

1000BASE-TX: Cat5 or later UTP(≤100 meters);

Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)

Performance Specifications

Switching Capacity: 48Gbps (non-blocking)
Network Latency (100 to 100M bps): maximum delay less than 20 microseconds
Packet Buffer Memory: 4M
Address Database Size: 8K
MTBF: 100,000 hours

Network Protocols and Standards

IEEE 802.3i 10BASET;
IEEE 802.3u 100BASETX;
IEEE 802.3x Flow Control

IEEE802.3af/at

LEDs Status

System: power supply;
Every Port: connecting, Ethernet working status

Power Consumption

200W

Dimension / Weight

270.5*181*44.5mm / 1.8kg

Working Environment

Operating Temperature: -20 ° ~ 55 ° C;
Storage Temperature: -20 ° ~ 75 ° C;
Humidity: 10% ~ 90%, non-condensing;
Storage Humidity: 10% ~ 95%, non-condensing;
Working Altitude: 3000 m (10,000 ft);

Storage Altitude: 3,000 m (10,000 ft)

Radiation

CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B

Safety

CE Mark ,commercial
CE/LVD EN60950

As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
