Audio Amplifier Board Module 600W High Power 2.0 Channel

features an integrated feedback design and high-speed gated driver error correction, allowing the device to maintain ultra-low distortion at audio bands while delivering high-quality sound.​

Features:​

Class D power amplifier chip with high operating efficiency, and this circuit can deliver truly high-end sound quality.

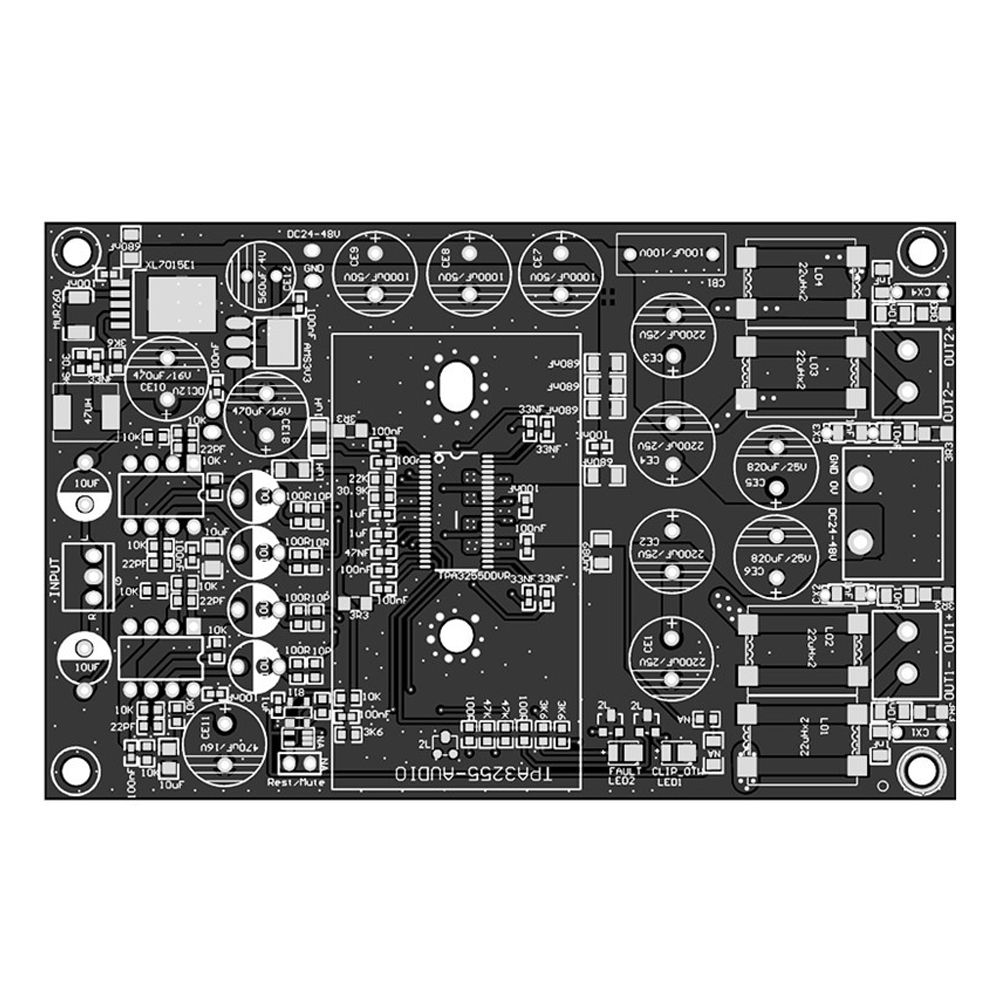

Fine circuit layout, with ТРА3255 high-performance chip, black crystal balanced audio inductors, professional op-amp capacitors, high-capacity audio professional filter capacitor, freely replaceable op-amps.

​The device features an integrated feedback design and high-speed gated driver error correction, allowing the device to maintain ultra-low distortion at audio bands while delivering high-quality sound.​

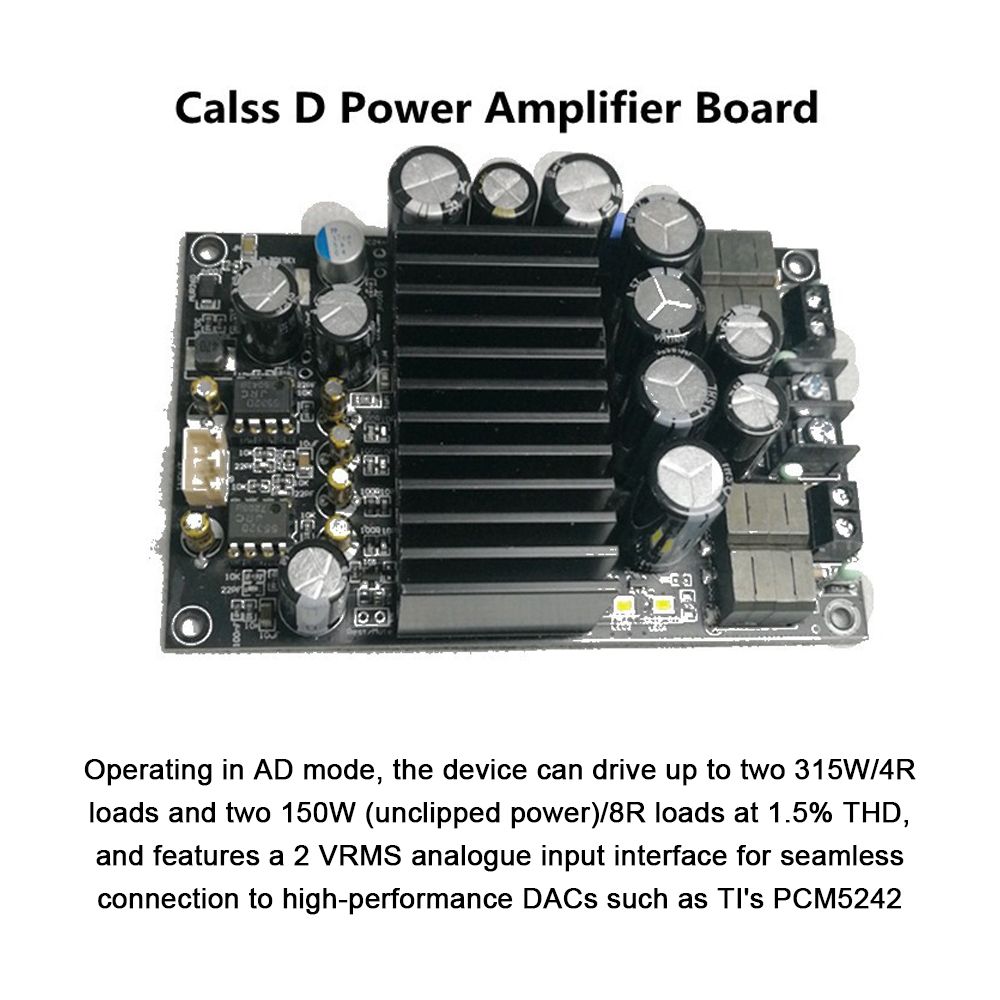

Operating in AD mode, the device can drive up to two 315W/4R loads and two 150W (unclipped power)/8R loads at 1.5% THD, and features a 2 VRMS analogue input interface for seamless connection to high-performance DACs such as TI\'s PCM5242.

In addition to high audio performance, the TPA3255 also combines high power efficiency and ultra-low power-level idle losses (less than 2.5W).

This is achieved with 85mR MOSFETs and an optimized gate driver scheme, which significantly reduces the idling loss.

High-density pure aluminum heat sinks, which dissipate heat faster for the same volumes.

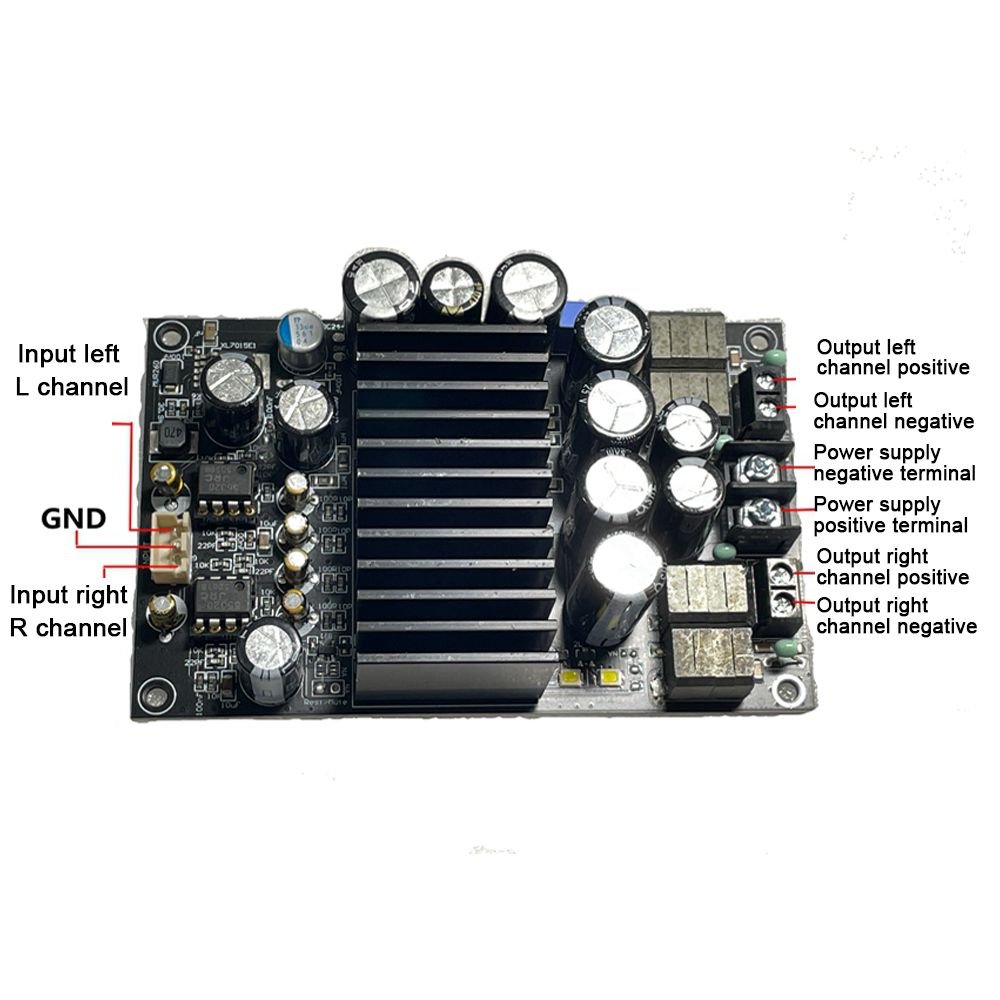

With 3.5MM stereo wired socket connector (3P)

Specifications:

Name: Audio Amplifier Board

Material: printed circuit board

Integrated circuits: TPA3255 chip

Input interface: 3.5mm

Working frequency: ＞90%

Output power:

315W/4 Omega;, 1.5% distortion

185W/8 Omega;, 1.5% distortion

260W/4 Omega;, 1% distortion

150W/8 Omega;, 1% distortion

Frequency response: 20Hz to 20KHz

Dynamic ranges: ＞100dB

Signal noise ratio: ＞111dB

Power supplys: 19-48VDC, current is recommended to be above 5A

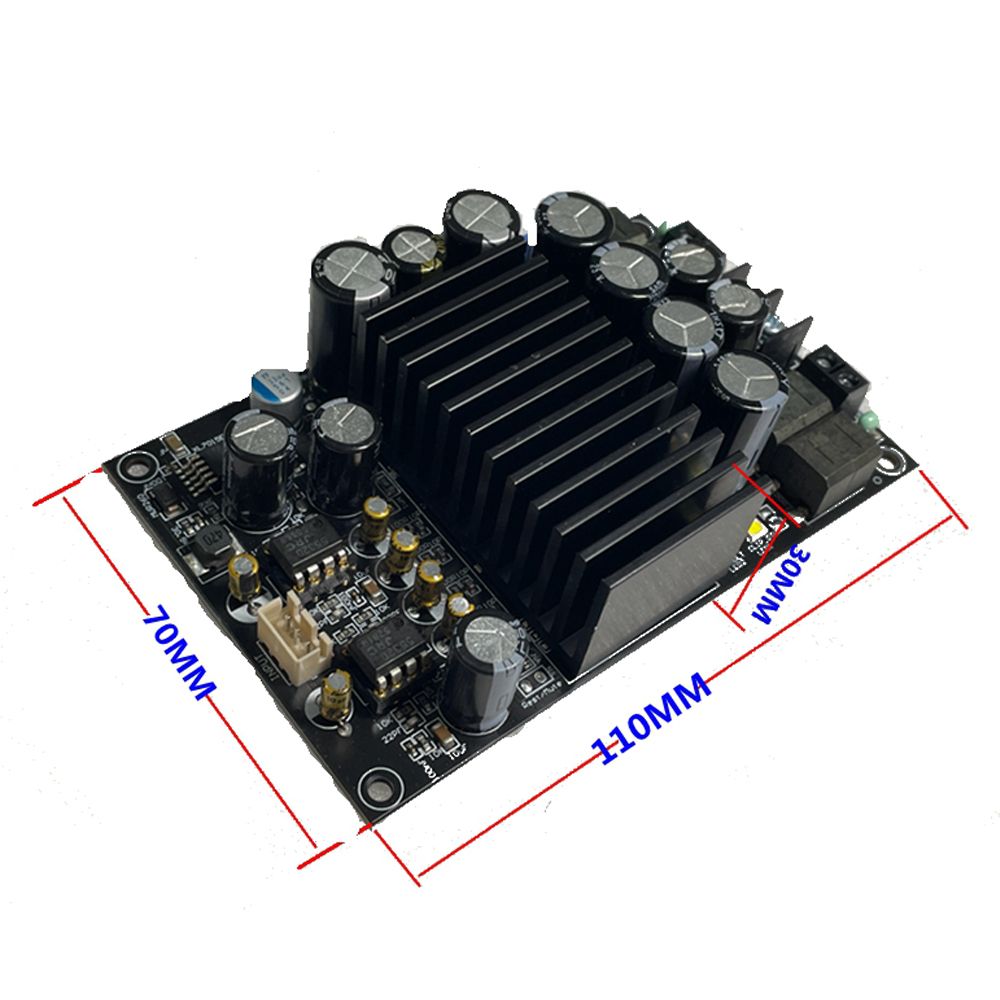

size: 110 * 70 * 30mm / 4.33 * 2.76 * 1.18in

weight: 168g / 5.93ounce

Package size: 120 * 70 * 40mm / 4.72 * 2.76 * 1.57in

Package weight: 175g / 6.17ounce
