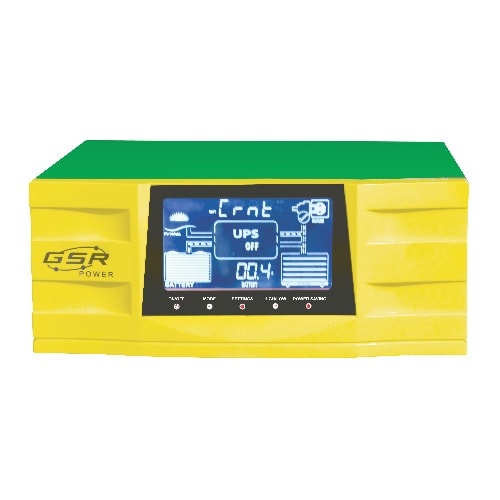

900va Pure Sine Solar Inverter

Name/Title: 900VA Solar Inverter -GSR Pure Sine Wave – Solar Hybrid Inverter – Home UPS – Power conversion Unit

Model: GSR Smart 900VA

Brand: GSR

Clean, Noiseless, Regulated and Stable Power everywhere you go!

HIGHLIGHTS

• Portable, efficient, durable and reliable with Real time Clock, date and time
• Two-Source Battery Charging via NEPA Grid/Generator and Solar (SUN)
• Digital Signal Processing based Pure Sine Wave Inverter fully computerized
• Built-in Pulse Width Modulation, PWM, 50A Solar Charge Controller
• Three-Stage Intelligent and Smart battery charging
• Interactive Multicolor Large 5” LCD Graphical Display for monitoring Inverter Status
• Built -in Over-voltage, Short circuit, Reverse polarity, Overload, High Temperature Protection

Description

THIS IS A PURE SINE WAVE SOLAR HYBRID TRANSFORMER BASED INVERTER THAT GIVES THE SAME QUALITY OF ELECTRICITY LIKE NEPA @220-240VAC/50Hz

Welcome to Binardo Solar. We take the trouble of your shoulder by providing you with quality, reliable, durable and industry tested best-in-class inverters, battery, solar panels and associated alternative energy products in order to give you uninterruptible electric power supply so you can do your work, live your best life and achieve your goals, dreams and aspirations and stay connected to the world.

The inverter/power conversion unit is like the central processing unit of your alternative energy power station, so carefully choose the right size and quality of your inverter. We have made this choice for you to keep you going in the long run with clean uninterruptible power.

This inverter is meant for continuous use application at home, restaurant, office, etc it is designed for always on, 24/7/365 days application with built-in fan that automatically starts and stops to regulate the inverter temperature.

Who says: Power is not everything? So, get the power, get this inverter.

This inverter can support up to 3 X 200Ah lead acid battery like AGM, Flooded and Gel and Flat plate batteries

NOTE

This inverter is solar ready with a large and powerful 50A PWM solar charge controller integrated inside it. So, no need for external charge controller.

This inverter will serve you even if you want to implement an INVERTER and Battery only energy system and keeps you ready to add Solar panels anytime you are ready without the need to buy additional equipment and wiring complex circuitry. Just plug in your solar panel at the port provided at the back of the inverter. Simple and short.

This inverter can power

1. 32inch LED TV
2. 56inch Ceiling/Standing Fan/wall Fans
3. Lights
4. Blender
5. Decoders
6. Table-top fridge

Provided the total applied load does not exceed rated power. Please keep an eye on the load percentage indicator that your applied load stays under 85% for continuous operation.

GET ONE and GIFT ONE TO A FRIEND OR FAMILYand keep the lights on.

Please note that Color of images might be slightly different from actual delivered product due to viewing device and photography limitations.

Together we can light up the world.

Features

1. NEPA Charging/Generator – YES
2. Solar Charging – YES
3. Automatic changeover On NEPA Failure/Generator – Yes
4. Built-in Voltage Stabilizer/regulator– Yes
5. Overload protection – Yes
6. PV reverse voltage protection – Yes
7. Supported batteries – Lead Acid Sealed maintenance-free, AGM, flooded and Gel and Flat Batteries
8. Low battery Disconnect -YES
9. Over-charge and Over discharge protection – YES
10. High Capacity/Quick charging – YES
11. Built-in Transformer – yes
12. Interactive Multicolor large 5” LCD Display
13. Displays the Solar Kilo-watt-hour (KWH) used on digital display
14. Advanced Pure Sine Wave Boost Technology
15. Smart Solar Selection Logic based on Real Time clock
16. Provision to maintain battery electrolyte gravity for better battery performance.
17. 50A large PWM integrated Solar Charge Controller
18. Maximum grid current saving by charging through Solar power only when there is sufficient Solar power
19. Up to 30% extra power in case of emergency through emergency current boost
20. Provision for manual configuration/setting of critical parameters of Solar and battery charging profiles
21. Maximum utilization of solar current through monitoring of abrupt weather conditions

SPECIFICATIONS

1. AC input cable length - 1300mm
2. Battery cable Length- 600mm
3. AC Output Socket - 13A Multi standard
4. Solar Panel Connector - 10mm
5. Dimensions of main unit:Length - 280mm, Width - 270mm, Height - 110mm
6. AC Input Voltage Range - 90-290V Nominal
7. DC Battery Voltage - 12V Nominal
8. Gross Weight - 8.0Kg
9. Net Weight Main Unit - 10.5Kg
10. Dimensions of package: Length - 330mm, Width - 330mm, Height - 180mm
11. Solar Panel Voltage - 18V Nominal
12. Build Material - Coated steel Case
13. Built-in Cooling Fan - Yes
14. LCD Screen - 5” Graphical Multi Status Color
15. AC Built-in Charger- 17A
16. Solar Charge controller - 50A PWM
17. High charge Current - Yes
18. Output Frequency - 50Hz nominal
19. Output Voltage – 220-240V

Package Content

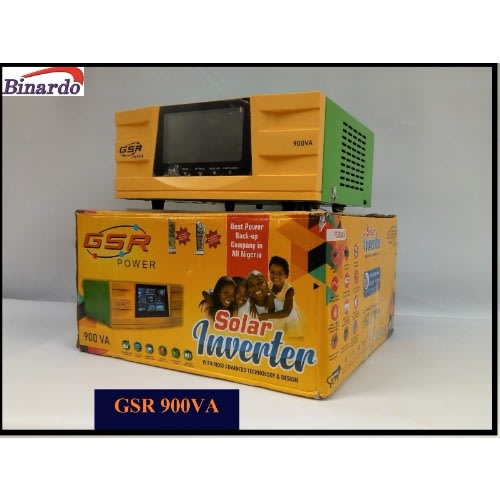

GSR 900VA Inverter 1

User Manual 1

Spare Fuse A 2

Spare Fuse B 1

WARRANTEE: 1year

Service center: 3 Fatai Atere Road, Oshodi, Lagos, Nigeria
