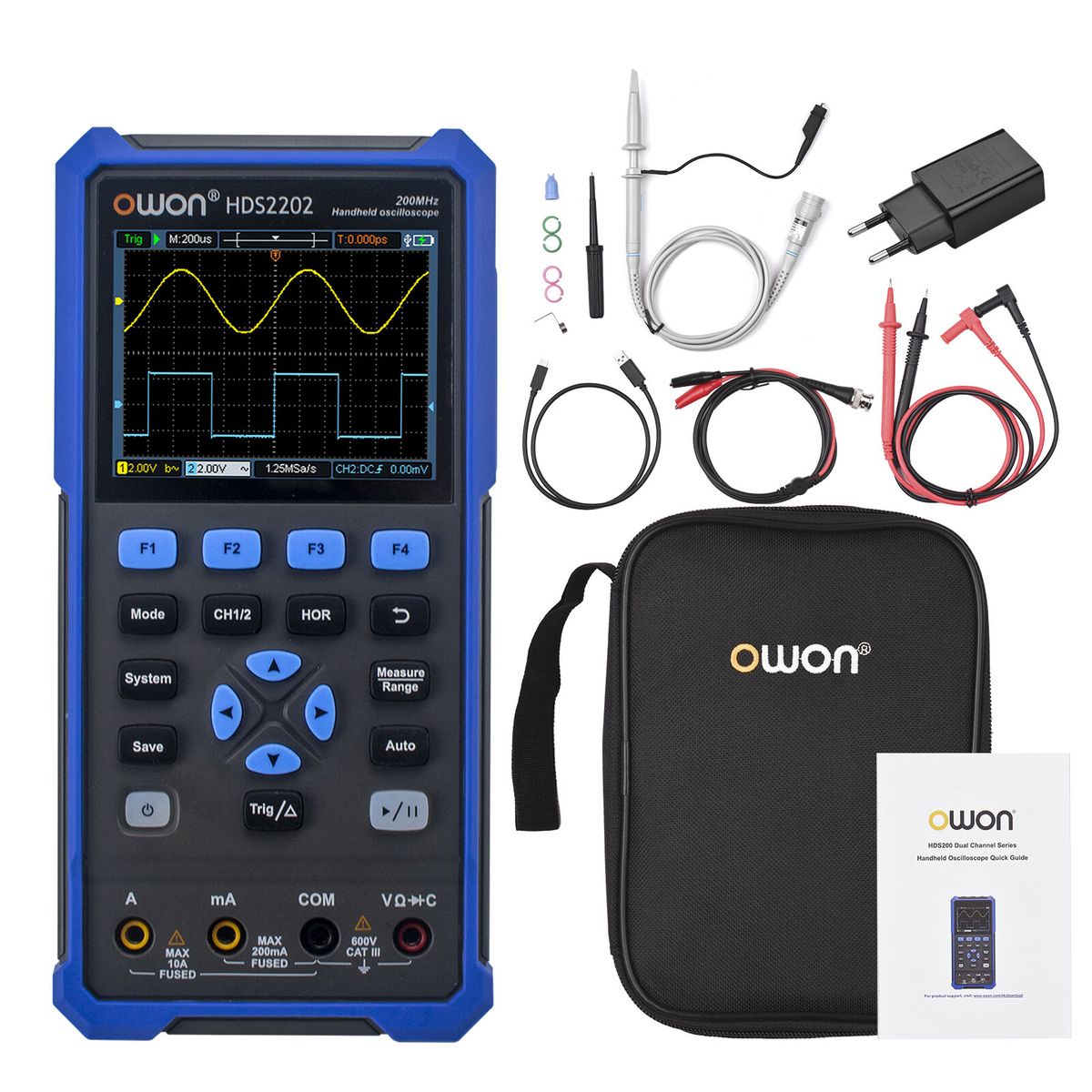

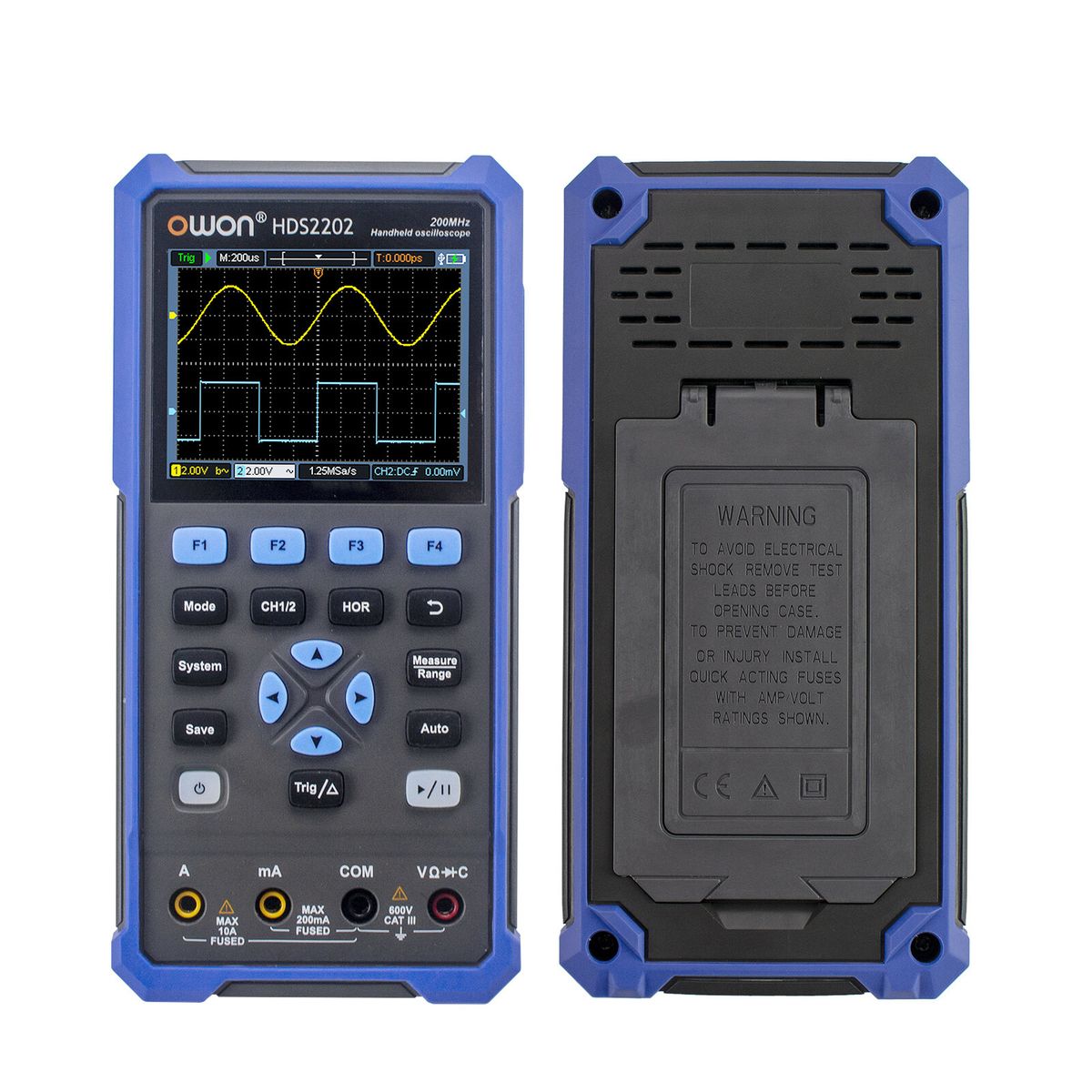

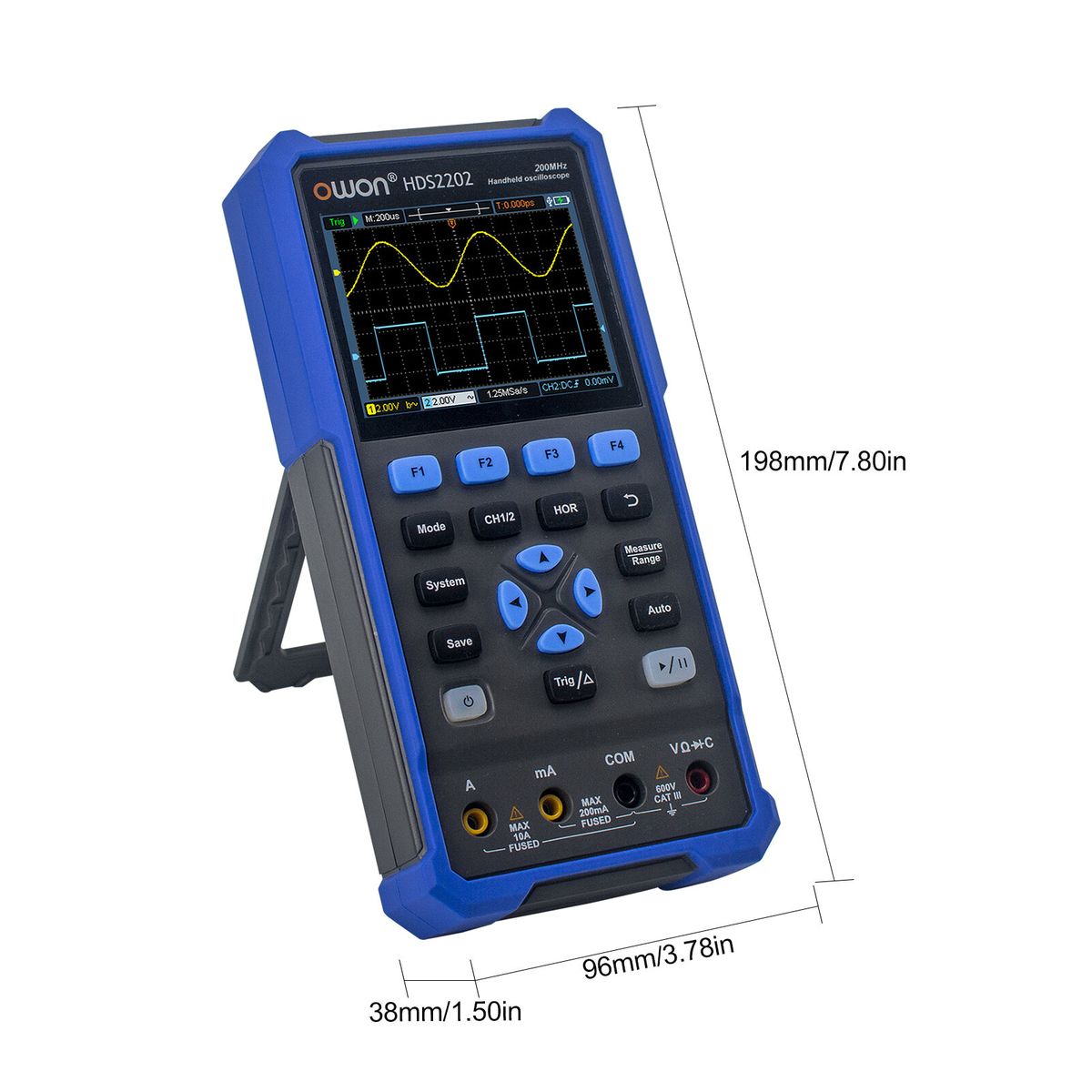

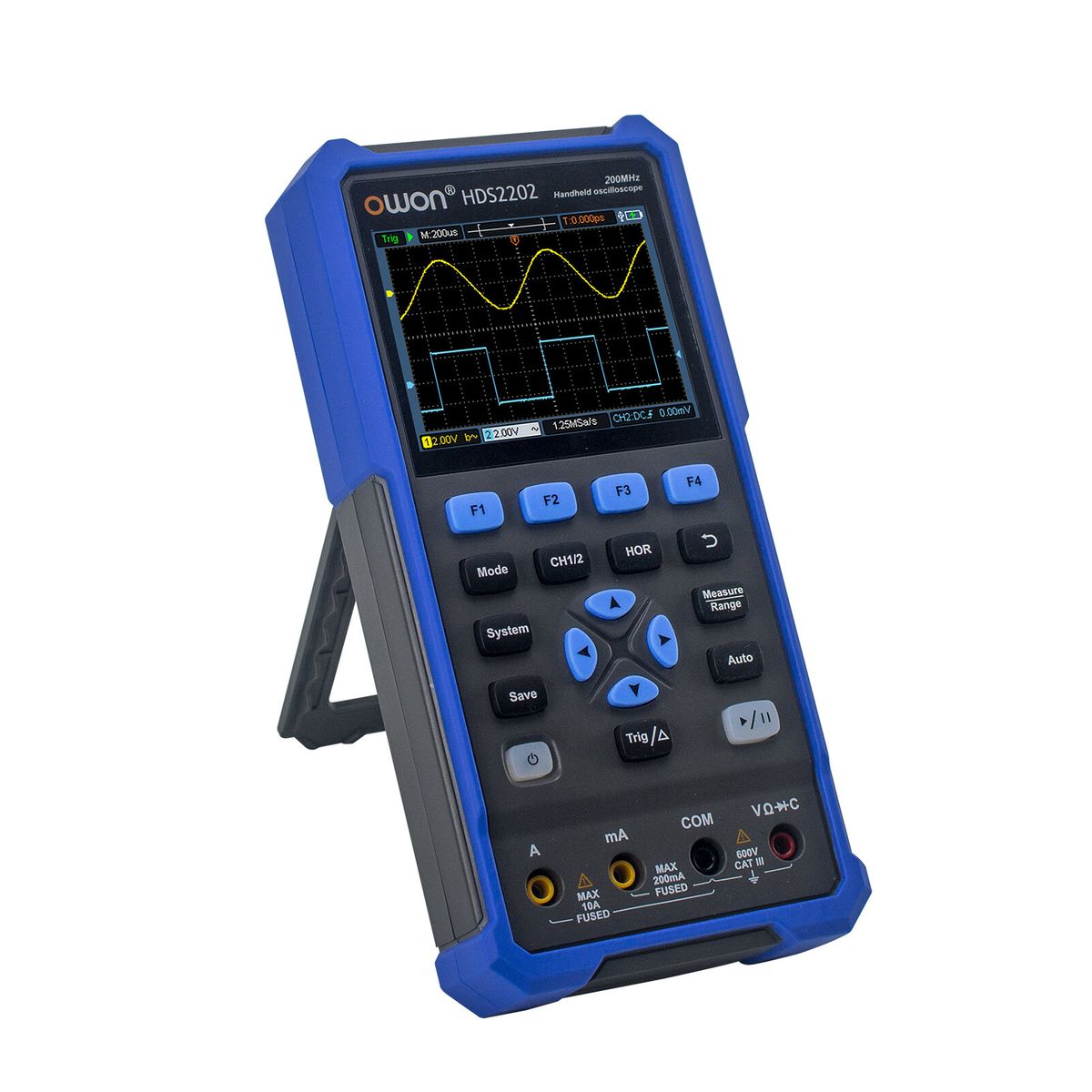

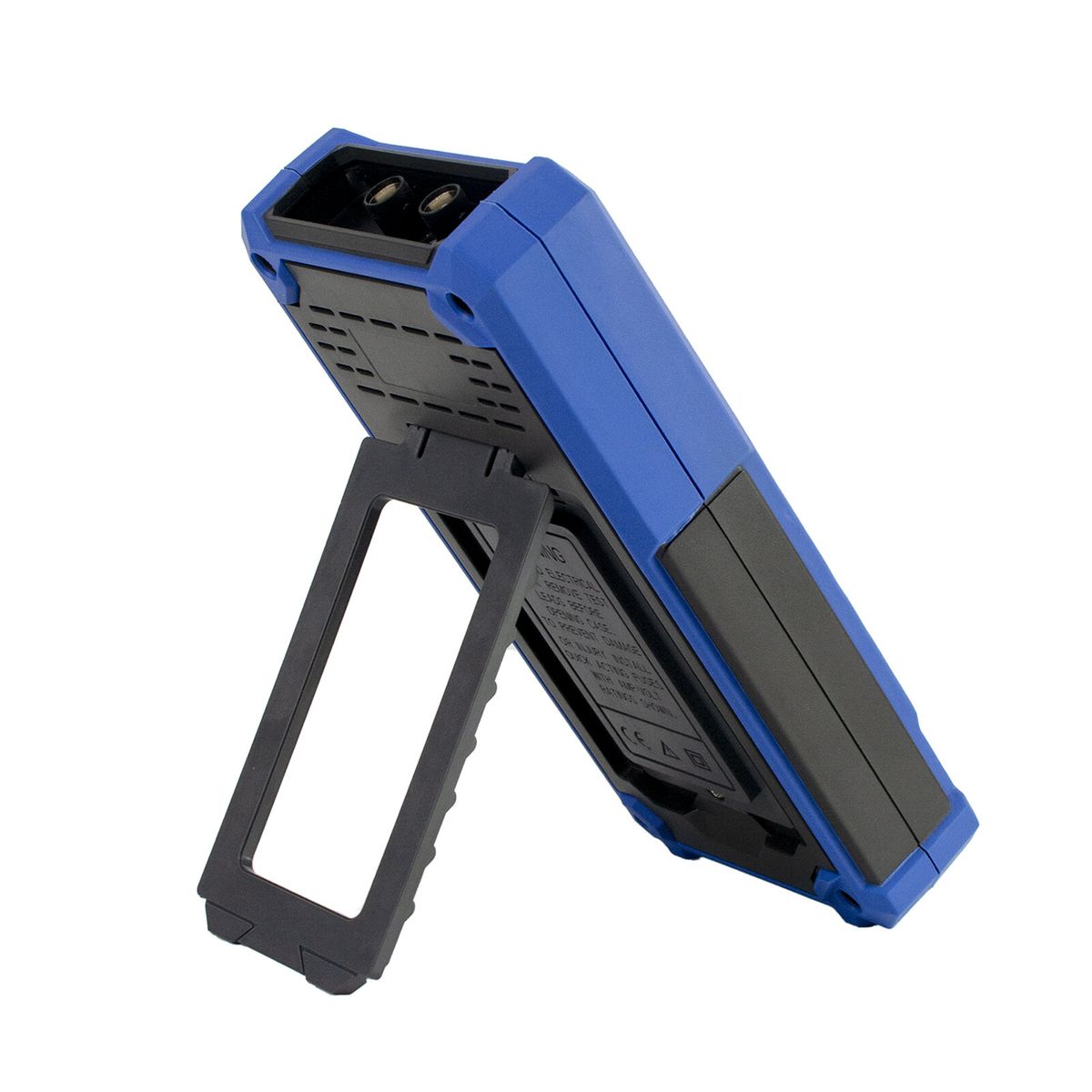

OWON 2CH Handheld Oscilloscope 200MHz Bandwidth 20000 Counts

gt; gt;Please click here to download the English manual and software lt; lt;

Specifications:

「Oscilloscope」

Model

HDS2202

HDS2202S

Bandwidth

200MHz

200MHz

Channels

2- CH Oscilloscope

2-CH Oscilloscope

+1-CH Generator

Sample Rate

1GSa/s

Acquisition Model

Normal, Peak detect

Record Length

8K

Display

3.5 -inch LCD

Waveform Refresh Rate

10,000 wfrms/s

Input Coupling

DC, AC, and Ground

Input Impedance

1 M Omega;+2%, in parallel with 1 6pF+10pF

Probe Attenuation Factors

1X,10X,100X,1000X,10000X

Max. input Voltage

400V (DC+AC, PK PK, 1M Omega; input impedance)

(10:1 probe attenuation)

Bandwidth Limit (typical)

20MHz / Full bandwidth

Horizontal Scale

2ns/div - 1000s/div, step by 1-2- 5

Vertical Sensitivity

10mV/div - 10V/div

Vertical Resolution

8 bits
