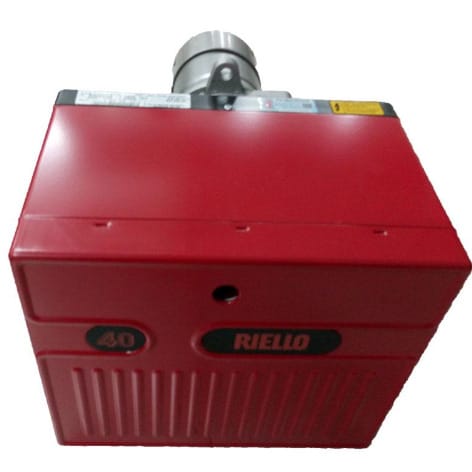

Riello - 40g10lc Light Oil Burner
Riello - 40g10lc Light Oil Burner
The Riello R 40 G series is a one stage light oil burner and consist of a complete range of Riello products developed to respond to any aspect of home heating. The Riello R 40 G series is available in 11 different models, with an output ranging from 12kw to 240kw, divided in four structures.
All the models use the same components designed by Riello for the Riello R 40 G series. The high quality level guarantees safe working.
Riello diesel burner natural gas burner for spray booth heating
model g10 lc
thermal power output 54 120kw 4.5 10kgh
fuel light oil viscosity 4 6mm2s at 20
electric supply single phase 230v 50hz
motor run current 0.8a 2850rpm 298rads
capacitor 4uf
ignition transformer secondary 8kv 16ma
pump pressure 7 15 bar
Absorbed electrical power 0.170kw
