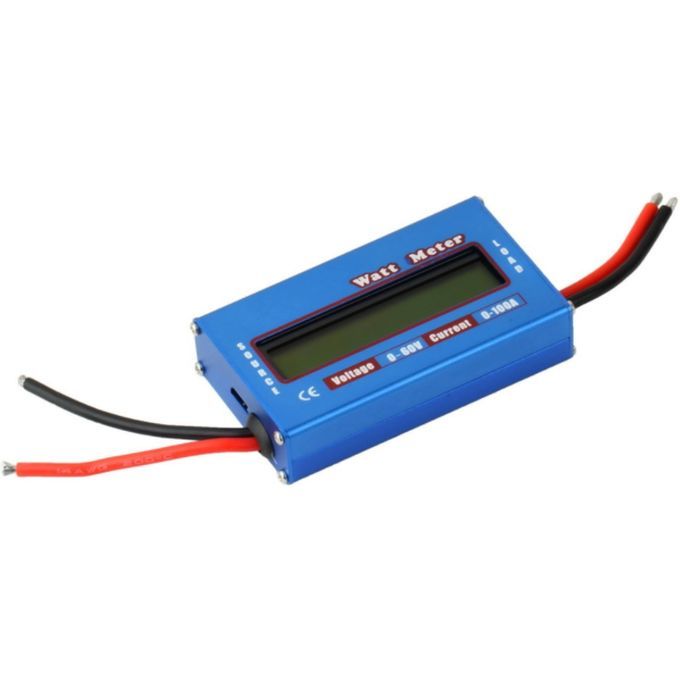

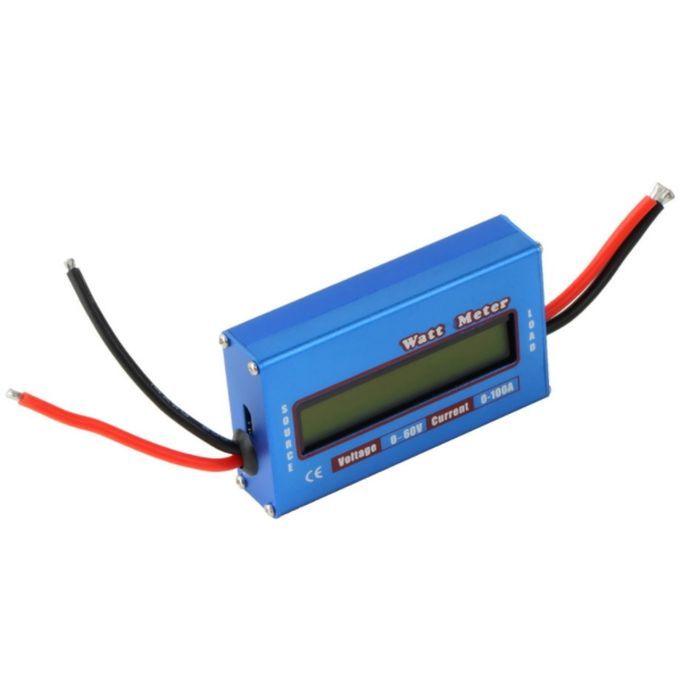

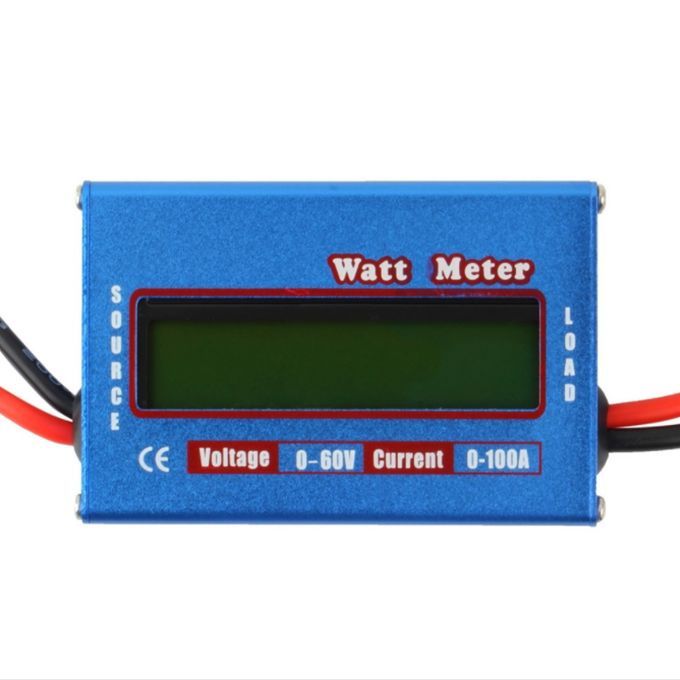

100A 60V DC RC Helicopter Airplane Battery Power Analyzer Watt Meter Balancer

Introduction:
Professional RC Watt Meter is an excellent addition to your RC hobby, DC circuits, Solar system, Boat/RV & Battery Backup systems!This isn' t just a watt meter-it' s the All-In-One Meter! A power meter, a volt meter, an amp-hour meter, ammeter and energy meter. Everything all in one unit! This is the perfect troubleshooting tool. This all-in-one watt meter is indispensable for analyzing, testing and troubleshooting any DIY DC power project.

Feature:
100% high quality.
Digital LCD screen gives clear crisp number readings.
Handles up to 100 amps intermittently and 50 amps continuous duty.
Connecting load end to the battery provides real-time battery charging reading.
Handles 0 to 60 volts. Works on 12, 24, 36, and 48 volt battery bank systems.
Extremely low power consumption of 7 mA. More efficient than any LED meter.
Measure energy(wh),charge(ah), power(w),current(A) and voltage(V).
Accurate & precise 0.01 A current and 0.01 V voltage resolutions.
Measures peak Amps, peak Watts(except for Doc Wattson) and Voltage minimum(sag).
Rugged- handles 50A continuous and 100 A peak at 60V.
Acts like a wire so doesn' t affect model' s performance. Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7 mA.
USes DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity.

Specifications:
Color:Blue
Voltage:(0)V-60V 0.01V (Resolution).
Current:0-100 A peak 0.01A (Resolution).
Power:0-6554 W 0.1W (Resolution).
Charge:0-65 Ah 0.001Ah (Resolution).
Energy:0-6554 wh 0.1 Wh (Resolution).
Measurement Update period:400mS.
Signal Sampling Rate:sample/s.
Data Queue Sequence time: 2 seconds.
In Circuit Resistance:0.001 Ohms.
Operation Current: 7 mA.
Auxiliary Power Voltage: 4.0V ~ 60V
Size:84*50*20
Display Screen: 1602 STN LCD

Package Contents:
1 x Watt Meter
1 x Manual

a a a a a

Key Features

Digital LCD screen gives clear crisp number readings.
Handles up to 100 amps intermittently and 50 amps continuous duty.
Connecting load end to the battery provides real-time battery charging reading.
Handles 0 to 60 volts. Works on 12, 24, 36, and 48 volt battery bank systems.
Extremely low power consumption of 7 mA. More efficient than any LED meter.
Measure energy(wh),charge(ah), power(w),current(A) and voltage(V).
Accurate & precise 0.01 A current and 0.01 V voltage resolutions.
Measures peak Amps, peak Watts(except for Doc Wattson) and Voltage minimum(sag).
Rugged- handles 50A continuous and 100 A peak at 60V.
Acts like a wire so doesn' t affect model' s performance.
Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7 mA.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

Package Contents:1 x Watt Meter1 x Manual
