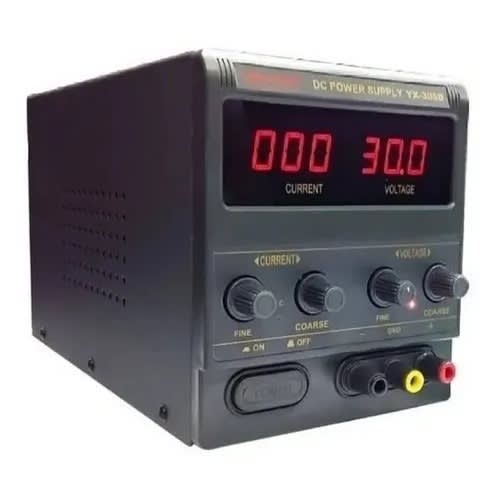

DC Power Supply For Lab - 30V 5A

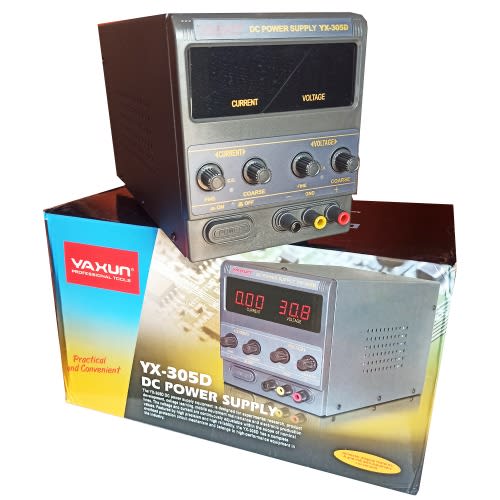

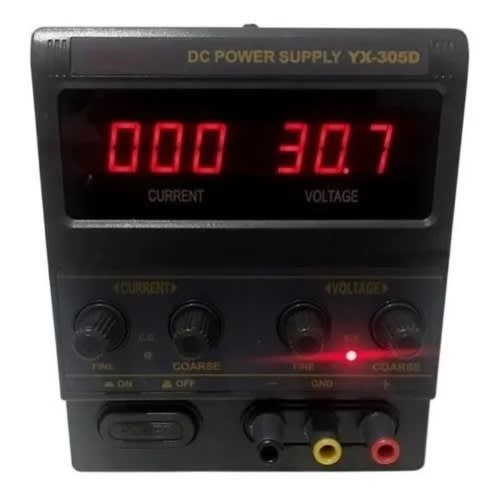

30V Series digital regulated DC power supply yaxun 305D

Ambient working condition and dimensions

• Power supply voltage: 110V/220V±10% 50/60Hz (switch transformation)
• Working condition: Temperature: 00C to 400C
• Relative humidity: <80%
• Storage condition: Temperature:-100C to 700C
• Relative humidity: <70%

Stabilized Voltage working position

• The output voltage is between 0 and nominal value continuously adjustable
• Power stability:<0.01%+3mV; Load stability :< 0.01%+3mV (Max. current<3A);
  Load stability :< 0.01%+5mV (Max. current>3A)
• Recovery time :< 100μS (load-variant50%, min. load current 0.5A)
• Ripple & noise :< 0.5mVrms (5Hz-1MHz) (Max. current <3A)<1.0mVrms (5Hz-1MHz) (Max. current >3A)
• Temperature coefficient < 300PPM/0C

Stabilized current working position

• The output current is between 0 and nominal value continuously adjustable
• Current stability
  Power stability<0.2%+3mA
  Load stability :< 0.2%+3mA
• Ripple & noise :< 3mArms
