Quartz Wall Clock DIY Replacements Mechanism Repair Parts Sets Hands

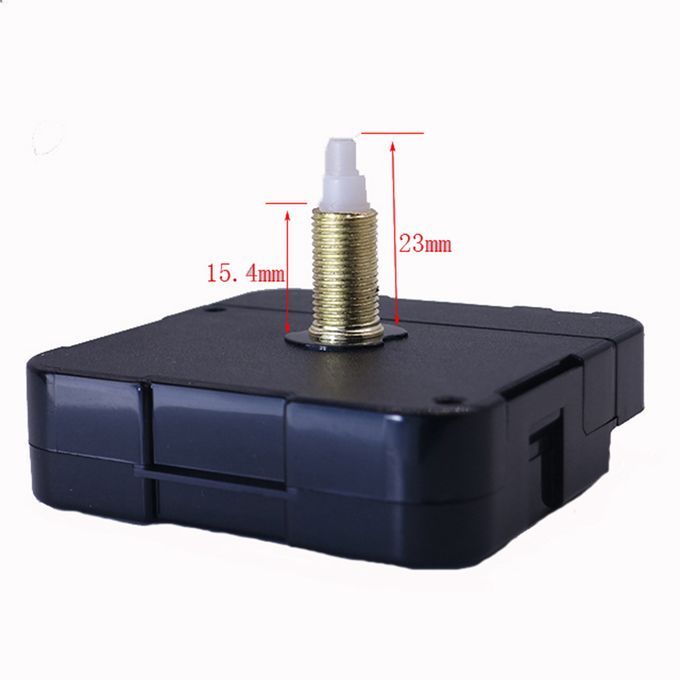

Welcome to my store, we have many kinds of price products, we launch new products every day, please follow my store and pay more attention, for more products, Please click on the seller information to enter our store to buy, we hope give you a pleasant shopping experience. Thank you and have a nice day!Description:Shaft length: 23mm, thread height 15.4 mm, suitable for panels of approximately 12mm thickness.

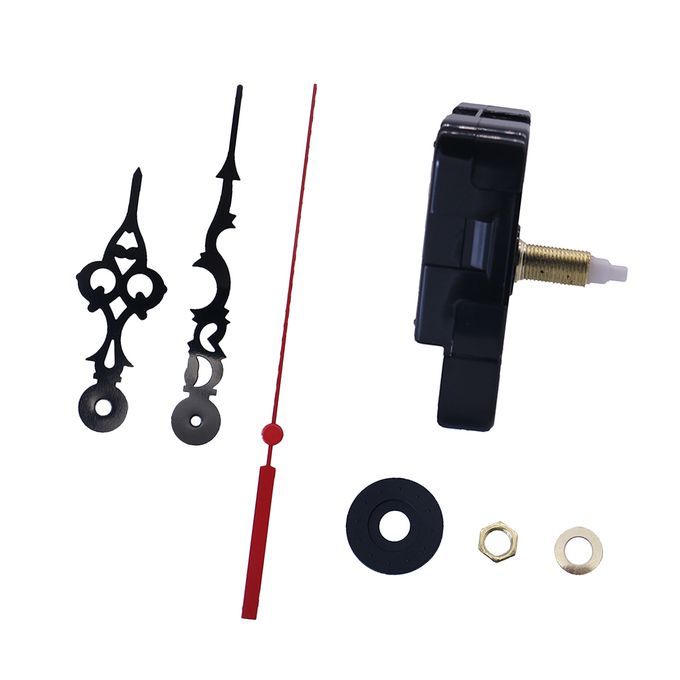

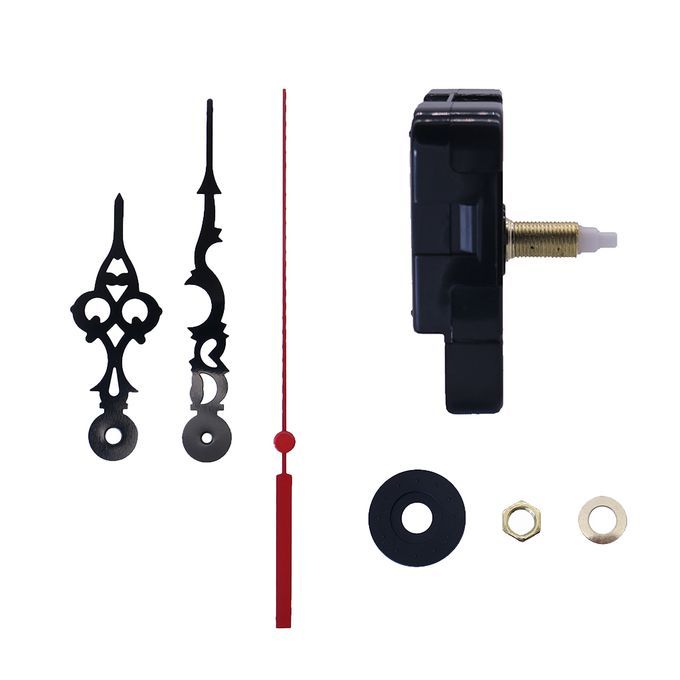

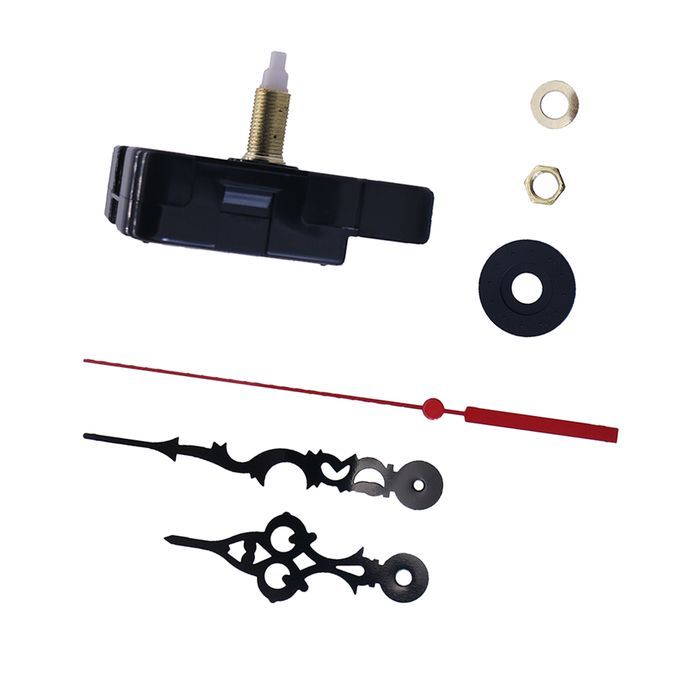

Equipped with gold hexagonal plane nut, gold garnish, black pad.

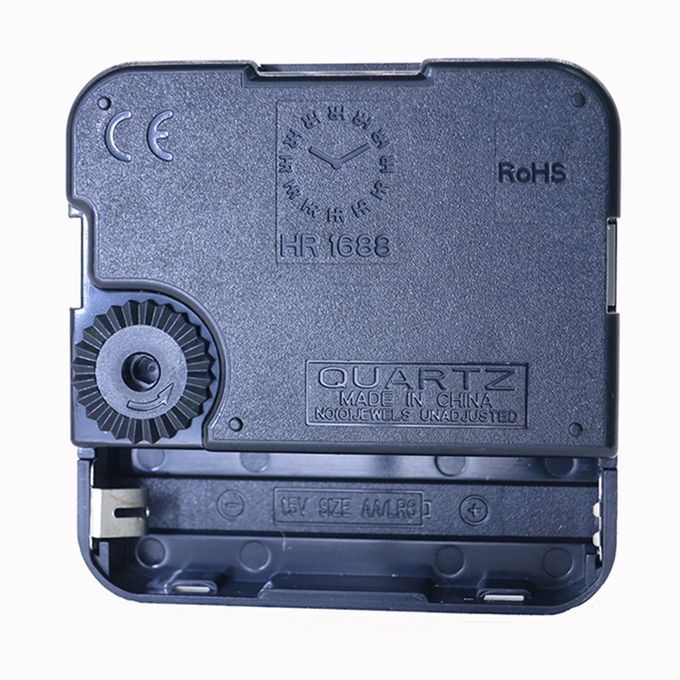

1688 jump second movement is a first-level movement, more than 2 years life, equipped with ROHS certification.

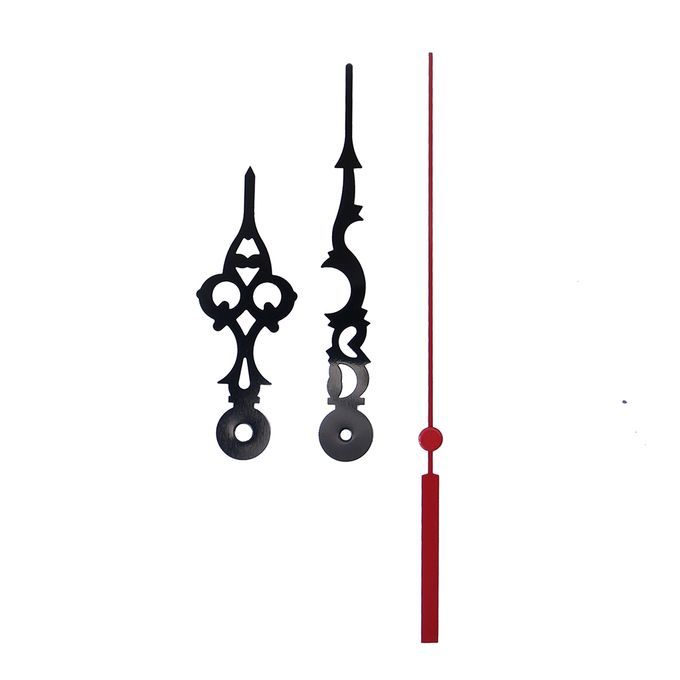

From the center hole of the pointer to the top, the hour hand is 77mm, the minute hand is 106mm, 110mm, and it is suitable for the panel diameter of about 240-300mm.
Material: hands aluminum, 0.4 mm thickness, hands head: copper, process: Color of silk printing.
Specification:Shape size: 56 * 56 * 16.3 mm
Crystal frequency: 32.768 KHz
Walking accuracy: 30 Sec / Month at 1.5 V DC. 25 C(unadjusted)
Consumption current: Lesthan 130 A at 1.5 V DC.
Operating voltage: 1.3 V to 1.7 V
Rated voltage: 1.5 V
Operating temperature: -10 C to 50 C
Battery life(specification): Approx. 12 Months(UM-3)
Weight: approximately 25 g/PCS
output torque: 0.6 gf-cm(1.5 V)
output torque: 30 gf-cm(1.5 V)
The pointer specification requires:
Length / Weight of : 130mm, 2G
Point Length / Weight: 200mm, 6G
Inequilibrium moment of the : 0.15 gf-cm
Inequilibrium moment: 6gf-cmPackage Includes:1 set of clock parts
Note:Since the size above is measured by hand, the size of the actual item you received could be slightly different from the size above.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.Quartz Wall Clock Movement;Clock Kit;Shaft Length Clock;DIY Clock Replacement;Clock Mechanism Replacement;Clock Hands and Motor Kit;DIY Repair Parts;Silent Movement

What's In the Box

1 set of clock parts
