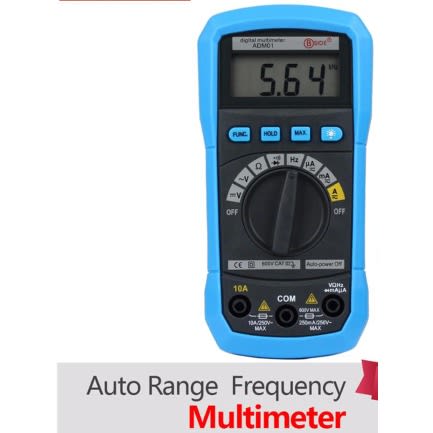

BSIDE ADM01 Auto-range Digital Multimeter

Overview:

This Meter is a handheld and battery operated Digital Multi Meter(DMM) with multi function. This Meter is designed to meet IEC61010-1 & CAT II 600V over voltage category and double insulation. The meter with holster that is giving the main body, though downsized, high resistance against the shock of a drop.

This operating instruction covers information on safety and caution. Please read relevant information carefully and observe all the warnings and note strictly.

The DMM as general measurement tool and widely used in the school, laboratory, factory and other social field.

Features:

2000 digits display

Auto range

Data hold

Backlight

Diode test

Continuity test

Maximum Value hold

case for protection

Frequency measurement:0-20kHz ±(1.0%+2)

Auto power off

Battery low indication

High quality test leads

Specifications:

DC Voltage 200mV/2V/20V/200V ±(0.5%+2) 600V±(0.8%+2)

AC Voltage 2V/20V/200V/600V ±(1.0%+3)

DC Current 200μA/2mA/20mA/200mA ±(1.0%+3) 10A±(3.0%+3)

AC Current 200μA/2mA/20mA/200mA ±(1.2%+3) 10A±(3.0%+5)

Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+2)20MΩ±(1.0%+2)

Temperature -20°C~1000°C/-4°F~1832°F ,±(3.0%+3)

Package Includes:

1 x Multimeter

1 x Test Leads

1 x User Manual

Note:

The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
