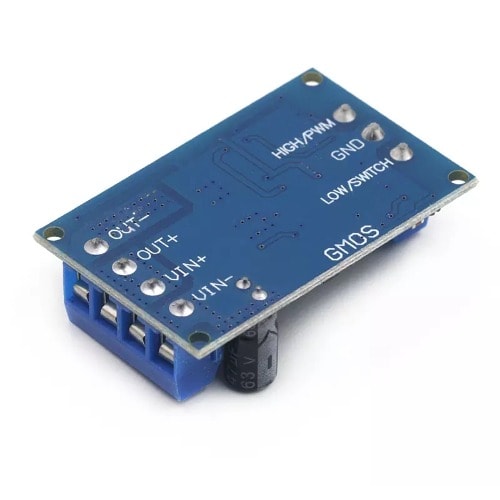

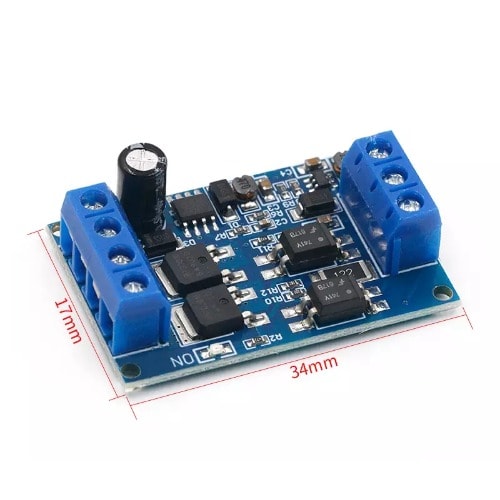

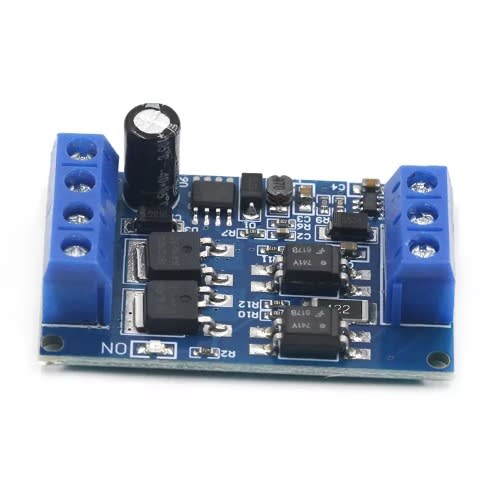

600W High Power MOS Trigger Switch Driver Module

The 600W High Power MOS Trigger Switch Driver Module supports high level trigger, low level trigger switch control, PWM control; dual MOS parallel active output, low internal resistance, strong current, strong power. The continuous current at room temperature is 10A, 600W, satisfying most Equipment;

• Working voltage input: DC 4V - 60V; Easy to control high power equipment.
• High-level trigger voltage range: DC 3.0V - 24V, trigger signal is 3.0V - 24V, MOS tube is on; less than 0.6V, ie 0V-0.6V, MOS tube is off. The signal voltage cannot be 0.6V-3.0V, because the MOS tube is not fully open, the high power output will damage the MOS;
• Low-level trigger voltage range: DC 0V-0.6V, trigger signal at 0V-0.6V, MOS transistor is on; above 3.0V, MOS transistor is off; signal voltage cannot be 0.6V-3.0V, because MOS tube is not complete Open circuit, high power output will damage MOS.
• Output Capacity: DC 4V - 60V, continuous current 10A, room temperature, power 600W! The current can reach 15A under auxiliary cooling conditions.
• NOTE:
  At the same time, there is only one signal to control the module, and two or more signals cannot be used to control the module;

  Product parameters:
  Working voltage: DC 4V - 60V;
  Working temperature: -40 - + 85 C
