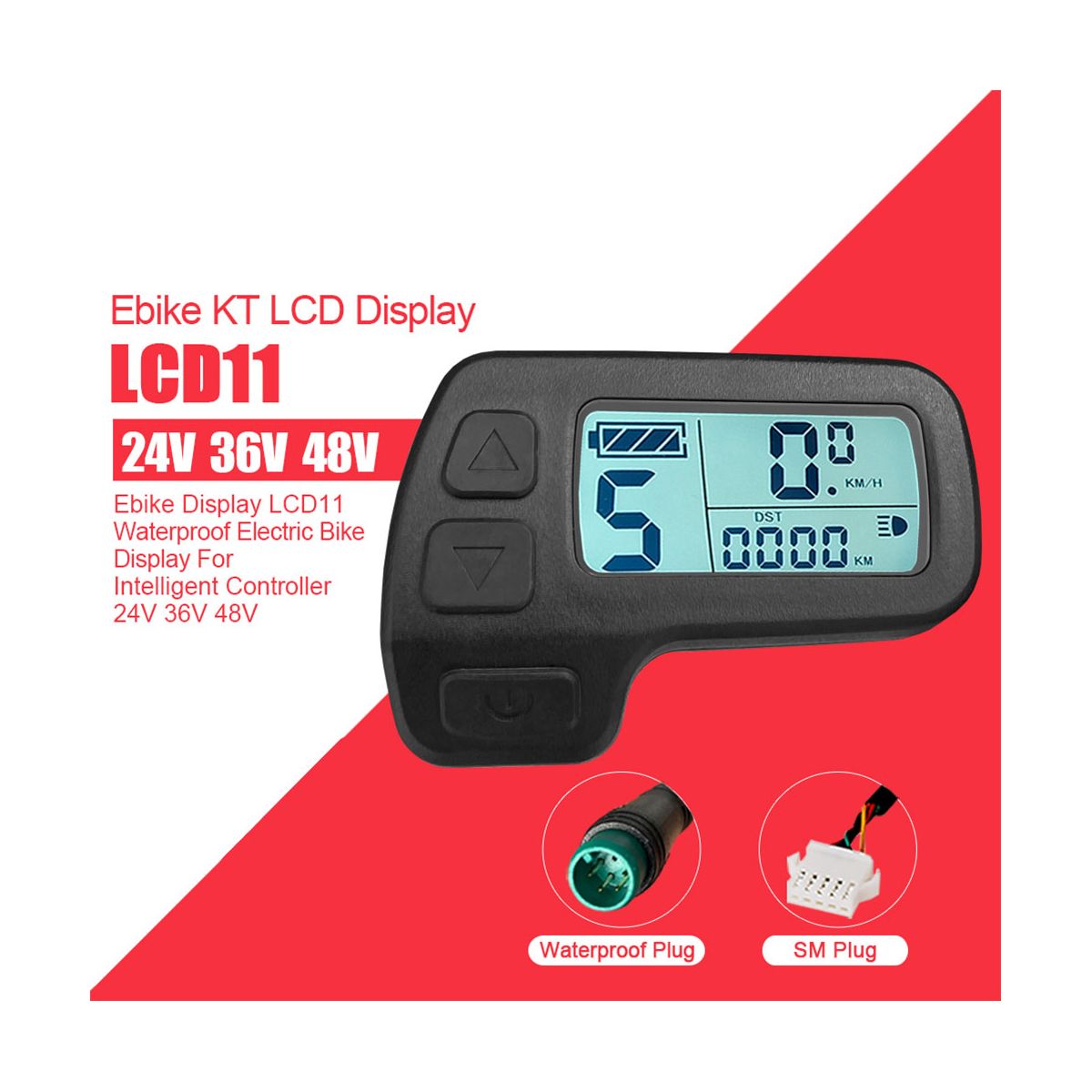

Ebike Display KT-LCD11 Mini Display 24V 36V 48V Waterproof Plug Electric Bike Display for Kunteng Controller Ebike Panel

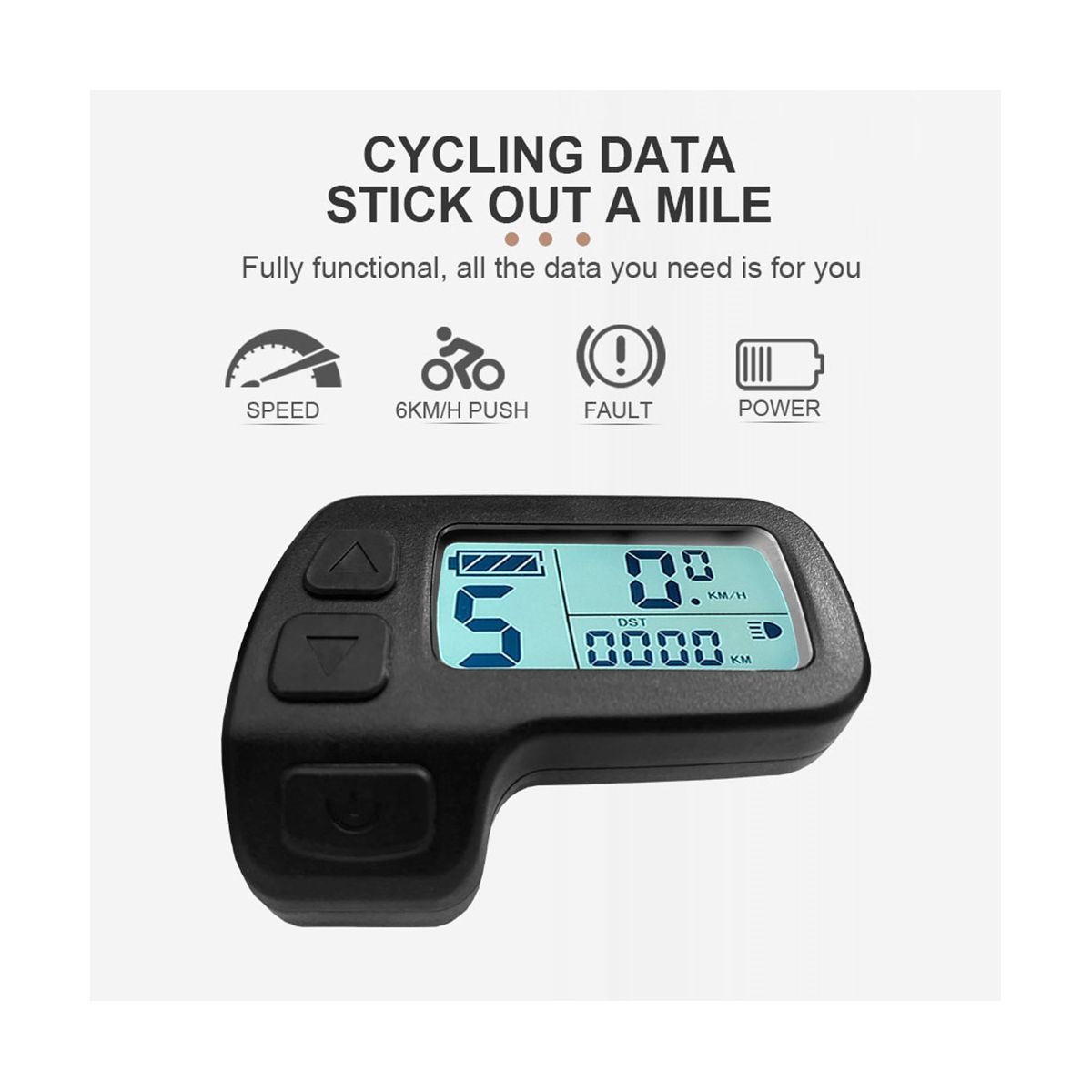

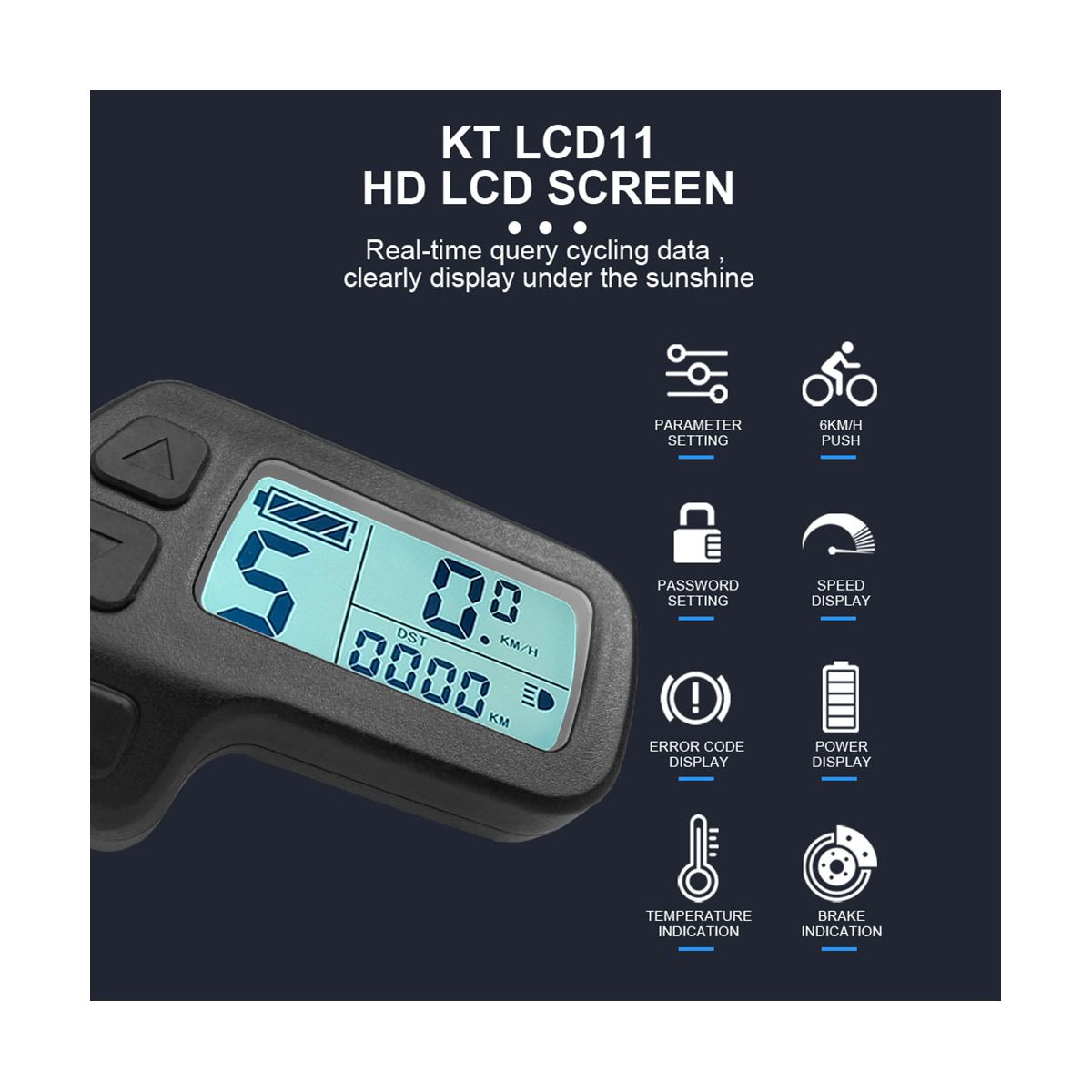

Feature: 1. Single travel time (TM) + total travel time (TTM) real-time km/h or MPH display
2. Single maximum speed (MXS) + single average speed (AVS)
3. One-way distance (DST) + total travel distance (ODO)
4. 6km/h push function, cruise function. Headlights, taillights, optional switches, brake status display
5. Torque sensor analog speed sensor 0-5 level + battery capacity display

A.5pin SM connector
B.5pin WP connector (1T4 waterproof cable required)
24V, 36V, 48V compatible.

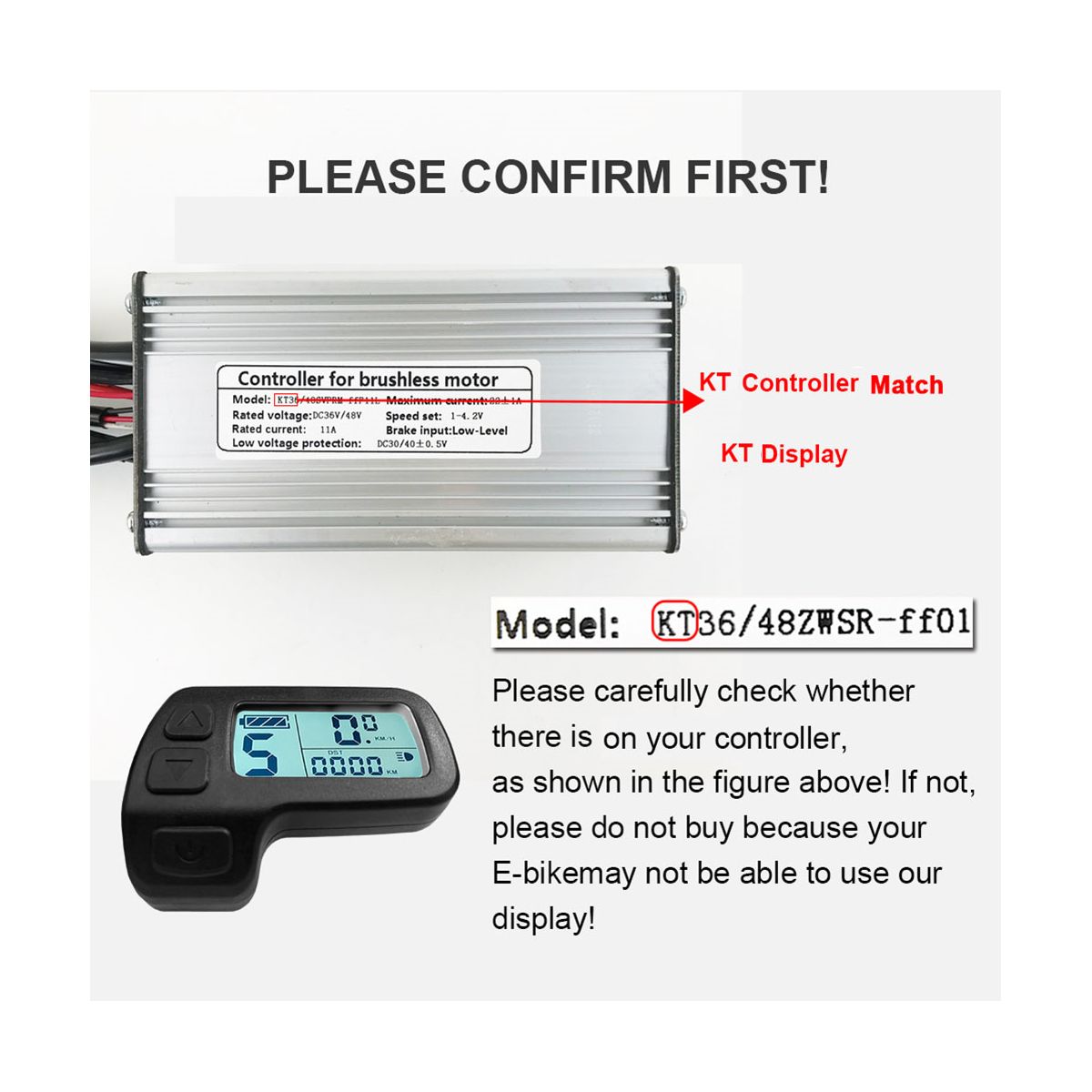

The controller can be reprogrammed through parameter setting.
Data reset + parameter copy + fault code display.
Display of motor working power (W). And motor working temperature display.
The LCD motor overheats alarm.

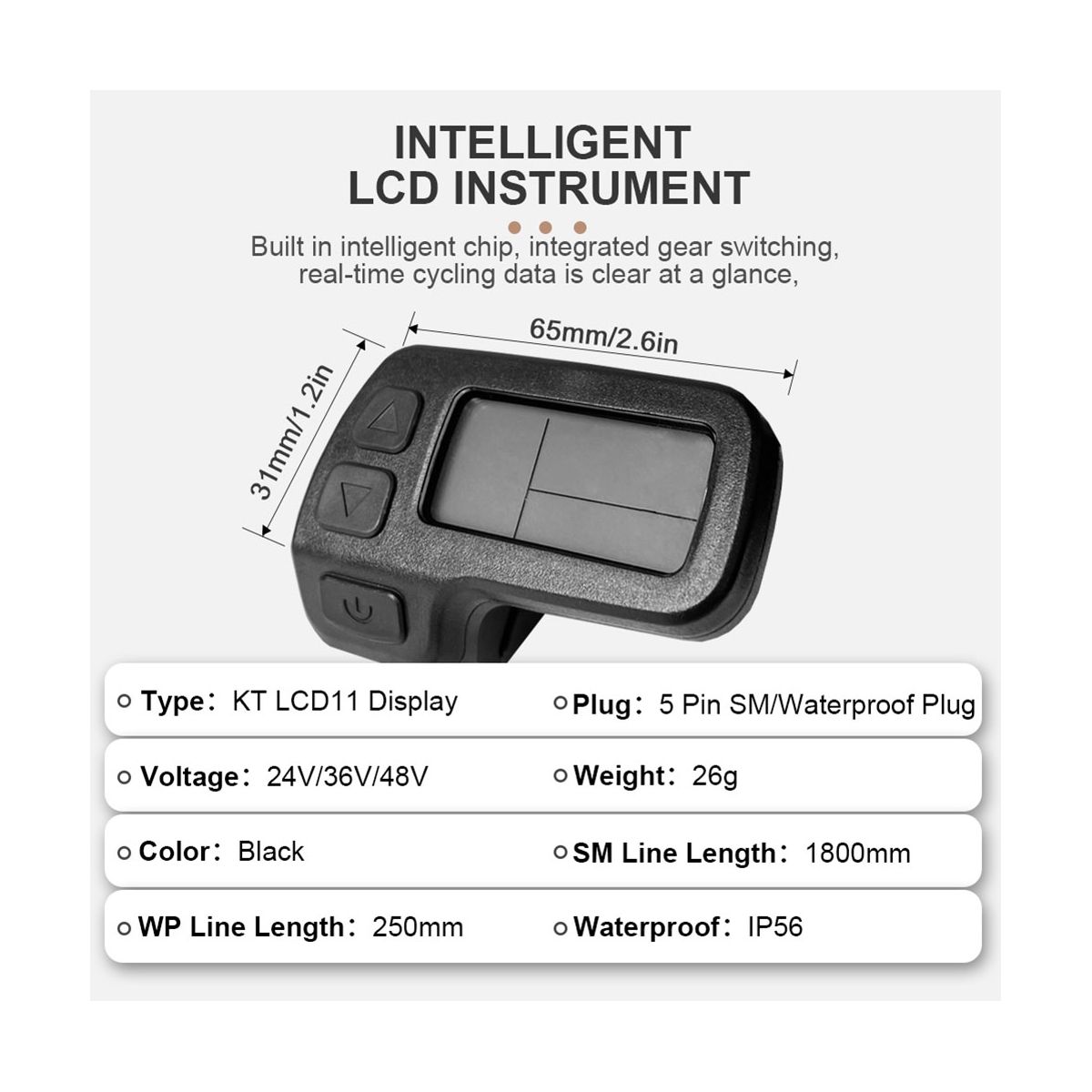

Parameter:
Type: KT-LCD11 Display
Voltage: 24V,36V,48V
Color: Black
Material: plastic
Handlebar size for holding: 22.2mm
Cable length: About 25cm(WP), About 180cm (SM) including the connector
Plug: 5 Pin SM/WP Connector

Package Contents:
1 x Electric Bike Display

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Key Features

Durable and good quality
Electric Bike Display
KT-LCD11 Display
Ebike Panel
Ebike Speed Panel
Electric Bicycle Display
The details are as described above

What's In the Box

1 x Electric Bike Display
