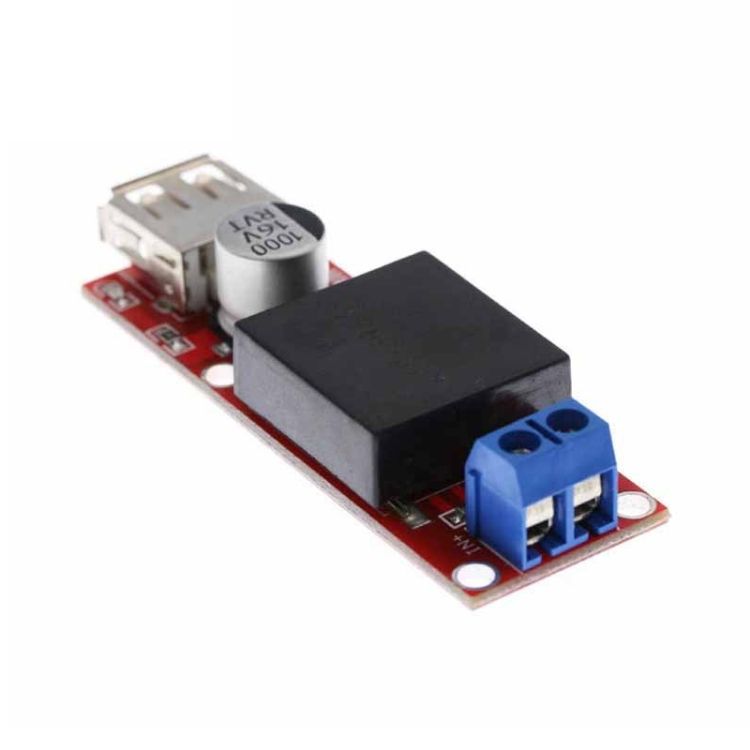

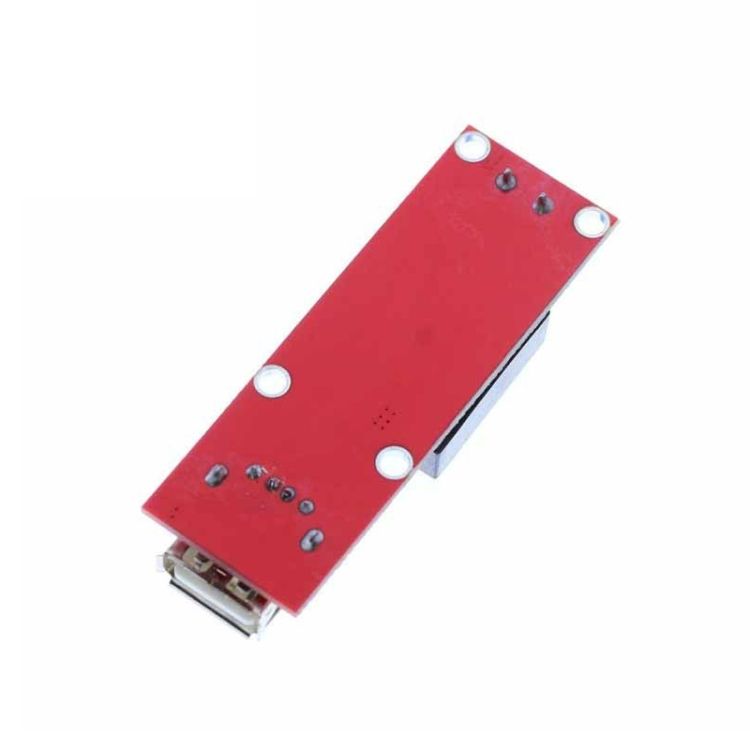

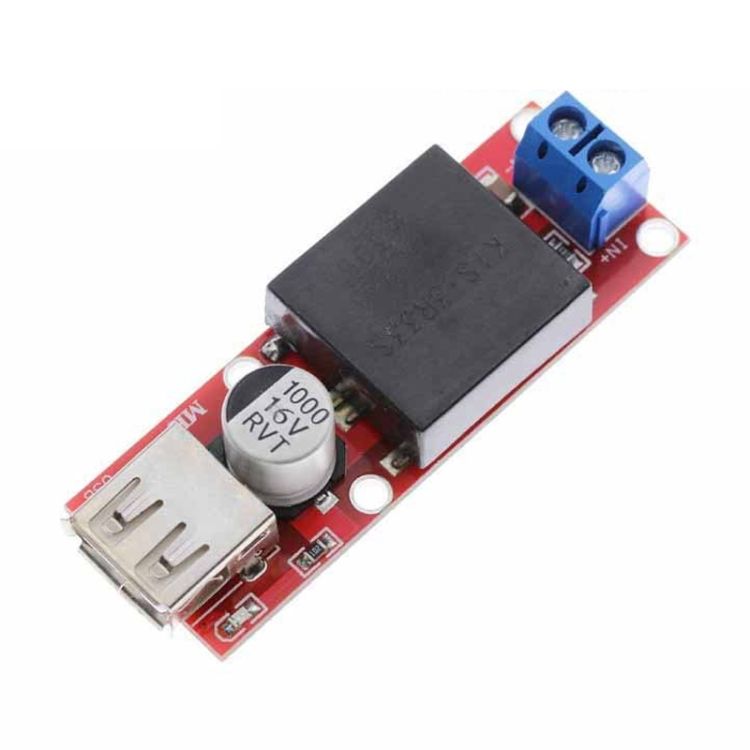

DC-DC Step-down Power Supply Module

DC-DC Step-down Power Supply Module
1. Module properties: non-isolated buck (BUCK)
2. Rectifier: synchronous rectification
3. Input voltage: 7V-24V
4. Output voltage: 5V
5. Output Current: 4A (short time)
6. Conversion efficiency: 96% (the highest)
7. Switching frequency: 340KHz
8. Output ripple: 30mV (max)
9. Load regulation: A± 0.5%
10. Voltage Regulation: A± 2.5%
11. Operating temperature: -40 celsius to +85 celsius
12. The USB recognition module
13. Note Description:
- modules indicated above IN-(enter negative), IN + (input positive), OUT-(negative output), OUT + (positive output) must be connected correctly, or may result in damage to the module.
14. the module short circuit protection the 5A current automatic protection
15. Sizes: 6x2.1x1.2cm

Key Features

DC-DC Step-down Power Supply Module
DC-DC Step-down Power Supply Module
DC-DC Step-down Power Supply Module
DC-DC Step-down Power Supply Module
DC-DC Step-down Power Supply Module

What's In the Box

1 x package
