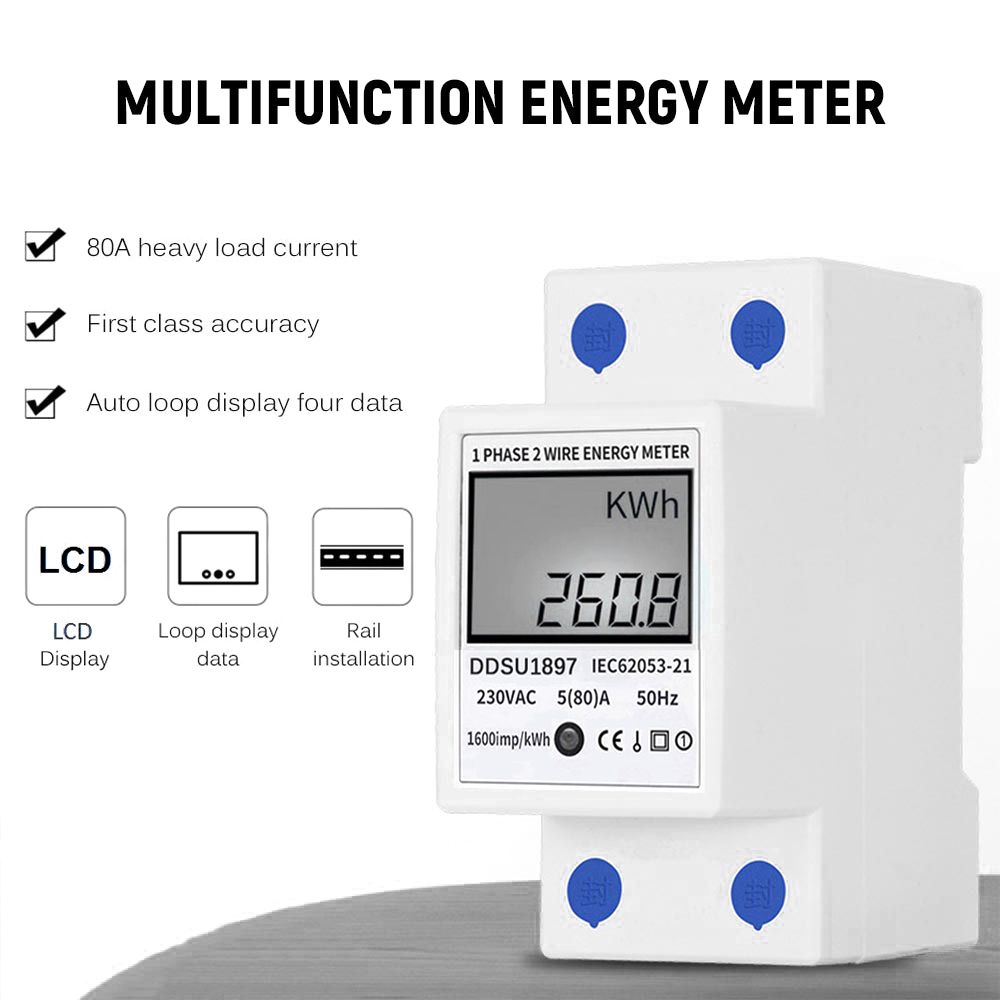

Digital Electric Energy Meter Single Phase DIN Rail

This energy meter can measure electrical parameters such as energy, voltage, current and power, and auto loop display the readings. Its compact and easy to install, safe to use.

Features:
LCD display: equipped with a LCD screen displaying digital readings, which is easy to read.

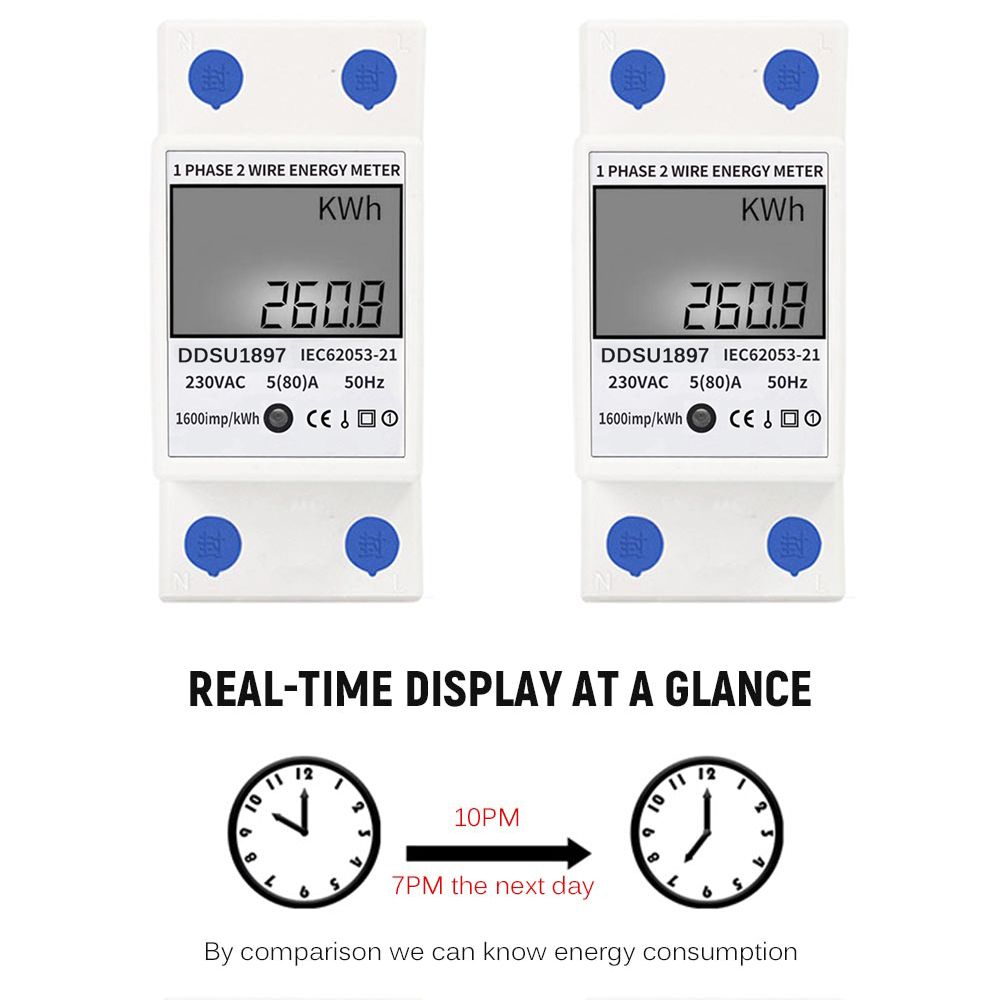

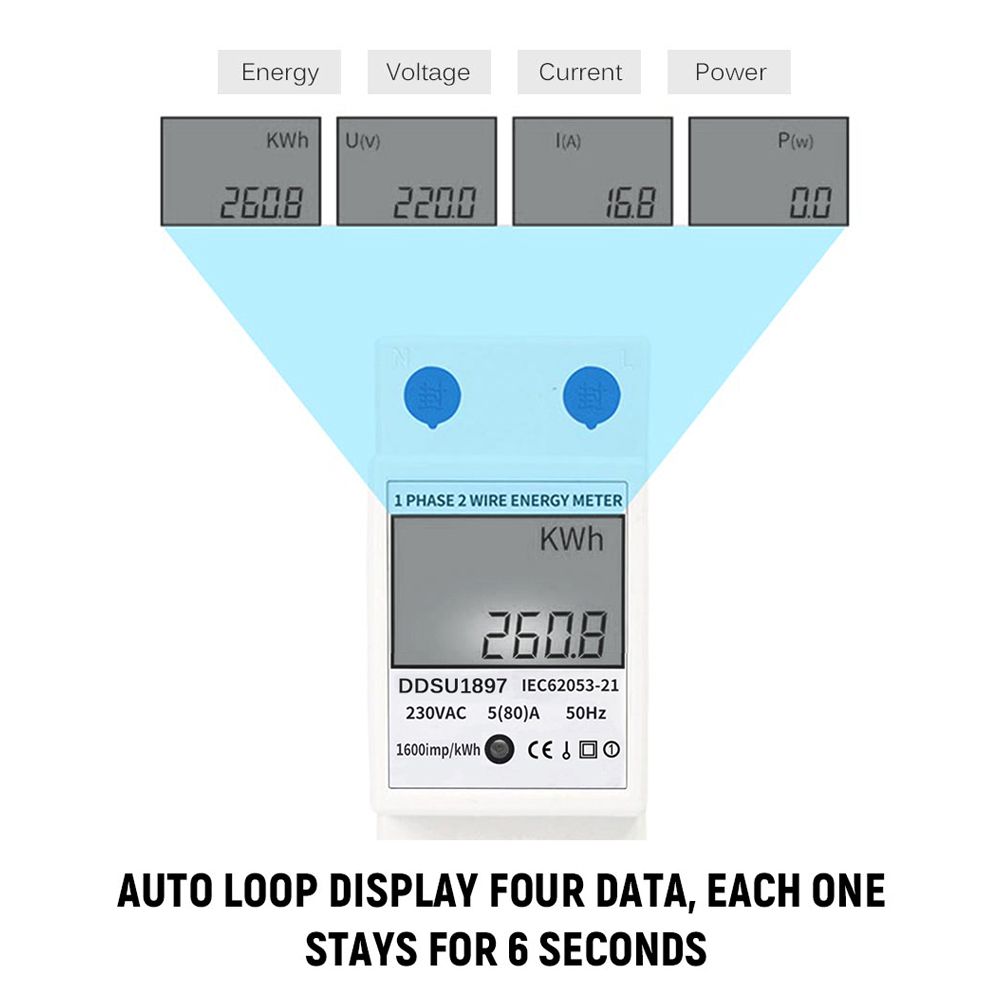

Auto loop display four data: the readings of energy consumption, voltage, current and power will be automatically switched in the screen, each one stays for 6 seconds.

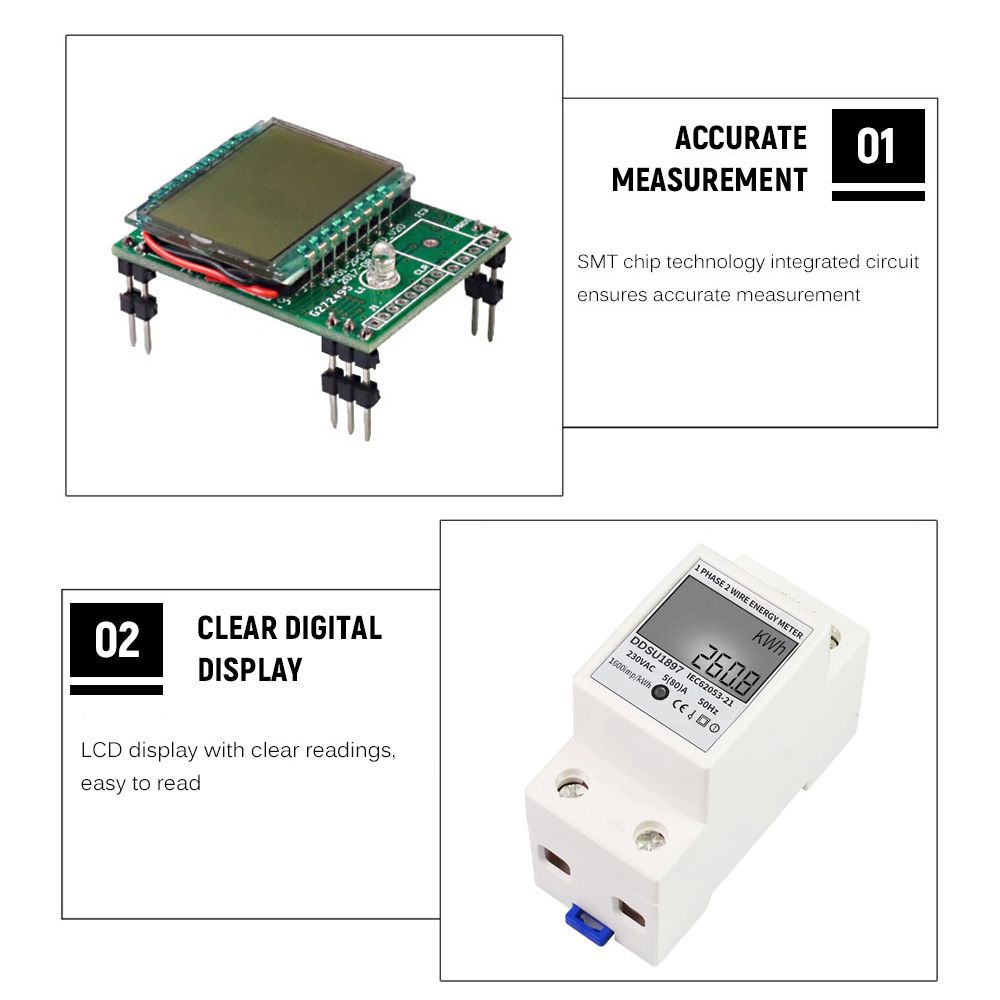

Quality material and high accuracy: retardant housing to ensure safety, SMT chip technology integrated circuit provides accurate measurement, excellent conductivity, corrosion resistance, and stable performance.

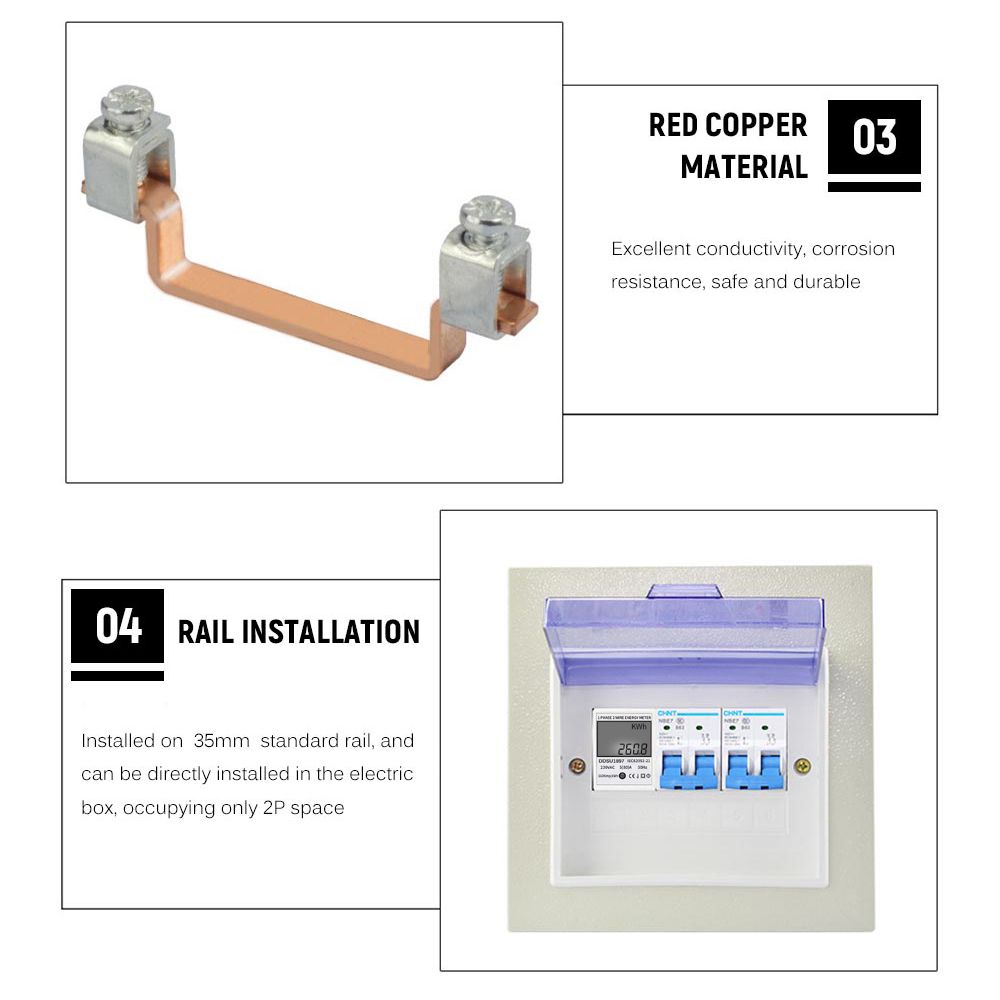

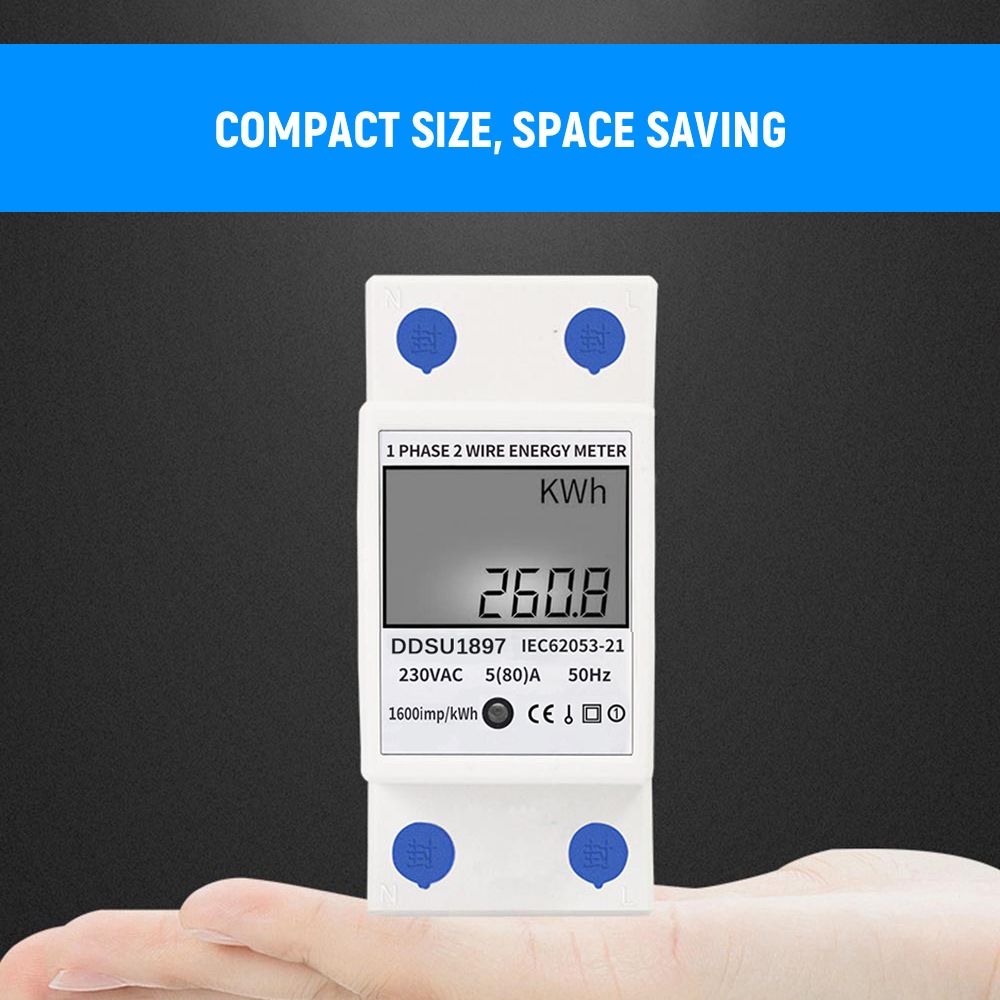

Compact and user-friendly: 35mm rail for installation, and can be directly installed in the electric box, occupying only 2P position.

Specifications:
Material: ABS
Model: DDSU1897
Display: LCD without Backlight

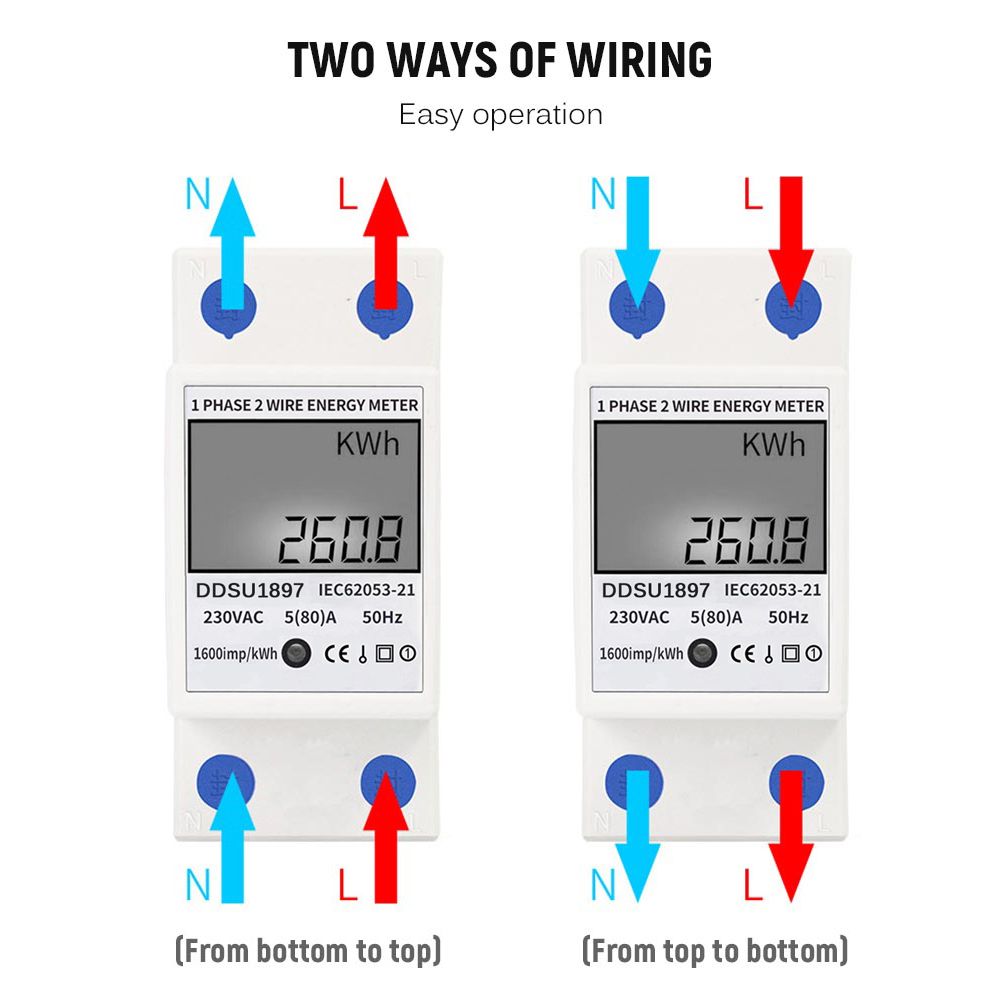

Wiring: top points for input and bottom points for output, or vice versa
Current: 5(60)A/5(80)A
Voltage: 220VAC/50Hz
Power: 17000W
Mounting: Distribution box / DIN rail
Display: LCD
Operating Temperature: -20℃~55℃
Item Size: 7.85 * 3.65 * 4.3cm / 3.09 * 1.43 * 1.69in
Item Weight: 100g / 3.52oz
Package Weight: 135g / 4.76oz
Package Size: 8 * 5 * 5cm / 3.14 * 1.96 * 1.96in

Packing List:
1 * Energy Meter
1 * User Manual

Key Features

LCD display: equipped with a LCD screen displaying digital readings, which is easy to read.
Auto loop display four data: the readings of energy consumption, voltage, current and power will be automatically switched in the screen, each one stays for 6 seconds.
Quality material and high accuracy: retardant housing to ensure safety, SMT chip technology integrated circuit provides accurate measurement, excellent conductivity, corrosion resistance, and stable performance.
Compact and user-friendly: 35mm rail for installation, and can be directly installed in the electric box, occupying only 2P position.

What's In the Box

1 * Energy Meter
1 * User Manual
