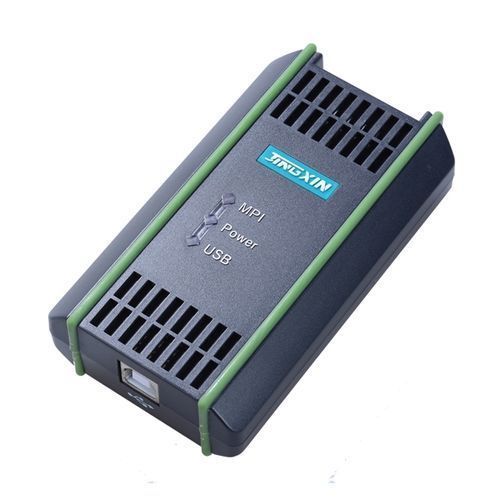

6ES7 972-0CB20-0XA0 Cable USB To RS485 Adapter For Siemens S7-200/300/400 PLC

Specifications:



IT'S CHINA MADE
1.support 6ES7972-0CB20-OXAO operating system: Windows2000/XP/Vista/Win7 (32)

2.support 6ES7972-0CB20-OXAO programming software version: STEP 7 V5.2, and above, STEP7 Micro / Win 4.0 and above

3.Full speed USB interface, compatible with USB V2.0 specification

4.Power Supply: USB bus-powered, low power consumption is about 100mA, with overcurrent protection and surge protection

5.Optical isolation voltage: 1000 VDC

6.USB port with anti-surge protection

7.RS485 port with lightning surge protector, repeatability surge capacity: Ipp = 100A (10/700us, 4KV)

Conform to Standard: ITU-TK20/21, and VDE 0 433. ± 15KV ESD (electrostatic) protection

8.over-current recovery protection, RS485 port can withstand voltages up to 60V due to sustained over-current

9.Support for MPI baud rate: 19.2Kbps, 187.5Kbps automatic adaptation

10.support the baud rate of the PPI: 9.6Kbps, 19.2Kbps, 187.5Kbps automatic adaptation

11.support the long-distance communications, the maximum communication distance is 1000 m (RS485 side, when the baud rate the is 187.5Kbps)

12.with power indicator, data reception indicator, data transmission indicator

13.Each PC only supports one 6ES7972-0CB20-OXAO programming cable

14.Operating temperature: -20 ~ +75 ℃

15.Cable length: 5 m, Color: Black

What's In the Box

Packing list 1 x 6ES7 972-0CB20-0XA0, support win7 64 bit, 840D CNC programming download cable
