Cassette Music Digitizer 3.5mm RCA Audio Capture Adapter Recorder To SD USB Disk

Specifications:
Audio capture recorder with 3.5mm & RCA IN ports, remote controlled music digitizer record any audio as Mp3 file, support cell phone, DVD player, cassette player, phonograph, STB, etc.

How to Use:
1. Connect the audio capture to a USB charger (DC5V 1A or above).
2. Connect the audio source device (cassette player, cellphone, DVD Player, etc.) to the capture with a 3.5mm audio cable or a RCA cable.
3. Format a SD card or a USB disk as FAT32 on a computer, NTFS is not support.
4. Plug the USB disk in the capture (please do NOT plug in the SD card and USB disk together). Now the audio capture is in standby, the indicator light keeps on green.
5. Press the RECORD button to start recording, the green light is flashing, then press the RECORD button again when you want to stop recording.
6. Wait about 10 seconds after the light flashing, remove the USB flash driver.
7. Then you could save the recorded MP3 files on a computer, or share it to your friends

Type: Music Capture Recorder
Power Supply: DC 5V/1A or above
Storage Type: U Disk, SD Card (32GB Max, FAT32) (Not Included)
Audio Input: 3.5mm Audio, RCA (Red/White)
Audio Output: 3.5mm Audio
Playback: You could connect an earphone to listen the recorded music.
Recorded Format: MP3 (128 KBPS, 44.1KHz, Dual-Mono)
Dimension: 6.58cm x 6.18cm x 2.31cm/2.59" x 2.44" x 0.91" (Approx.)

Notes:
Please make sure the output electric current of the USB charger is enough 1A (does NOT powered by a computer), and do NOT touch the cables when recording to avoid noise in the recorded file.
Please format the USB flash drive or SD card as FAT32 before use.
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

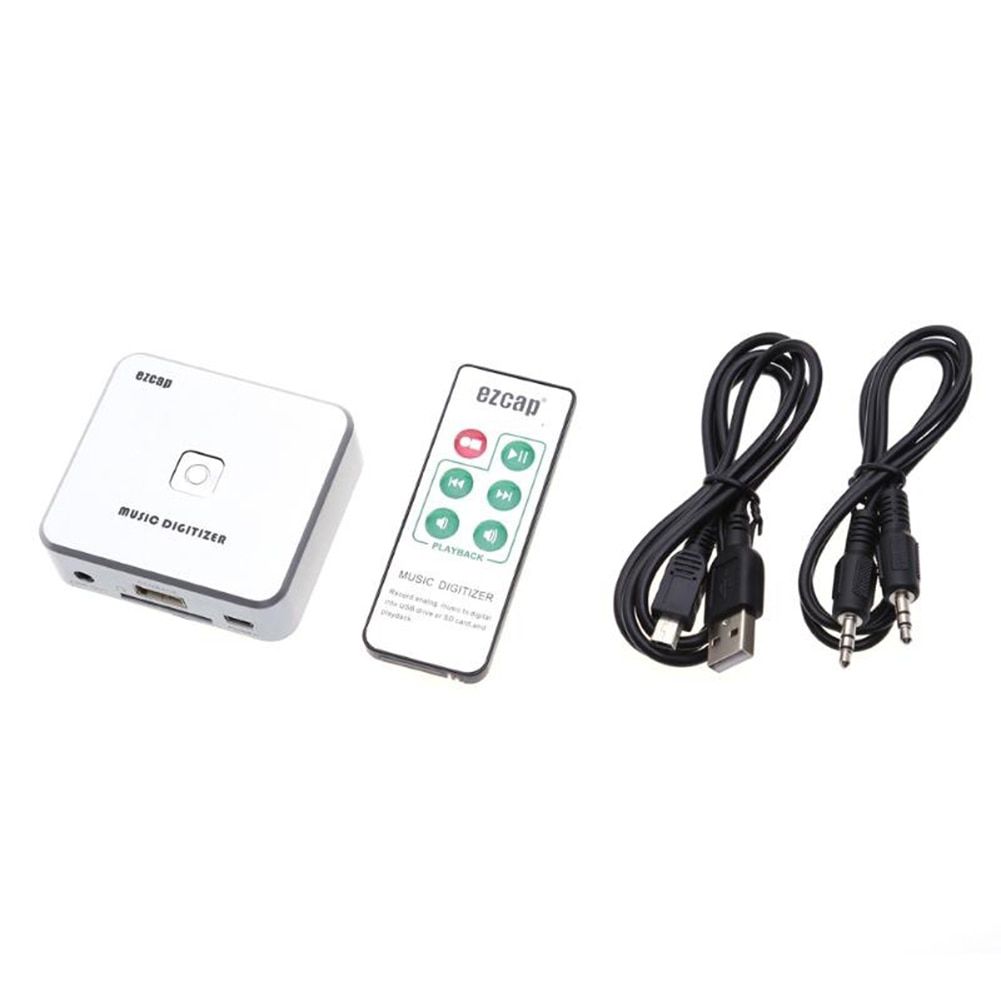

Package Includes:
1 x Music Capture Recorder
1 x USB Power Cable
1 x Charger Head
1 x 3.5mm Audio Cable
1 x Remote Control
1 x English User Manual

What's In the Box

1X Cassette Music Digitizer 3.5mm RCA Audio Capture Adapter Recorder to SD USB Disk
