True RMS Digital Multimeter Backlight AC Voltage Current Resist Meter Tester

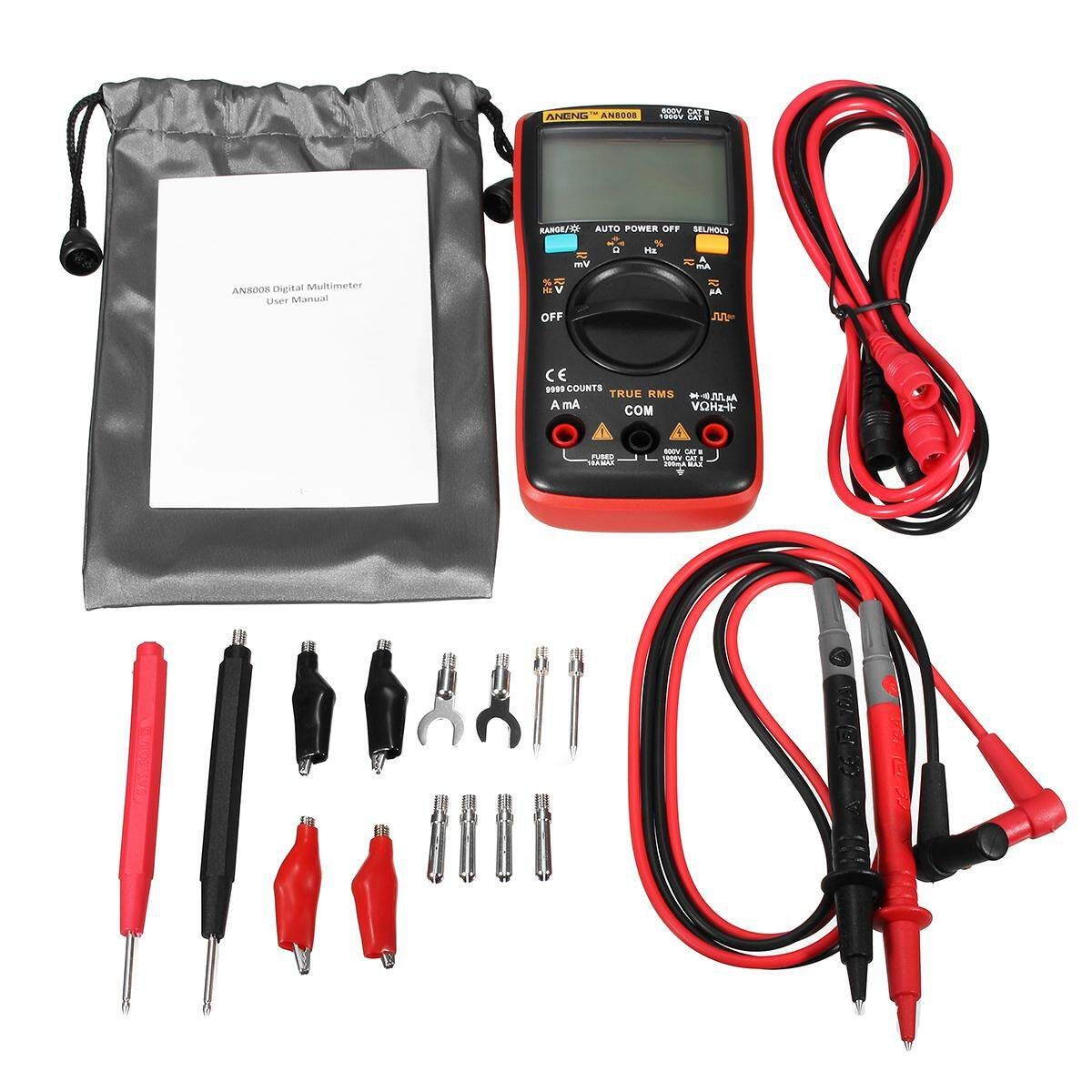

Package Included:
1 x AN8008 True-RMS Digital Multimeter
1 x Storage Bag

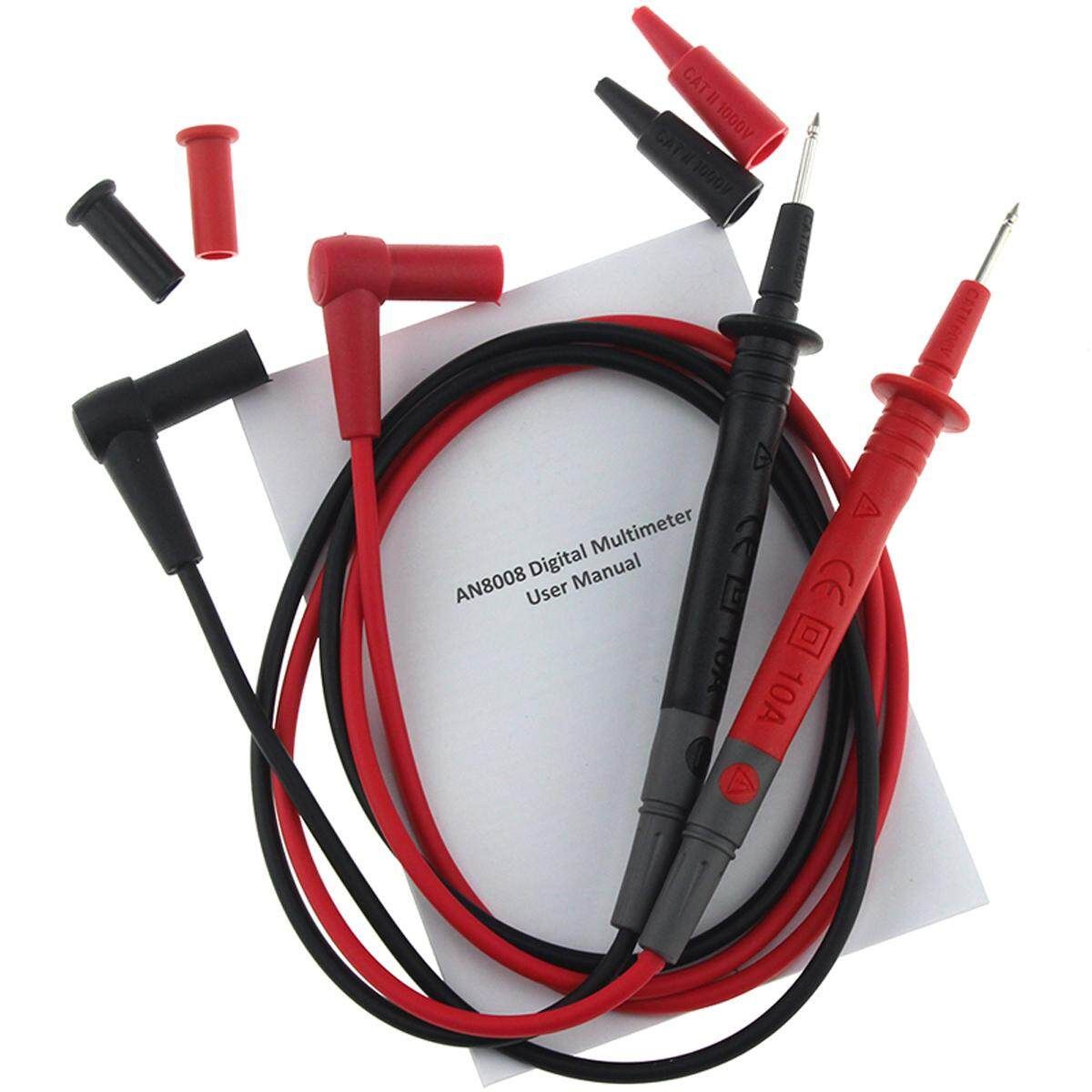

2 x Leads
1 x Multifunctional line
1 x Manual

Features:
1. Auto/manual ranges.
2. True RMS.
3. 550V protection in Resistance, Capacitance and Frequency ranges.
4. Built-in large LCD display, display 9999 counts
5. Sample rate: 3 times per second
6. Design with backlight.
7. Relative measurement
8. Data hold
9. Polarity identification
10. Low voltage indication
11. Square wave output
12. 9.999A high current and low current measurement
13. Auto off
14. Main measurements: AC/ Voltage, AC/ Current, Resistance, Capacitance, Diode and Continuity Testing, Frequency and duty cycle.
* Frequency: 0.01Hz to 9.999MHz
* Capacitance: 0.001nF to 9.999mF
* AC volts: 0.001mV to 750V
* volts: 0.001mV to 999.9V
* AC current: 0.01uA to 9.999A
* current: 0.01uA to 9.999A
* Resistance: 0.01Ω to 9.999MΩ
* Duty cycle: 1% to 99%
*Square Wave Output:50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/900Hz/1000Hz/2000Hz/3000Hz/4000Hz/5000Hz

Specifications:
1. Capacitance: 9.999nF(±5.0%+20),99.99nF/999.9uF/9.999uF/99.99uF/999.9uF(±2.0%+5), 9.999mF(±5.0%+5)
2. volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V(±0.5%+3)
3. AC volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V(±1.0%+3)
4. current: 99.99uA/999.9uA(±0.8%+3),999.9mA/9.999A(±1.0%+3)
5. AC current: 99.99uA/999.9uA(±1.0%+3),999.9mA/9.999A(±1.2%+3)
6. Resistance: 99.99Ω(±1.0%+3),999.9/9.999K/99.99K/999.9K(±0.5%+3),9.999MΩ(±1.5%+3)
7. Frequency: 99.99/999.9/9.999k/99.99k/999.9k/9.999M (±0.1+2)
8. Duty cycle: 1% to 99%(±0.1%+2)
9. Measurement mode: Double-integral style A/D transform
10. Over range indication: OL
11. Working environment: 0~40℃, relative humidity 80%
12. Supply : 3V (1.5V AAA batteries x 2) (Not included)
13. Dimension: approx. 132 x 65 x 30 mm
14. Net Weight: approx. 113g











a a a a a

Key Features

: Red and black
Net Weight: approx. 113g
Dimension: approx. 132 x 65 x 30 mm
Over range indication: OL
Duty cycle: 1% to 99%(±0.1%+2)
Sample rate: 3 times per second
Design with backlight
and high quality
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

• 1 x AN8008 True-RMS Digital Multimeter
• 1 x Storage Bag
• 2 x Leads
• 1 x Multifunctional line
• 1 x Manual
