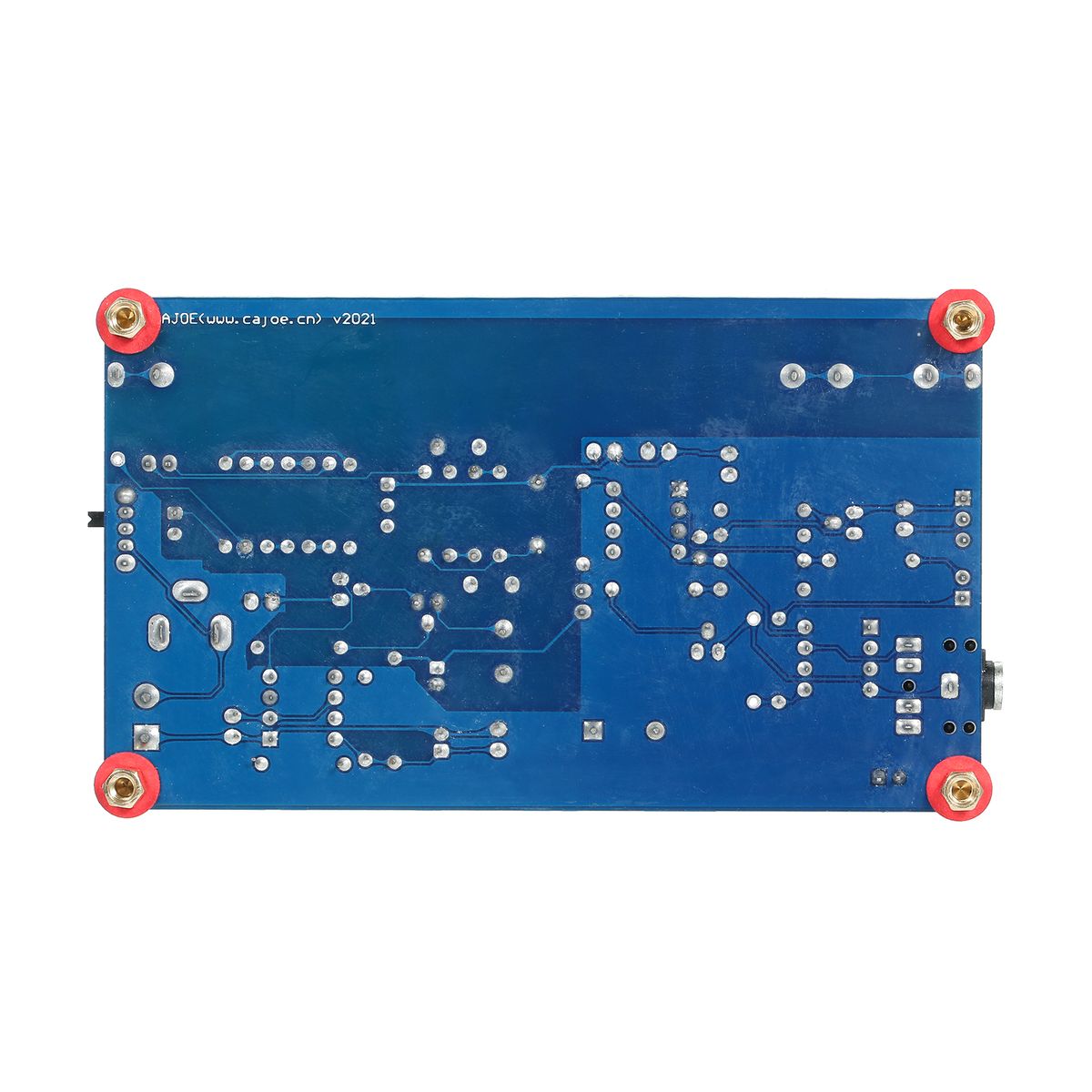

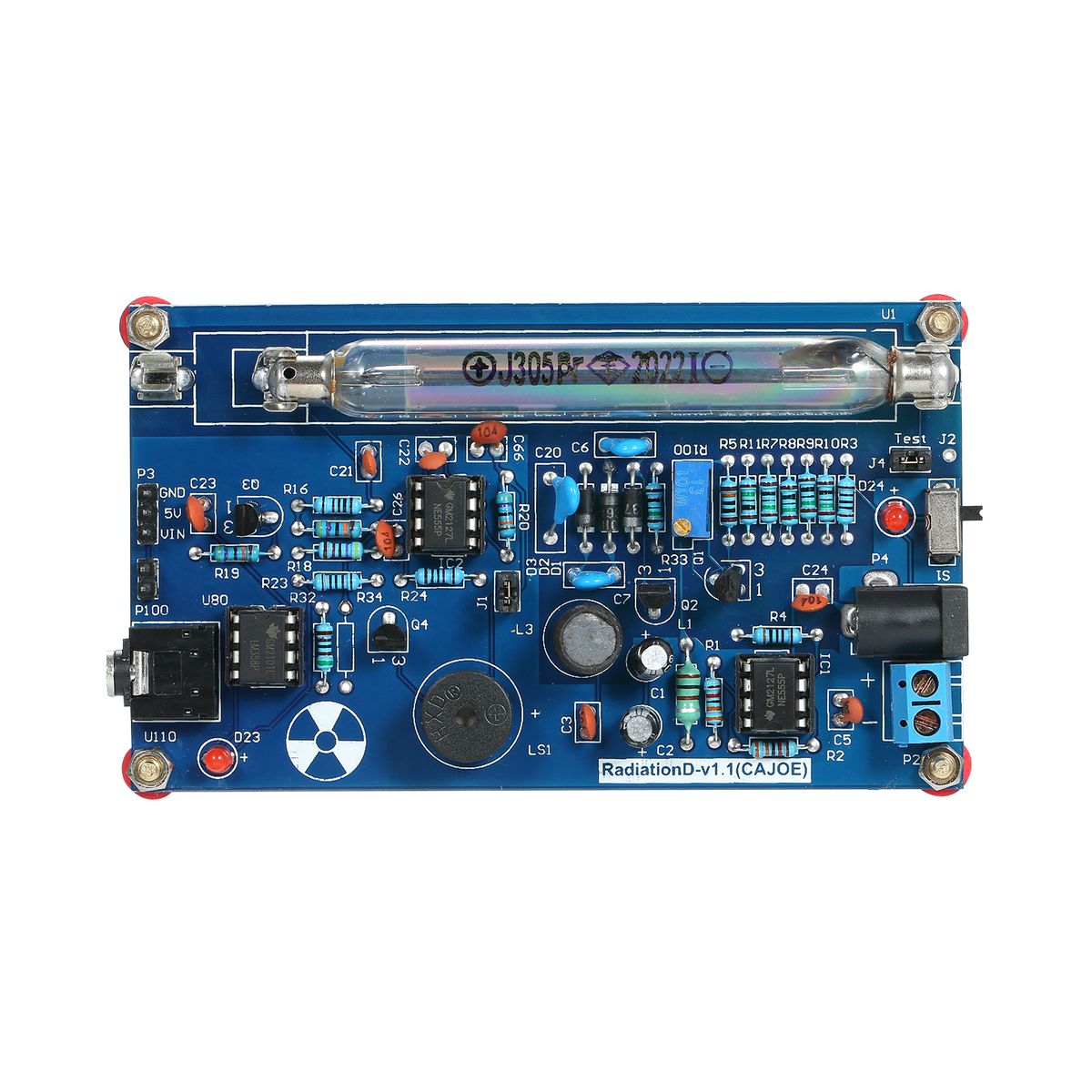

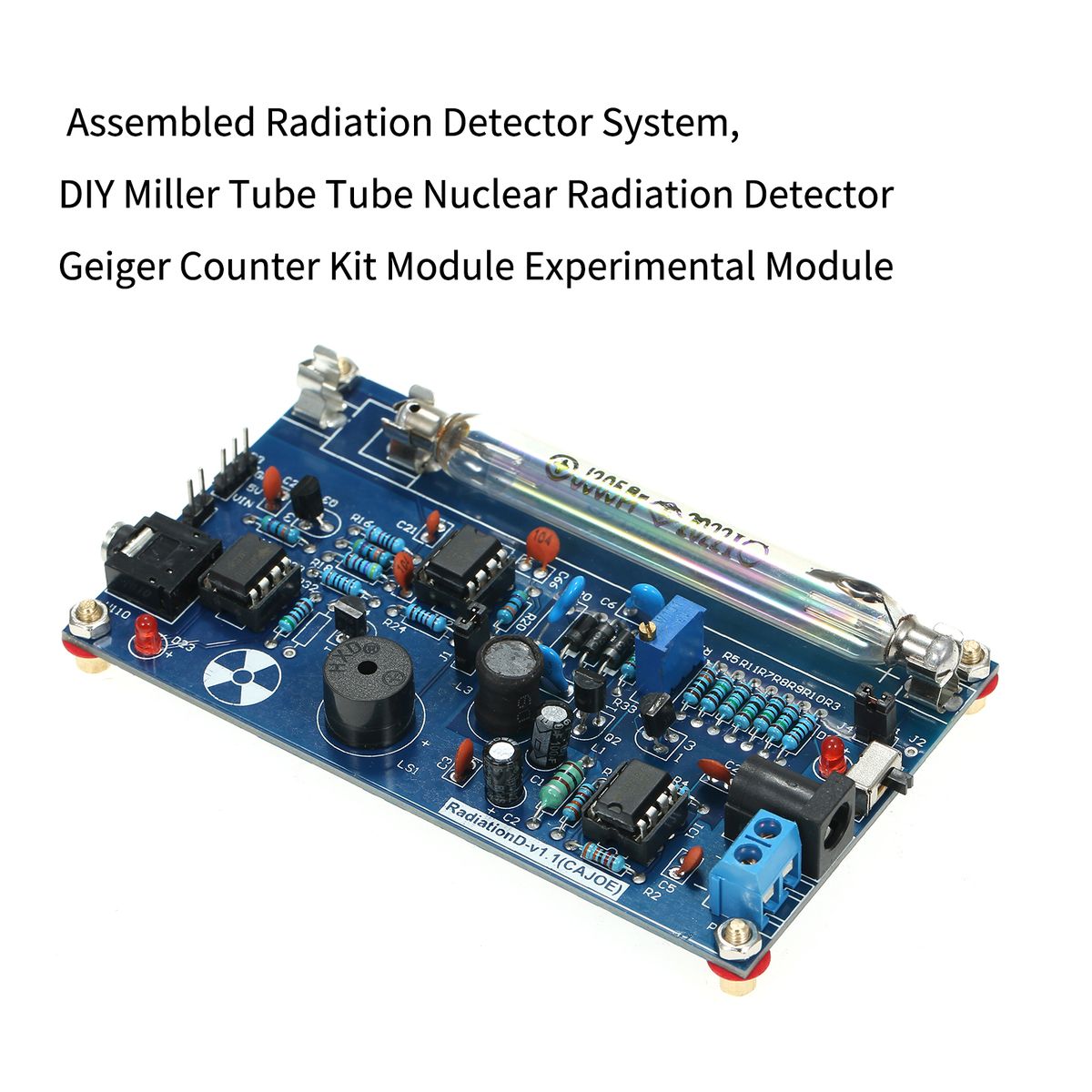

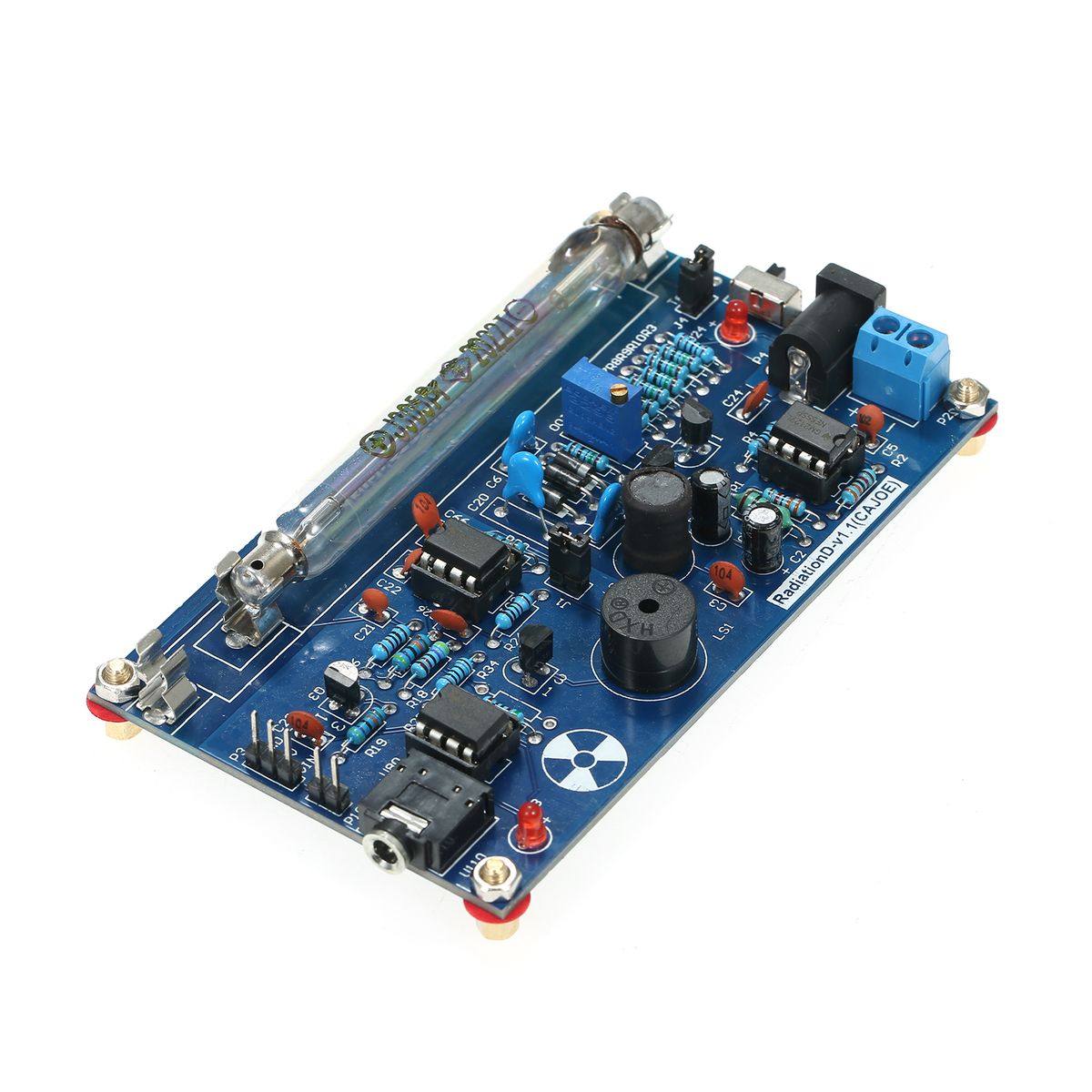

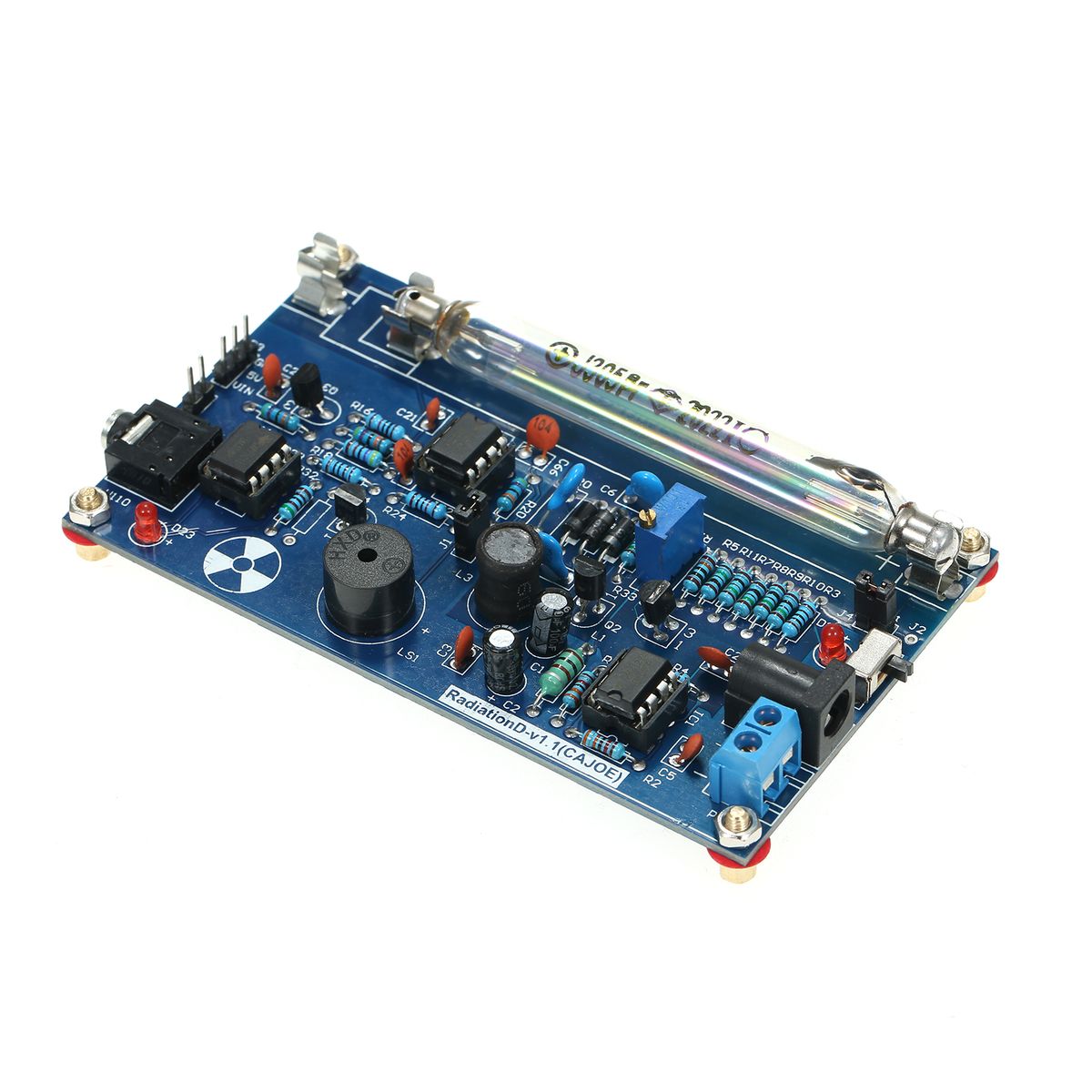

Assembled Radiation Detector System, DIY Miller Tube Tube

Features:

This kit is compatible with Arduino.

Made of premium quality materials, it will not rust and is durable.

Supports most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330~600V operating voltage of the Geiger tube can be supported).

Support the computer (PC) data acquisition, Matlab analysis and processing.

Good kit for MCU software developers that just want to drive Geiger Tube for their own software.

Specification:

Color: multicolor

Material: metal

Geiger tube parameters:

Technical parameters diameter: Phi;10 plusmn;0.5mm

Total length: 90 plusmn;2mm

Starting voltage: lt;; 350V

Recommended operating voltage: 380V

Minimum plateau length: 80V

Maximum plateau slope: 10%/80V

Extreme operating voltage: 550V

The maximum count rate: 25 times / min

Life: gt; 1 x 10^9 pulse

Medium temperature: -40 ~ 55 ℃

Package size: 19 * 13 * 7cm

Package weight: 200g

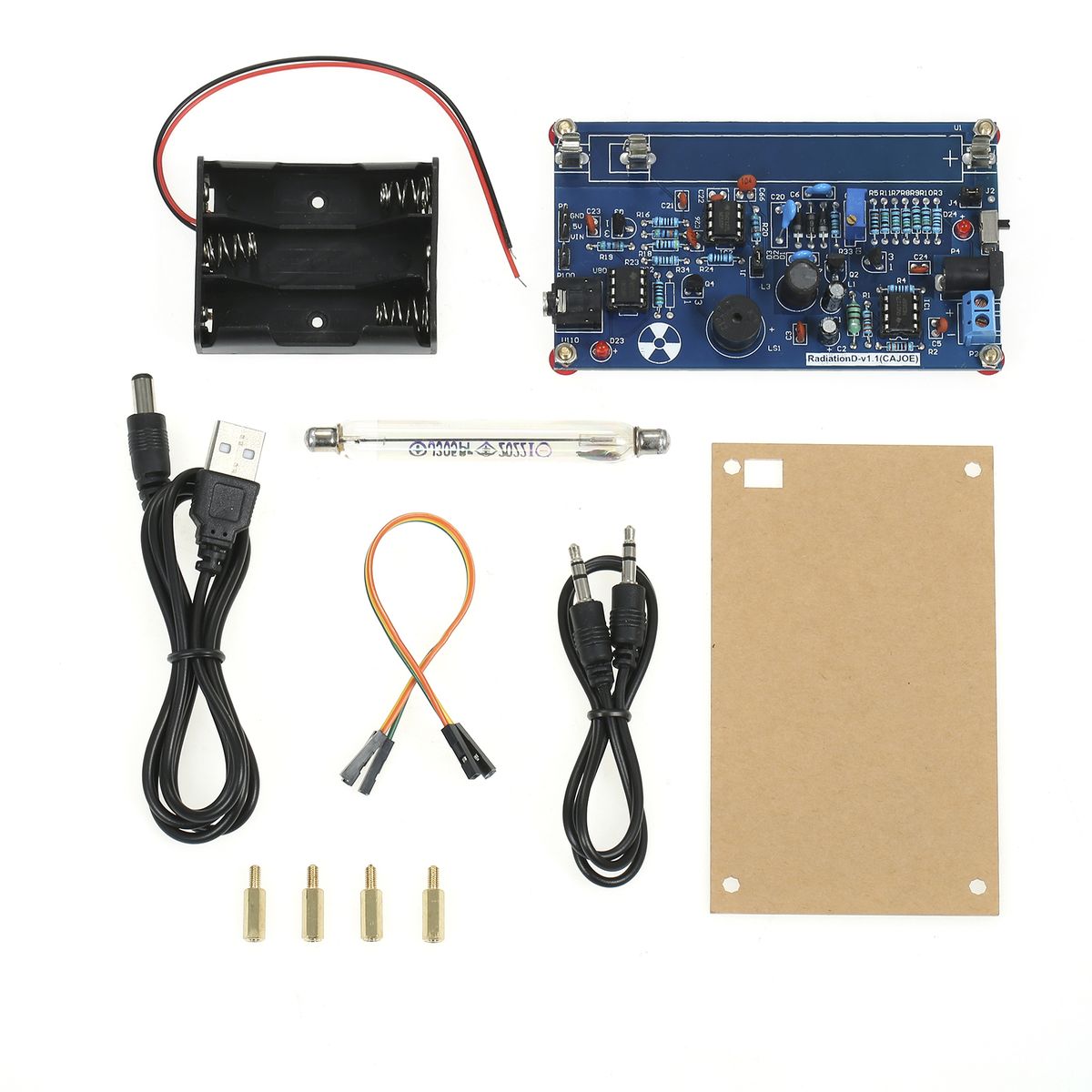

Packing List:

1 * Assembled Radiation Detector System

1 * GM Tube

1 * Power Supply Cable

1 * Battery Holder (without batteries)

3 * Jumper Wires

4 * Nuts

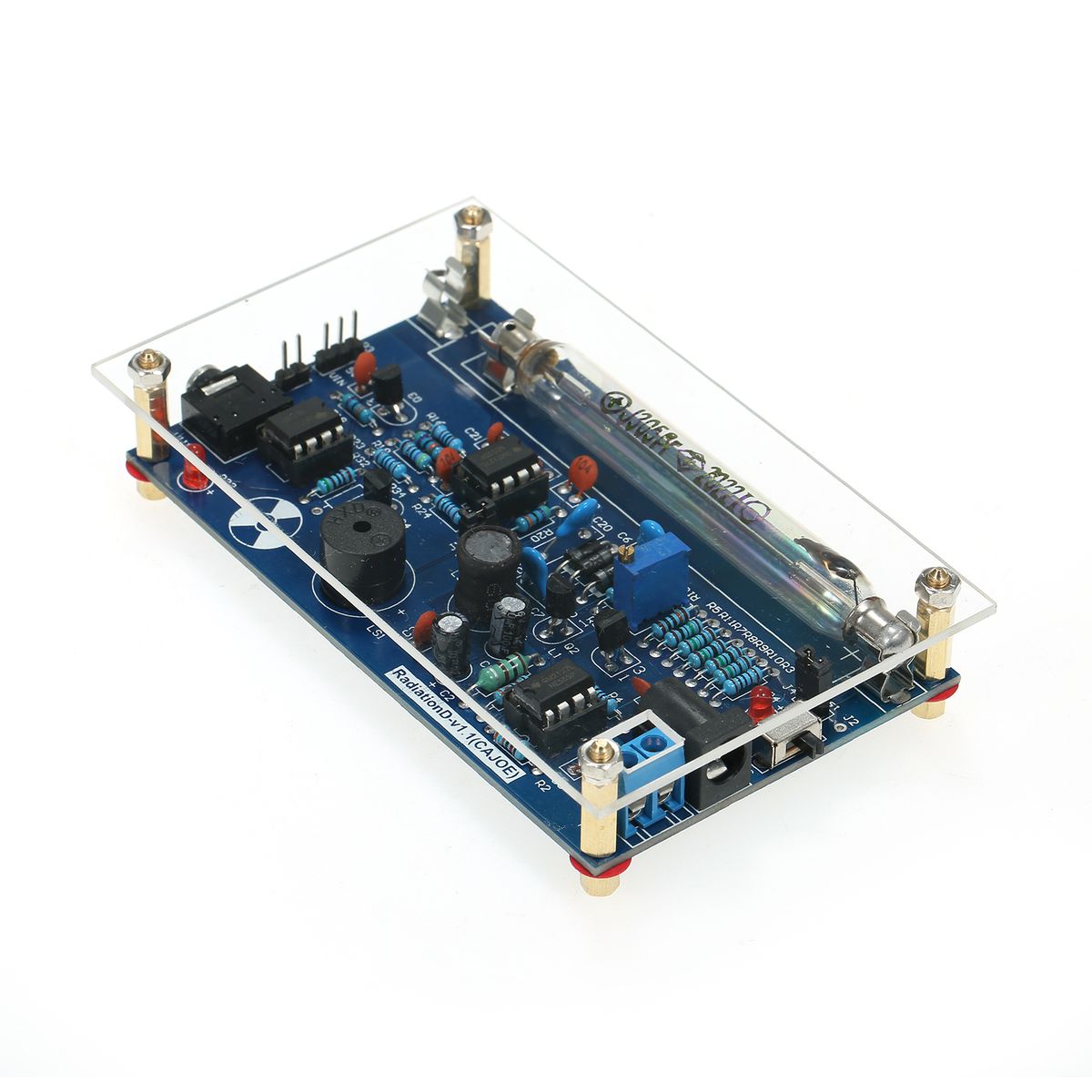

1 * Acrylic Cover
