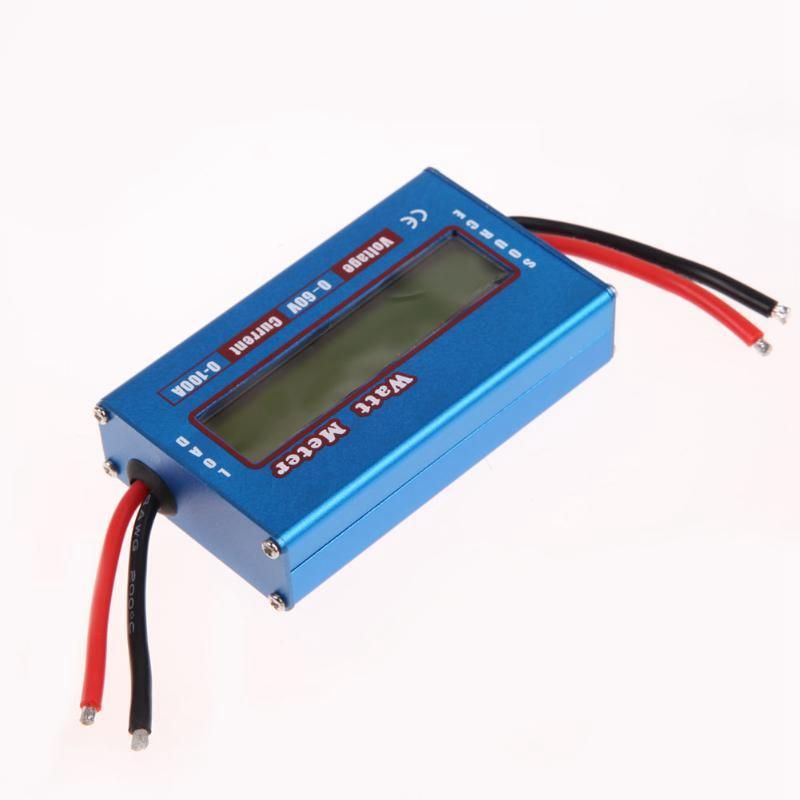

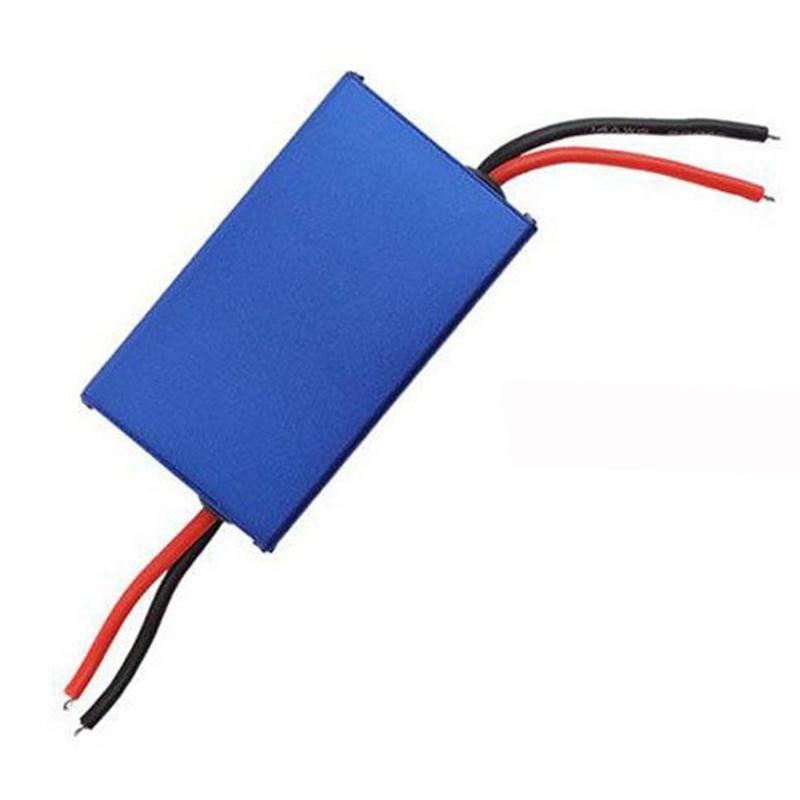

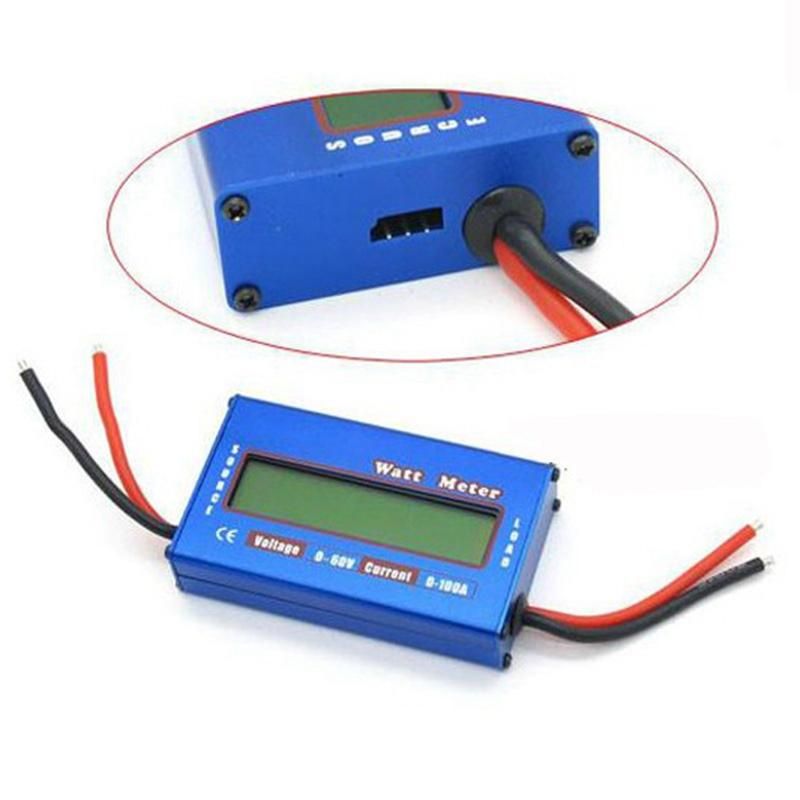

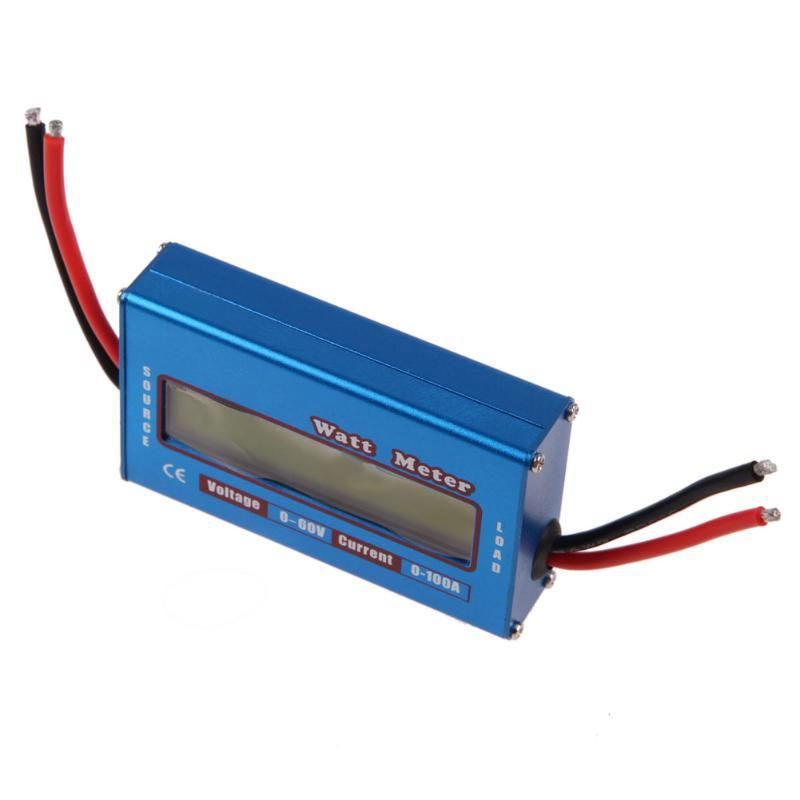

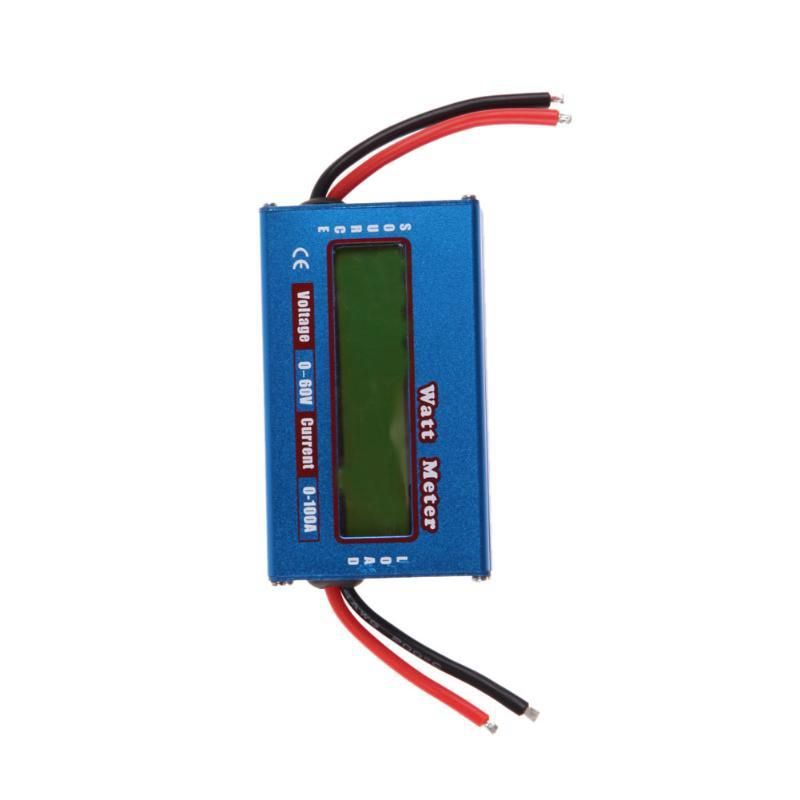

Digital Wattmeter Watt Meter Power Meter DC 60V 100A Balance Voltage Battery Checker

Brand new and high quality Digital LCD screen gives clear number readings Handles up to 100 amps intermittently and 50 amps continuous duty
Connecting load end to the battery provides real-time battery charging reading Handles 0 to 60 volts Works on 12 24 36 and 48 volt battery bank Extremely low power consumption of 7 mA More efficient than any LED meter Measure energywhchargeah powerwcurrentA and voltageV
Accurate & precise 001 A cuurrent and 001 V voltage resolutions Measures Amps except for Wattson and Voltage minimumsagRugged- handles 50A continuous and 100 A at 60V
Acts like a wire so doesn't affect model's performance Precision Alu-Chrom current sensing resistor with only 0001 Ohms resistance and circuitry that draws only 36 mA USes DSP to increase resolution and differential measurement amplifiers to increase noise immunity

Voltage0V-4V-60V 001V Resolution
Current0-100 A 001A Resolution
Power0-6554 W 01W Resolution
Charge0-65 Ah 0001Ah Resolution
Energy0-6554 wh 01 Wh Resolution
Measurement Update period400mS
Signal Sampling Ratesamples
Data Queue Sequence time 2 seconds
In Circuit Resistance0001 Ohms
Operation Current 36 mA
Materialplastic
colourblue

Package Contents
1 x Watt Meter

Only the above package content other products are not included
Note Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm

What's In the Box

1 x Watt Meter
