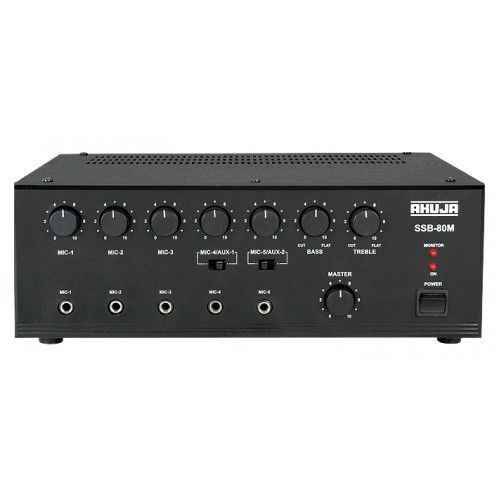

SSB-80M (80 Watts) Medium Power PA Amplifiers

• 5 Mic & 2 Aux Inputs.
• Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
• Cut type Bass & Treble controls.
• Instant transfer to DC power (Car Battery) if AC power fails.

• Power Output:
  110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD

• Output Regulation:
  ≤ 2 dB, no load to full load at 1kHz


• Input Channels:
  5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470kΩ


• Frequency Response:
  65-15,000Hz ±3dB


• Signal to Noise Ratio:
  60dB


• Tone Controls:
  Bass: -10dB at 100Hz, Treble: -10dB at 10kHz


• Outputs:
  Preamp 200mV/600Ω


• Speaker Outputs:
  4Ω, 8Ω, 16Ω, 70V & 100V


• Power Supply:
  AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)


• Power Consumption:
  AC: 180VA DC: 3A


• Dimensions:
  W355 × H133 × D285 mm


• Weight:
  8.5kg

Key Features

5 Mic & 2 Aux Inputs.8.5
Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
Cut type Bass & Treble controls.
Instant transfer to DC power (Car Battery) if AC power fails.
