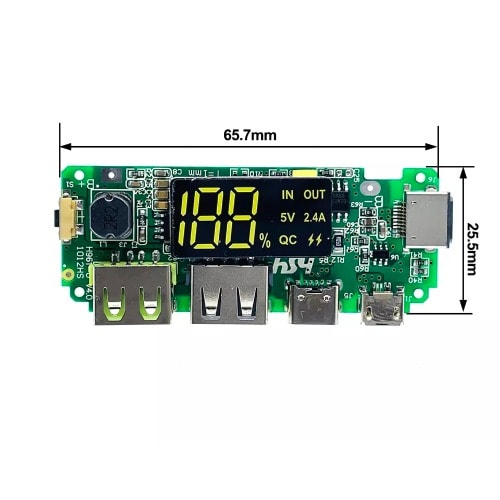

5V 2.4A Dual USB 18650 Battery Charger Power Bank Module With Digital LED
1 / 3
5V 2.4A Dual USB 18650 Battery Charger Power Bank Module With Digital LED
₦5,950
Secure checkoutRefund policy
Delivery
Get an estimate on delivery to your location.
Delivery to
Choose your state to see the delivery fee and when it arrives.
- Pay by card, bank transfer or USSD at checkout
Product Description
This is a mobile power module accessories with 18650 Lithium Battery Circuit board shell to meet the individual needs of your DIY, but you must understand basic electronic assembly.
Motherboard comes with protection function: Charging overcharge protection, over-discharge protection, overcurrent protection. Intelligent output device after charging full, automatically stop charging, to prevent mobile phones overcharge. Output voltage and current stable will not harm user devices.
Specifications:
1.Input Parameter: 5V/1 - 1.5A
2.Input Interface: V8 interface micro USB
3.Output Parameter: Double USB Output:5V/2.4A, 5V Quick Charge
4.Conversion Rate: 90% Average
5. Battery parallel requirements between 3.2-4.2V can work properly, the maximum can not exceed 200,000mA
Safe Design:
1.Power has designs of overcharge, overdischarge, short circuit protection. You don't need to worry about the time of charging
2.Intelligent Output. When equipment is fully charged, it will stop charging automatically to prevent from overcharging
3.Power has multiple safe designs.Output voltage and current is stable, never to damage user's device
4.Operating temperature range is wide (-5 degrees Clecius—45 degrees Clecius), can provide over tmperature protection
Function Feature: with a hightlight LED digital display (long press or double click power key to start)
Electricity Quantity Display:4 class LED digital screen display electricity quantity, non-operating state will be intelligently off
Charging Display:
When charging, the LED digital screen shows the battery power
Discharging Display:
When discharging, the LED digital screen displays the current power and the display saves about 30 seconds (Double click the button to restore the Display)
After charging and discharging, the system will provide accurate battery instructions.
Mainboard Protection Function:
Prevent Overcharge protection:
- Detection Voltage: 4.20 +/- 0.05V
- Release Voltage: 4.100 +/- 0.05V
- Detection delay time: <200 ms
- Detection Voltage: 3.0 +/- 0.10V
- Release Voltage: 3.10 +/- 0.10V
- Detection delay time: <100 ms
Short Circuit Protection:
- Short Detection delay time: <50 u S
- Release Condition: Cut off load
- Normal current consumption of PCM: Max 60 u A
- Standby current consumption: 50 u A
- Max. Continuous charge/discharge current: 1.5/2.4A
- Suggested working temperature: -5 ~ 45 degrees Celsius
Installation:

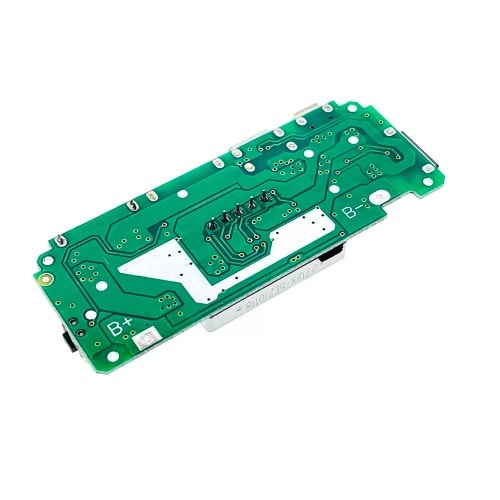

- Circuit board B- connects power negative, B+ connects positive. Don't inversely connect as it will result in burning of this board. Power is series soldering, so please be sure of the insulation between power and circuit when installing the battery
- Double press the switch and LED digital display screen starts, then double pressing again turns it off
Note that the battery lead should not touch the circuit board, so as not to cause a short circuit.
