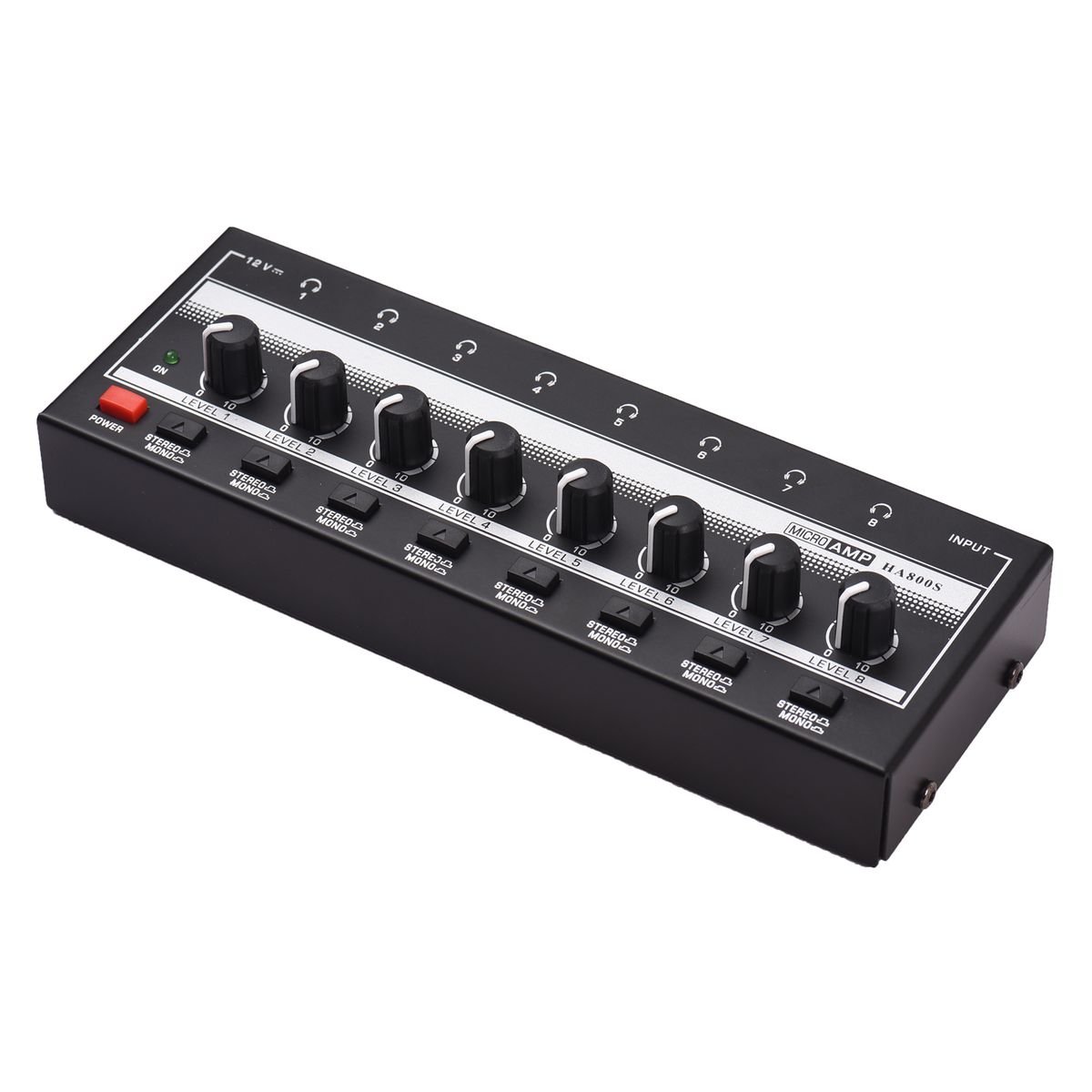

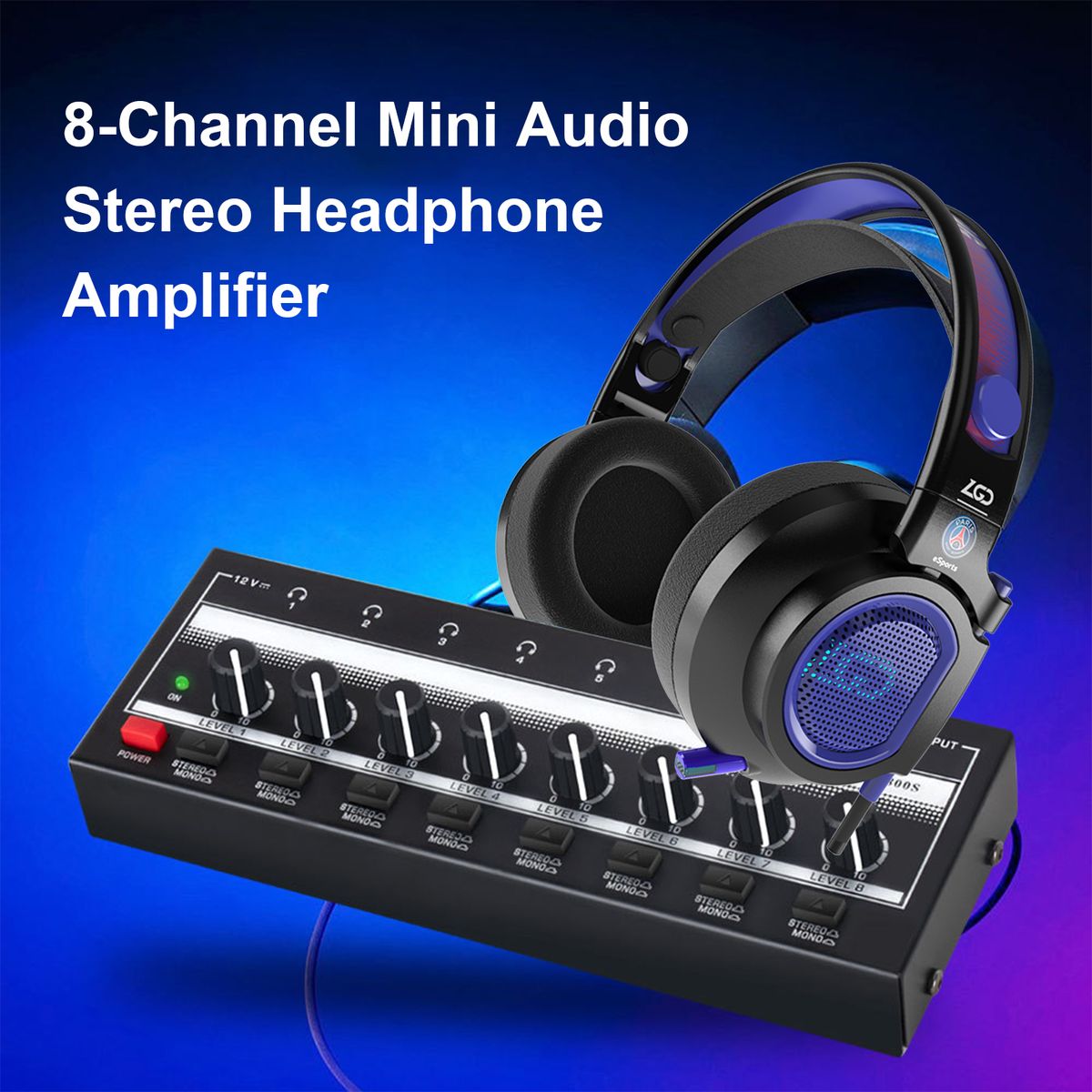

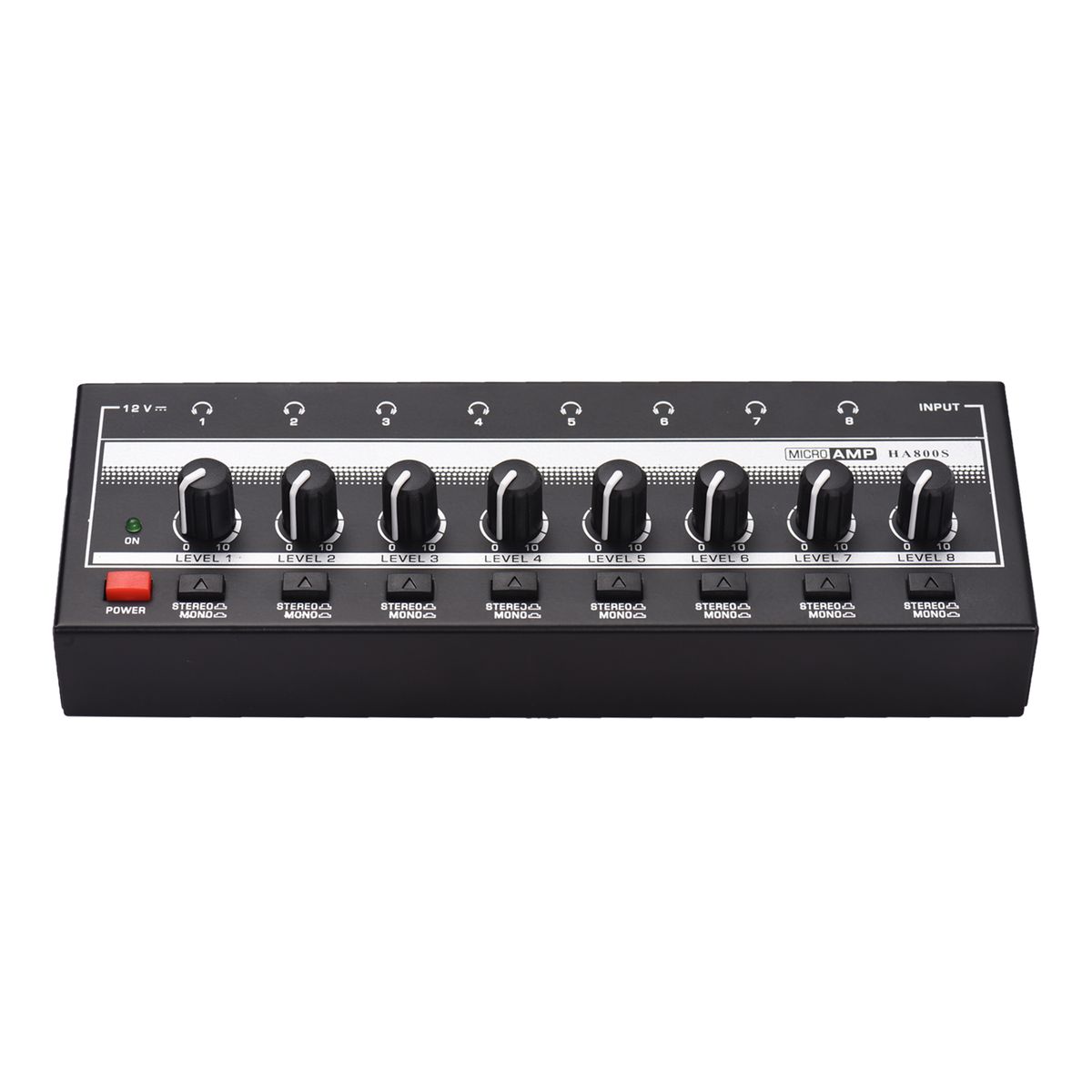

HA800S Headphone Amplifier 8 Channels Mono/Stereo Metal

This 8-channel stereo headphone amplifier is designed for use with all types of headphones and therefore provides maximum flexibility. Its high- stereo amplifiers guarantee the highest sonic quality even at maximum volume. The ultra low-noise 4580 operational amplifiers ensure outstanding audio performance.



Features:

Ultra compact stereo headphone amplifier for studio and stage applications.

Equipped with 8 headphone output channels and 1 input channel.

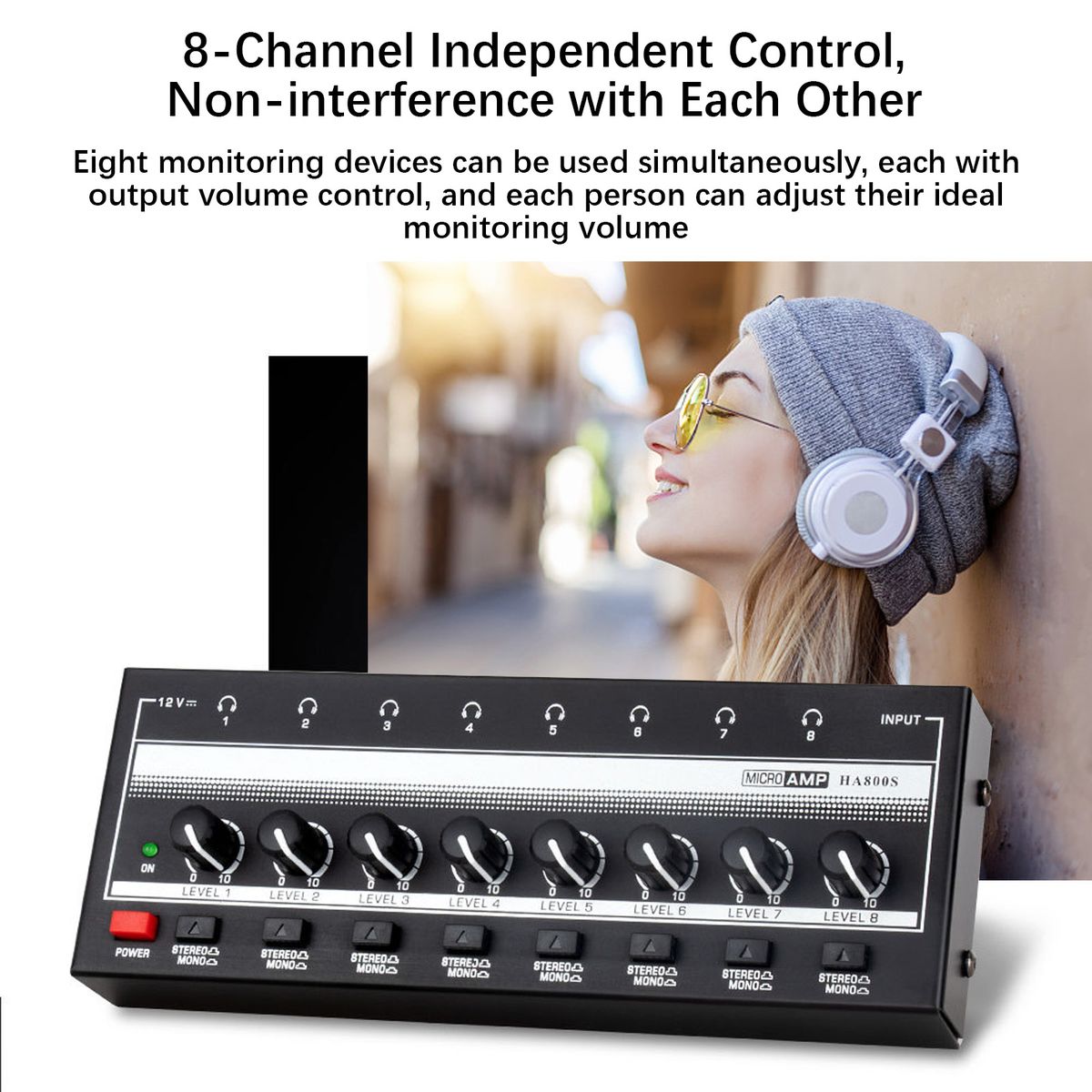

The volume of each output channel can be independently controlled.

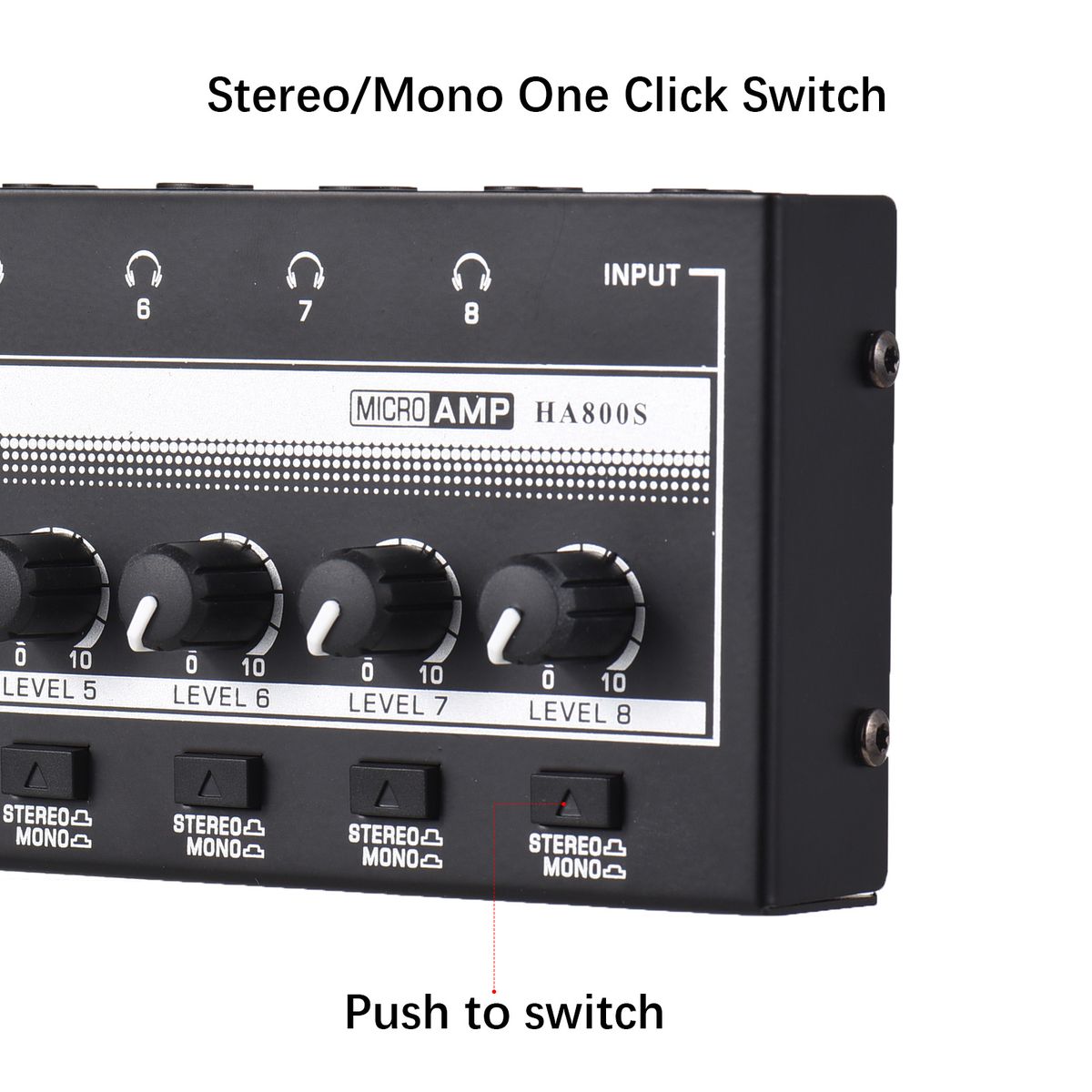

The volume of each output channel can be switched between single and dual channels.

Even at maximum volume, it can provide the highest sound quality for each earphone.

Ultra low noise 4580 operational amplifier with outstanding performance.

Equipped with a 12V adapter.



Specifications:

Plug: EU / US (Optional)

Input: 100-240VAC, 50/60Hz

Output: 12V, 2.5A

Line Input:

Type: 1/8" TS connector, stereo

Impedance: 100kΩ

Max. Input Level: +15dBu

Headphone Output:

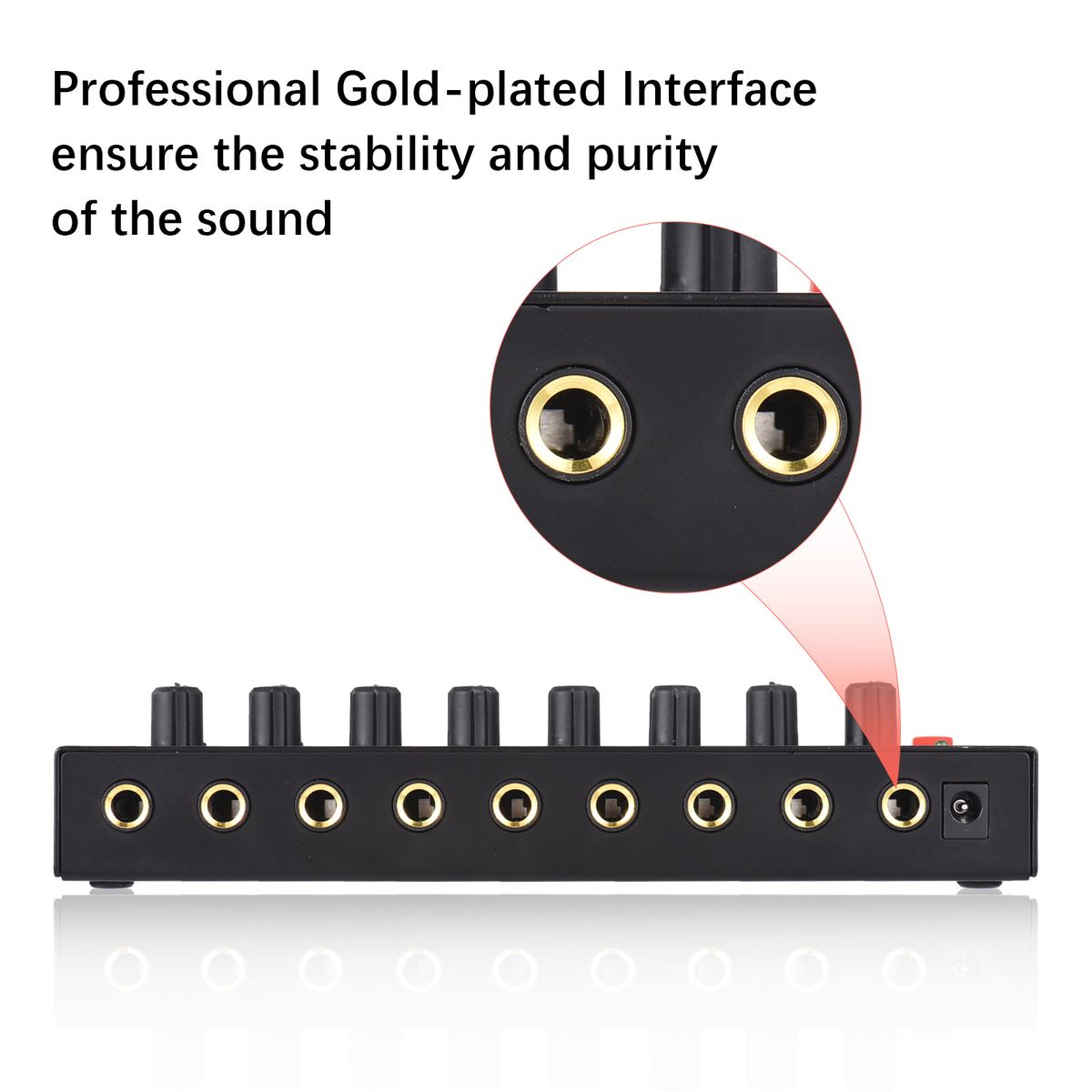

Type: 1/8" TS connector, stereo

Impedance: Approx. 80Ω

Max. Output Level: Approx. 40mW in 100Ω

Material: Metal

Item Size: 198 * 72 * 26mm / 7.80 * 2.83 * 1.02in

Item Weight: 427g / 15.06oz

Package Weight: 640g / 22.57oz

Package Size: 24 * 17.5 * 6cm / 9.45 * 6.10 * 2.36in

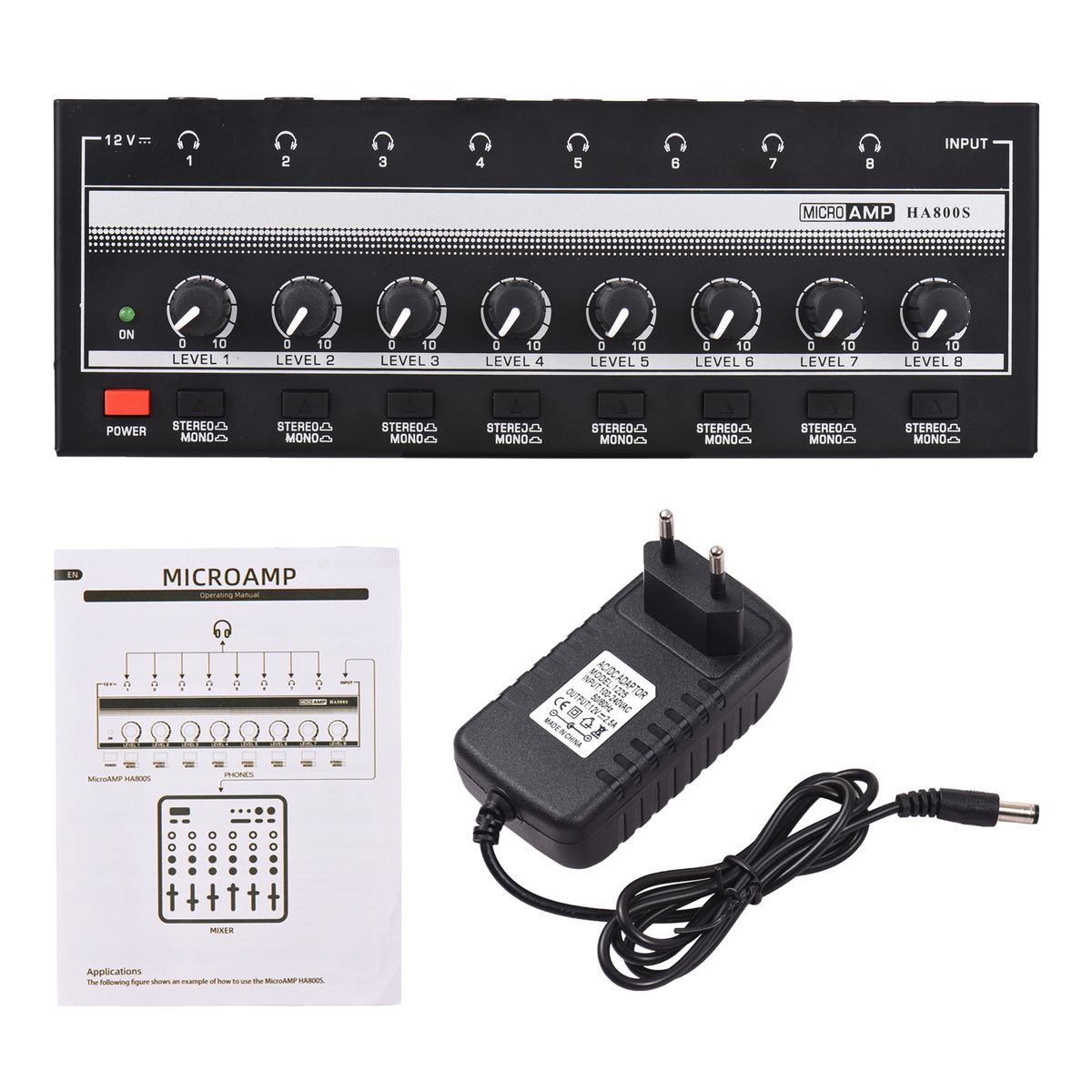

Package List:

1 * Amplifier

1 * Adapter

1 * Manual (English)

Key Features

Ultra compact stereo headphone amplifier for studio and stage applications.
Equipped with 8 headphone output channels and 1 input channel.
The volume of each output channel can be independently controlled.
The volume of each output channel can be switched between single and dual channels.
Even at maximum volume, it can provide the highest sound quality for each earphone.
Ultra low noise 4580 operational amplifier with outstanding performance.

What's In the Box

1 x Amplifier,1 x Adapter,1 x Manual (English)
