433Mhz DC 12V 6CH Channel Universal 10A Relay Wireless RF

Features:

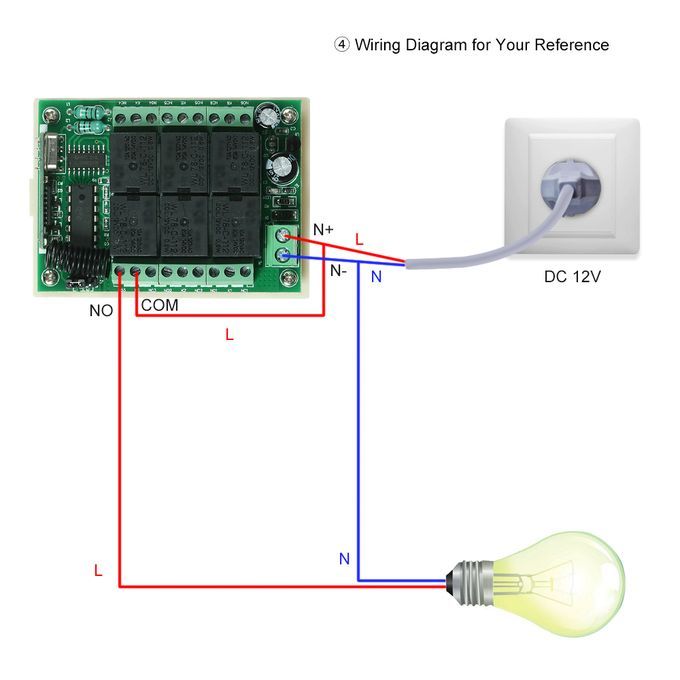

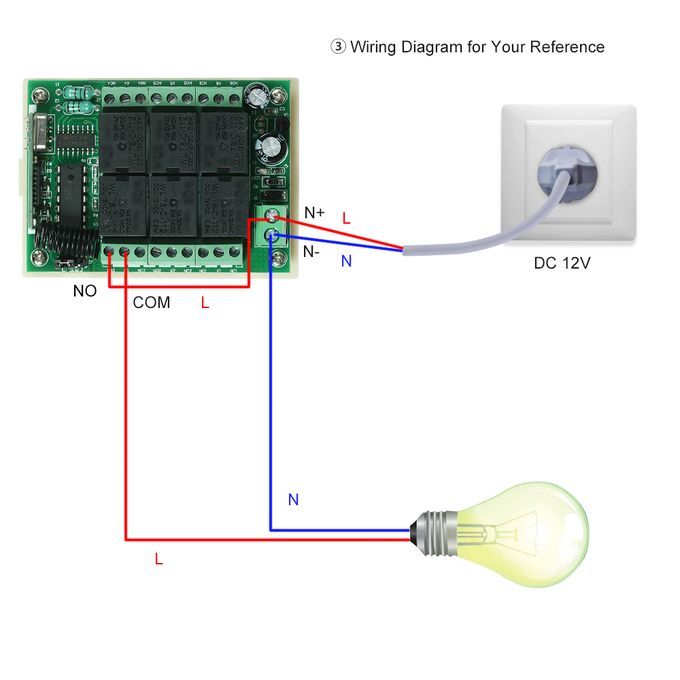

*Very convenient to use, simple wiring diagram connection way. RF Remote Control Switch, can through walls.

*Support remote control up to 16 pieces. It can connect to the electronic control lock, intercom doorbell, garage door, light, electric curtain, household appliances, motor control, lifting equipment, security system, etc. So that it can remote unlock the door, close the light, open or close the curtain,etc.

*Low consumption, stable performance. Super small body, occupying less space.

*The working mode can be changed by yourself: you can switch to Momentary, Latched dual modes as you need.

*Pair with Fixed Code: it can work with any remote control with the same frequency (433MHz 2262 Chip), so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)





Receiver Specifications:

Channels: 6

Input : DC12V

Standby Current: ≤10mA

Output Current: ≤10A

RF Frequency: 433MHz

Output : DC/AC Optional

RF working mode: superheterodyne reception

Coded System: Fixed Code (2262 Chip)

Decoding mode: 2272 Chip decoding

Receive sensitivity: -105dbm

Remote control storage: up to 16 PCS

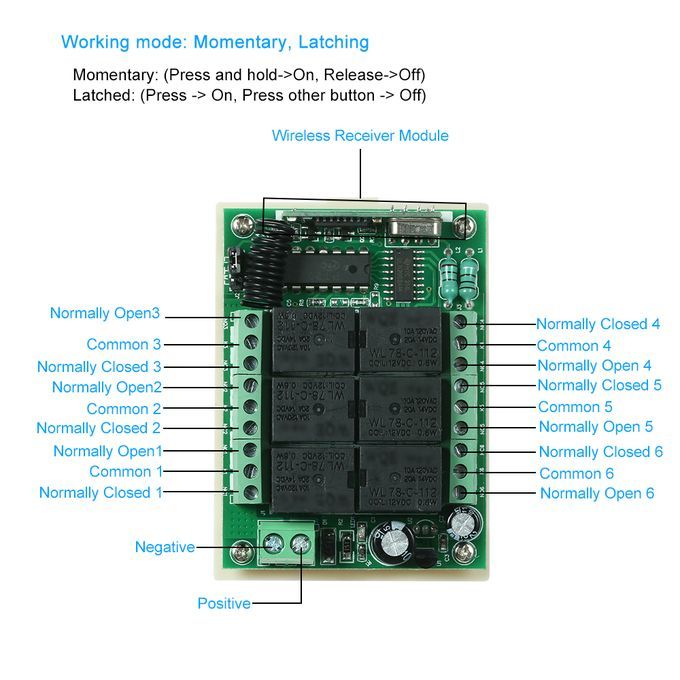

Working mode: Momentary, Latched

Wiring type: fixed terminal

Output Terminal: NO , NC , COM

Receiver Board Size: Approx. 7 x 5 x 1.8cm / (2.7 x 2 x 0.7”)

Fuse Box Size: Approx. 7.5x 5.5 x 2.8cm / (2.9 x 2.2 x 1.1”)

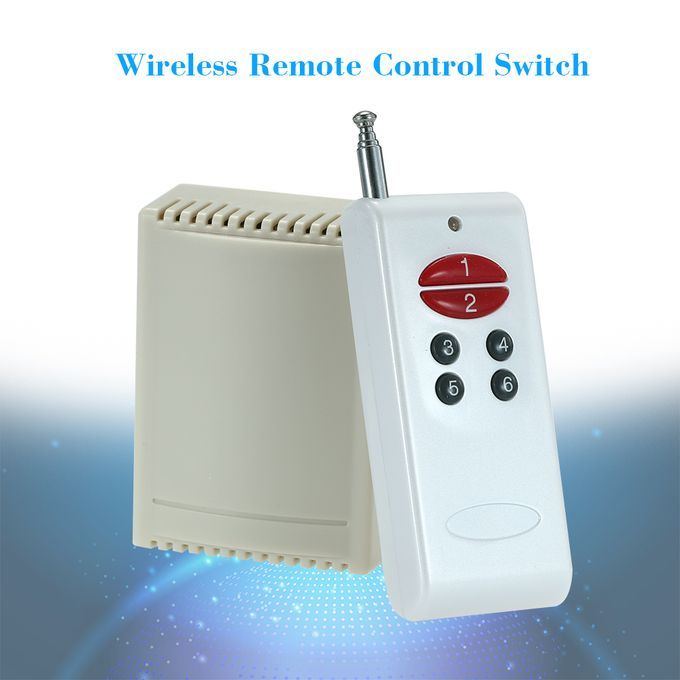

Remote Control Specifications:

Frequency: 433MHz 2262 Chip

Range: >1000m (open area)

Battery: 1*12V 23A (included)

Working Current: ≤15mA

Shock Resistance: 4.7

Quantity: 1PCS

Remote Control Size/Per: 10.1 x 3.8 x 1.7cm / (4 x 1.5 x 0.7”)





Package Information:

Package Size: Approx. 17 * 11 * 3.5cm / 6.7 * 4.3 * 1.4in

Package Weight: Approx. 124g / 4.4oz

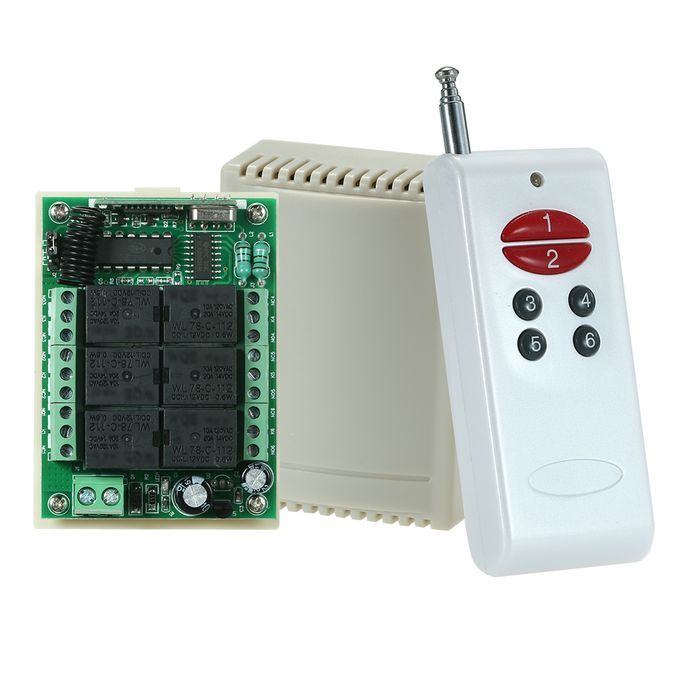

Package List:

1* Receiver Board

1* Fuse Box

1* Remote Control
